$57.00 – $135.00

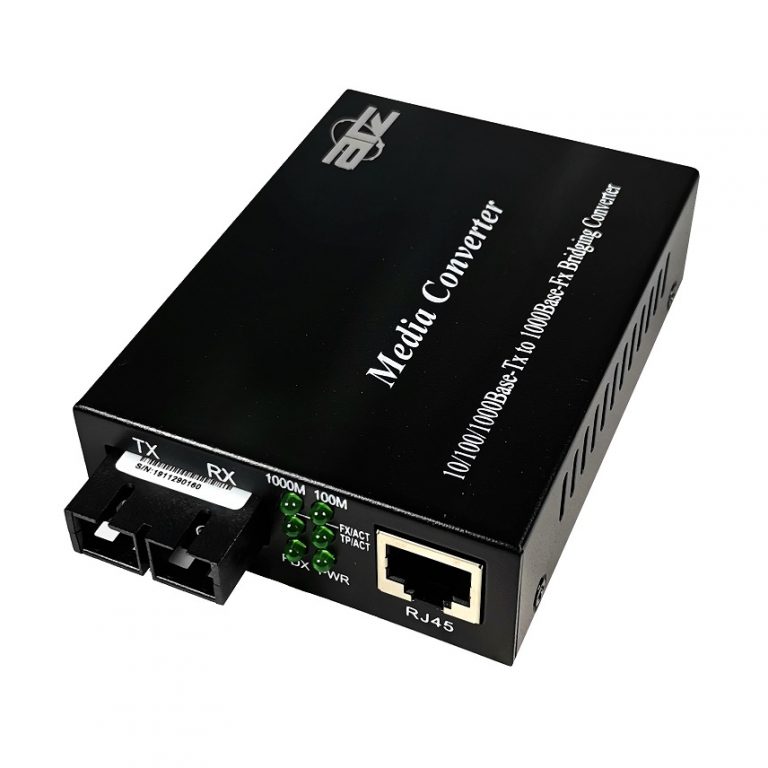

10/100/1000M Singlemode Gigabit Ethernet Media Converter, Dual Fiber/SC (20KM/40KM/60KM/80KM)
Description
10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX. It inter- converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. The network transmission distance is 550m/2km/20km/40km/60km/80km via fiber optical cables of fiber size: 62.5/125µm, 50/125µm, 9/125µm. It supports transmission in multi-mode dual fiber; single-mode dual fiber, single-mode single fiber.
Features:
- Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX/LX
- Supporting full-duplex and half-duplex and auto-negotiation
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
- Supporting STP to form a redundant network
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Standard
- IEEE802.3ab 1000Base-T,
- IEEE802.3z 1000Base-SX/LX, Gigabit Ethernet
- IEEE802.1qVLAN, IEEE802.1p QoS
- IEEE802.1d Spanning Tree
Port
- One RJ45 connector: connect to STP/UTP category-5E/6 twisted pair
- Dual fiber port: – Multi-mode SC (fiber size: 50,62.5/125µm)
– Single mode SC/FC (fiber size: 9/125µm)
Transmission Distance
- Dual-fiber multi-mode: 220m (62.5/125µm)/550m (50/125µm)
- Dual-fiber single-mode: 20/40/60/80Km
LED Indicator
- PWR (power supply), FX LINK (optical link action)
- TP LINK1000 (twisted pair link1000M)
- TP LINK100 (twisted pair link 100M)
- TP ACT (twisted pair packet forwarding)
Power Supply
- Power:AC220 0.5A/DC-48 (built-in)
- Power consumption:5W
Exchange Attribute
- Wavelength: 850nm/1310nm/1550nm
- Delay <10us
- BER <10-9
- MTBF :100,000 hours
- Conversion means: Media Conversion
Dimension
- 26mm (H) * 70mm (W) * 94 mm (D) (external power supply)
- 30mm (H) * 110mm (W) * 140 mm (D) (internal power supply)
Environment
- Operating temperature: -10~55ºC
- Operating humidity:5%~90%
- Maintaining temperature: -40~70ºC
- Relative Humidity: 5%~90 %( no condensation)
