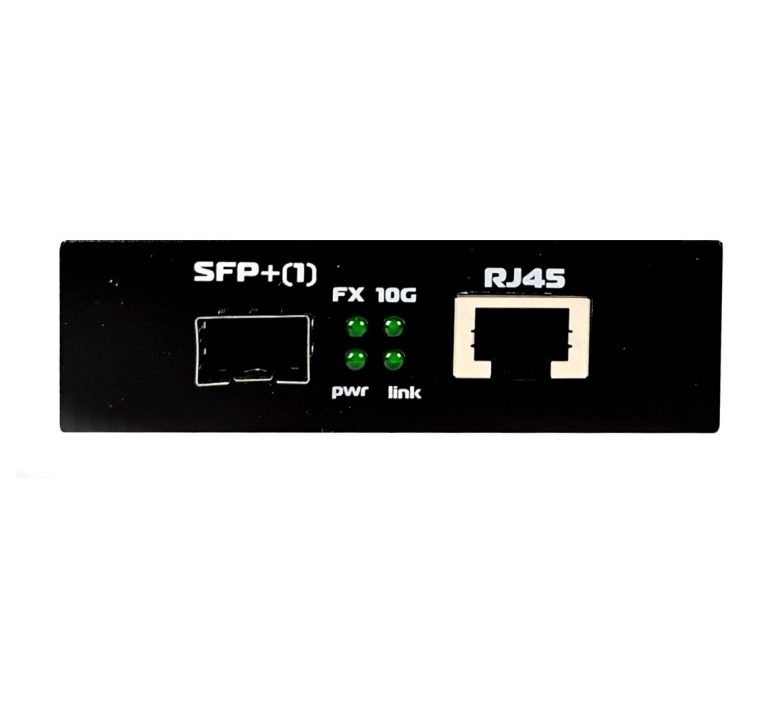

ATZ FO-MC-SFP+_1_web
SKU: ATZ FO-MC-SFP+ Categories: , , ,

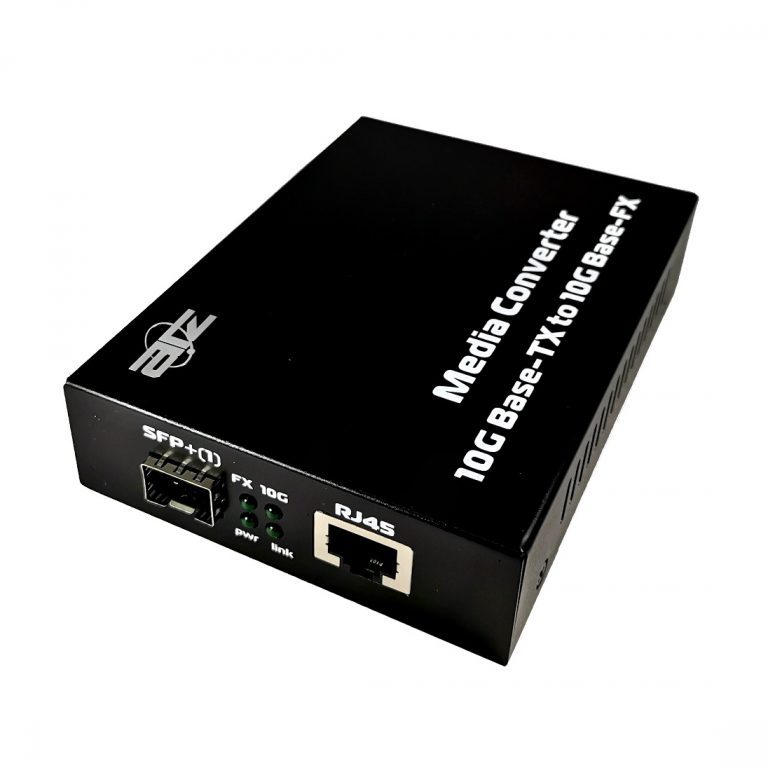

ATZ FO-MC-SFP+

$624.00

10G Ethernet to fiber media converter with 1 x 10G SFP+ Slot (w/o SFP+ transceiver)

ATZ-FO-MC-SFP.pdf
Add to Wishlist
Add to Compare
Share it:

The ATZ FO-MC-SFP+ is a copper to fiber 10Gbps Ethernet media converter based on IEEE 802.3an and IEEE 802.3ae. It equips one 10GBase-T RJ45 port and one pluggable transceiver slot. The ATZ FO-MC-SFP+ brings you the best and simplest solution for the 10G Ethernet conversion between copper wire and fiber. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly. With internal power unit, it provides good stability and reliability

Features

  • Transparent Link Pass Through
  • Auto-Negotiation (802.3u)
  • AutoCross™
  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • Support ITUT prescribed DWDM/CWDM wavelength
  • Support hot plugging
  • Full State Led display
  • Easy installation
Weight 0.1 kg
Dimensions 10 x 10 x 10 cm
Standards IEEE802.3, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3az
Data Rate 10 Gbps
Fiber Port supported standards 10GBase-SR

10GBase-LRM

10GBase-LR

10GBase-ER

10GBase-ZR

direct attached 10G copper
Cable assemblies both Class-I and Class-II fiber

SFP+ modules

SFP modules supporting WDM technology
Fiber Port transmission distance Up to 80Km
Copper Port supported 100m on Cat6a or higher UTP
Status LEDs 1G: Lit when FX/TP speed is 1000Mbps

10G: Lit when FX/TP speed is 10G bps

Link: Lit when FX/TP connection is good.

Blinks: when FX/TP data is transmitting.

PWR:Lit when +5V power is coming up
Dimensions(WxDxH) mm 30×100×140mm
Power External power: input 85~265VAC, 50/60Hz

Output: 5V 3A
Power Consumption 10 watts(without module)
Copper Port supported 100m on Cat6a or higher UTP
Environment Operating Temp: 0 – 50℃
Storage Temp: -20 to +70℃
Operating Humidity: 5% to 95% (non condensing)
Altitude: 0 – 10,000 feet
Shipping Weight 500g
MTBF w/Power Supply Greater than 41,660 hours (MIL-HDBK-217F)
Greater than 114,580 hours
MTBF w/o Power Supply Greater than 250,000 hours (MIL-HDBK-217F)
Greater than 687,000 hours
Regulatory Compliance FCC Class A, EN55022 Class A, EN55024, CE Mark
Warranty 3years
