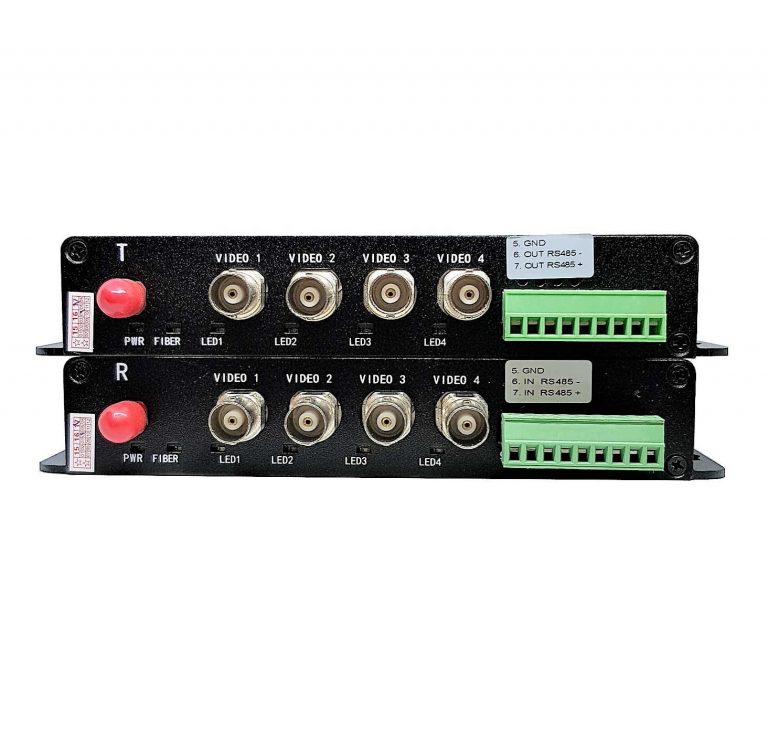

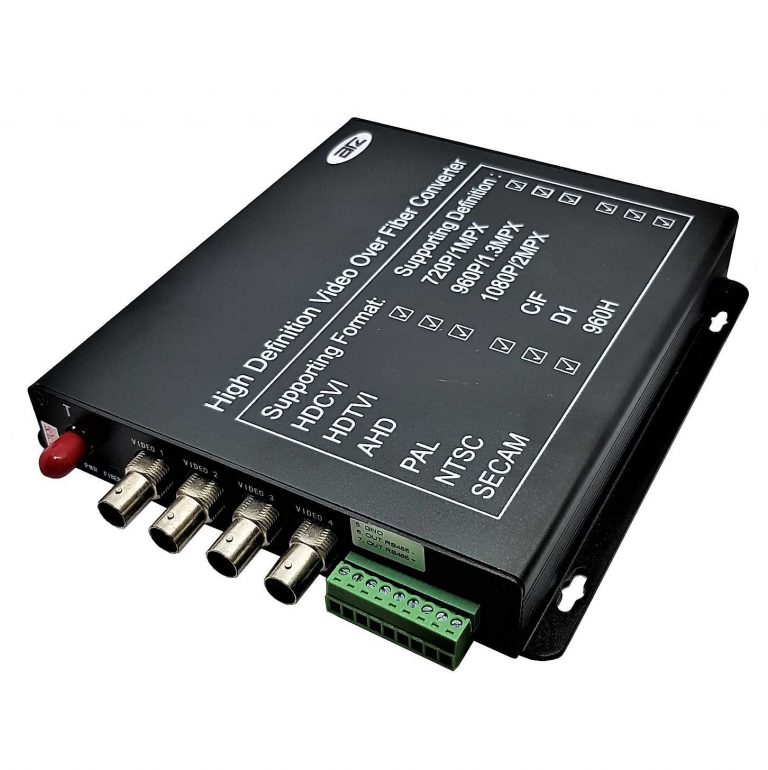

Our AHD/TVI /CVI Video over Fiber Converters can simultaneously transmit 1 to 16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H、AHD-M、AHD-L. Lossless non-compression real time transmission.
Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.
FEATURES:
Analog HD video 1080P (1920×1080) / 960P (1280 x 960) / 720P (1280 x 720) AHD / HD-TVI / HD-CVI
Automatic compatible PAL, NTSC and SECAM video system
10-bit digital code and non-compression type video transmission .
Power supply and other parameter state indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
Special ASIC design .
It is plug-and-play and supports hot-swap, convenient for fixing without modulation.
Can be installed in 19 inch rack-mounted chassis(2U/4U).
PRODUCT APPLICATION SCOPE
Public Security Surveillance
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance
Coliseum using for TV-live ,audio transmission
