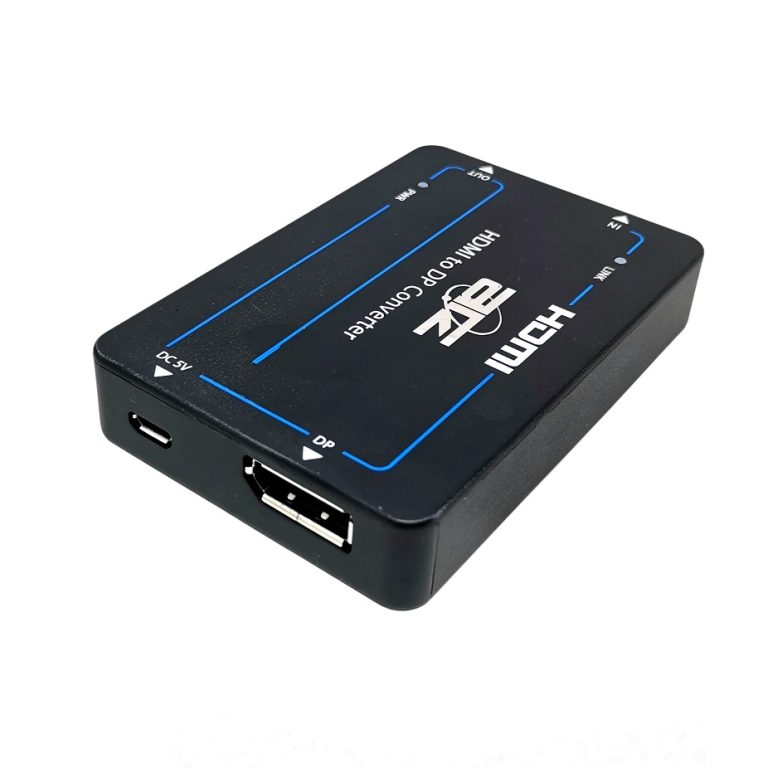

HDMI2.0b to DP1.2 Converter 18Gbps 4K2K@60Hz 4:4:4 w/HDMI Loopout
Description
This HDMI to DP Converter has 1x HDMI INPUT, 1x HDMI LOOPOUT and 1x DP OUTPUT, which can convert HDMI signal to DP signal with video resolution up to 4K2K@60Hz 4:4:4. The DP port supports DP1.2.
This converter can be widely used in video conference, multi-media broadcasting and other related occasions.
Features:
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant
- Support 18Gbps HDMI video bandwidth
- Video resolution up to 4K@60Hz 4:4:4
- Displayport output supports DP1.2
- Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, DTS-HD Master Audio.
- Compact in design, plug and play.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | HDMI input: Up to 4K@60Hz 4:4:4 HDMI Loop out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz DP output: 480p60Hz, 576p50Hz~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Audio Format | Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, DTS-HD Master Audio |
| Connection | |
| Input | 1×HDMI IN [Type A, 19-pin female] |
| Outputs | 1×HDMI OUT [Type A, 19-pin female] 1×DP [20-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 90mm[W] × 60mm[D] × 16mm[H] |
| Weight | 47g |
| Power Supply | USB 5V / 1A |
| Power Consumption | 3.2W (Max) |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
