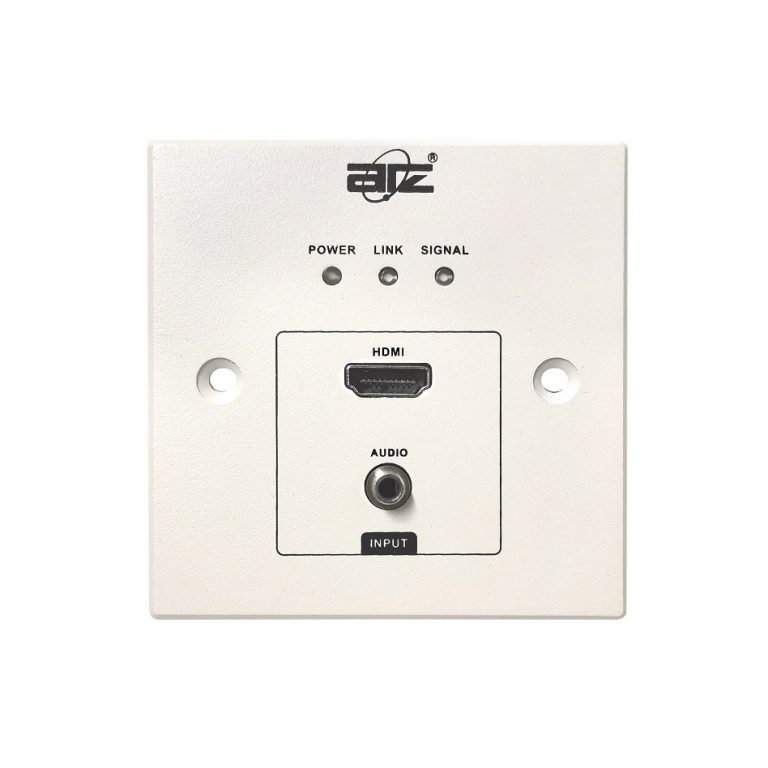

ATZ HDBT-E100-TW-A is a newly developed HDBaseT transmitter. It supports both input EDID management (with 7 built-in EDIDs), and external display’s EDID. It supports 1080p60Hz up to 100m, 4K30Hz/ 4K60Hz(4:2:0) up to 70m over Cat5E/6 cable.

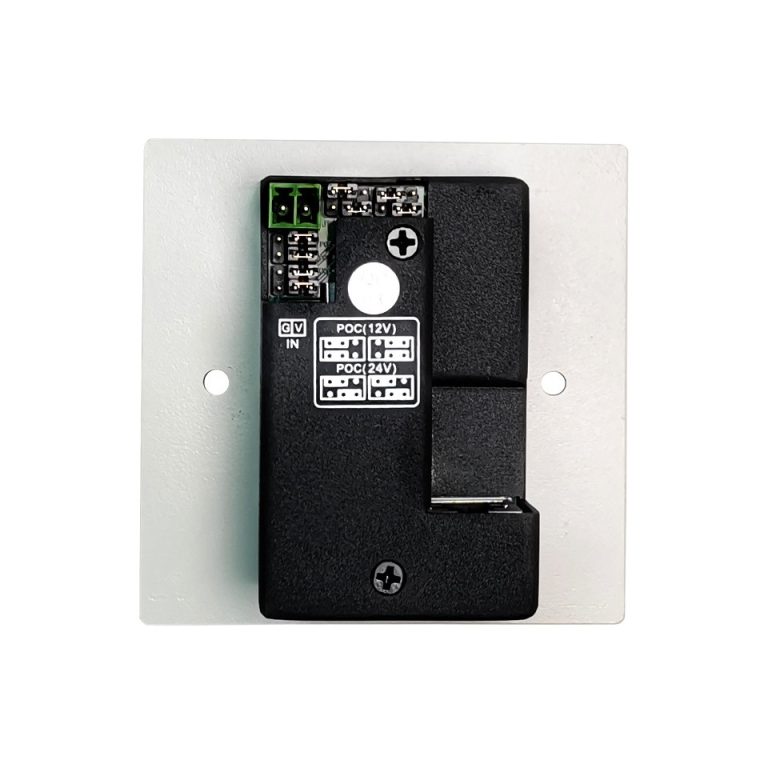

With POC (power over cable) function, user only needs to supply power to either HDBaseT Receiver or Transmitter. Power can be jumper select to either 12V or 24V as required. It supports audio embedding function to alternate between HDMI input native audio and external audio input. This product is widely used in video conferencing, large-screen display, multimedia display control systems, medical image display, projection system; and suitable for long-distance video and information signage systems at airports, railway stations, and sports centers.
Features:
- Support EDID management
- Support 1080P 3D, 4K30, 4K60 resolution
- Support audio embedding
- Support 2
- Transmission distance 1080P60 resolution at (320ft) 100m, 4K30, 4K60 resolution at (220ft) 70m
- Supports POC (Power Over Cable)
- LED working indicator
