ATZ HDBT-E100B-RB-AEL

Description

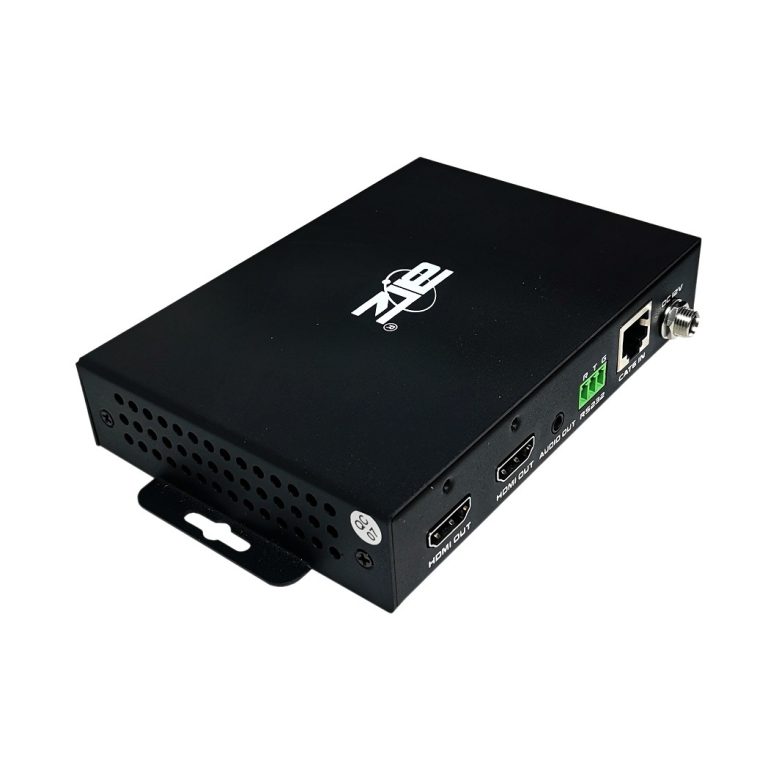

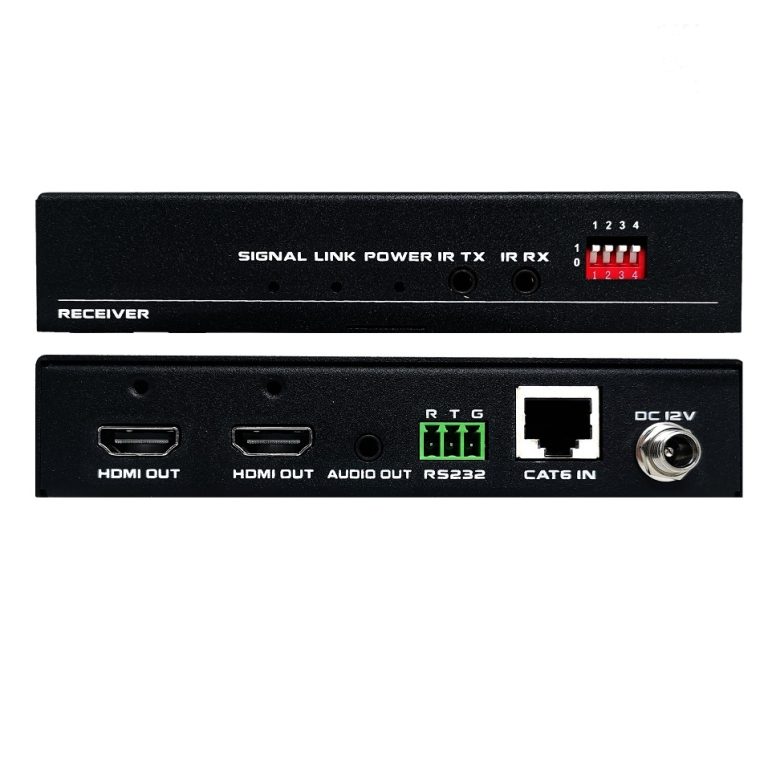

ATZ HDBT-E70B-RB-AEL is a HDBaseT technology Receiver Box. It supports no compression, no losses, no latency HDMI signal transmission. It will work well with other HDBaseT equipment. All the signals are transmitted by one single CAT5E/6/7 cable. For 1080P it support transmission distance of 320ft (100m), or 4K60Hz at 220ft (70m). Compatible with all the HDTV resolutions, HDMI2.0 protocol. It also support bi-directional RS232 and IR transmission and realize the long distance control. Supports power over cable(POC), users only need to power one side; Supports 3.5mm Audio embedded and de-embedded function, for managing internal or external audio input and output. It supports EDID management, providing user flexibility to work with different displays. Support 1x HDMI loop-out for TX and 2x HDMI sync output for RX. So it can be efficiently deployed for use in media-conferencing room, school, government, cinema and other applications.

Features:

• Works with HDBaseT Transmitters to form an Extender Kit
• Support up to 320ft (70m) at 1080p, and up to 220ft (70m) at 4K60 over single Cat5E/6/7 cable.
• Highest resolutions supported at 4k60 4:4:4
• Equipped with EDID management capability
• Bidirectional IR/Serial control signal transmission
• Power over Cable (POC) locally powered over Cat5e/6 cable at either end
• Supports 7.1 DTS Master HD, Dolby True HD, Audio embedded and de-embedded
• Support 1 HDMI loop out (TX) and 2x HDMI sync output (RX)
