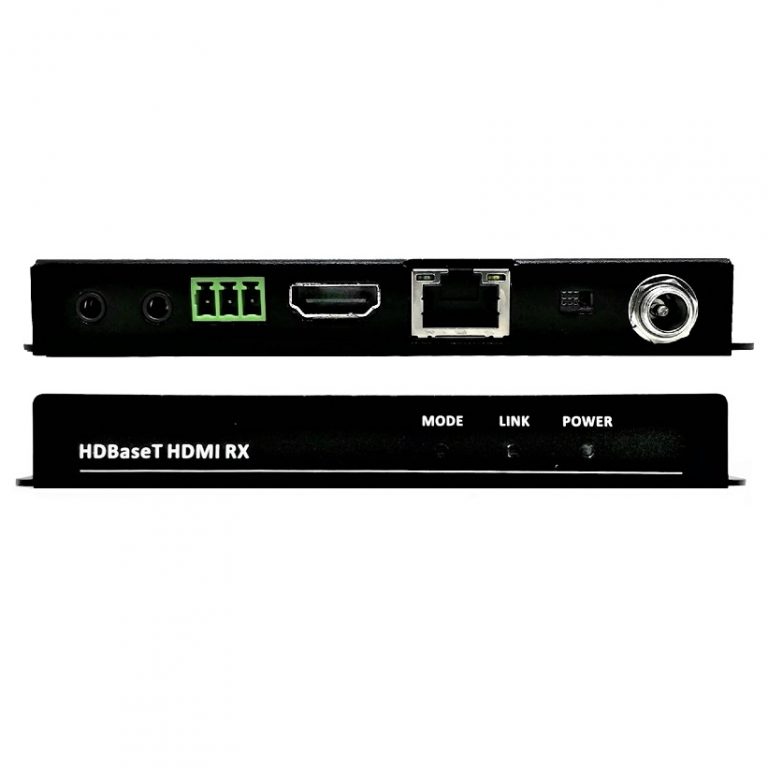

This receiver is using the HDBaseT technology, it supports no compression, no losses, no latency HDMI signal transmission. It can can work with other HDBaseT equipment, such as Sony HDBaseT projector. All the signals are transmitted by one single CAT5E/ CAT6/ CAT7 cable, for 1080P it can transmit to a distance of 70m, for 4K60Hz(4:2:0) it can up to 35m. Compatible with all the HDTV resolutions, HDCP2.2 protocol. It also supports bi-directional RS232 and IR transmission and realize the long distance control. Supports power over cable, users only need to power one side; It can be popularly used in media conferencing room, school, government, cinema and so on applications.
Features:
- Transmit highest quality audio and video, up to 70m for 1080p and up to 35m for 4K60(4:2:0) over Cat6/6a/7 cable
- Supports FULL HD, UHD, 3D, 4K60Hz
- HDCP2.2, HDMI2.0
- Bidirectional IR/Serial control signal transmission
- Power over Cable (POC) locally powered over Cat5e/6 cable at either end
- Supports 7.1 DTS Master HD, Dolby True HD,
- LED indicators, EDID pass-though
- Supports CEC control
