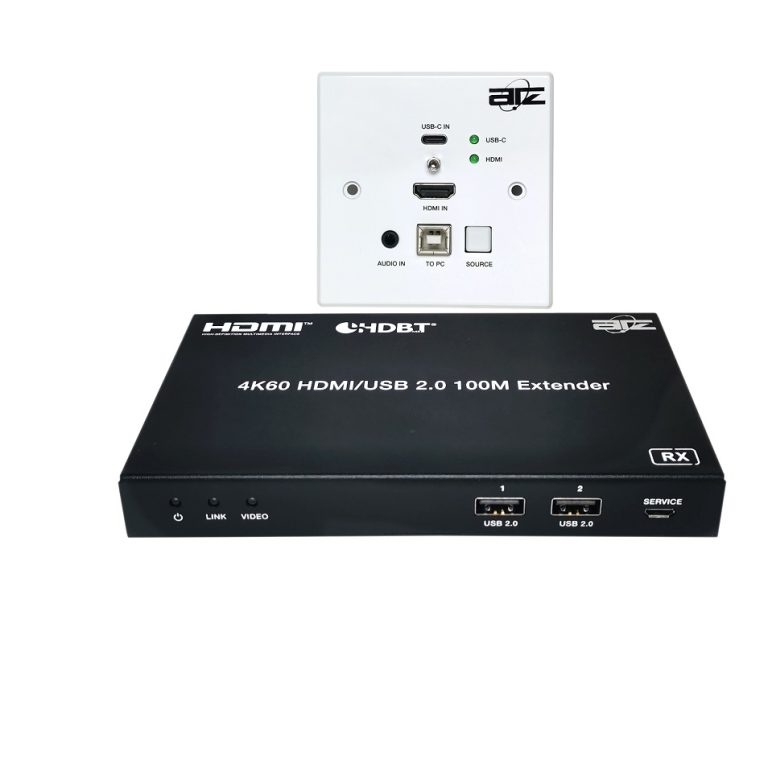

HDBaseT™ Extender Wall plate UK Style 18G 4K60 HDMI+USB-C, USB2.0, Audio, EDID w/Receiver box (100m)
Description
This 4K60 HDMI/USB-C 2×1 HDBT Wall-plate Transmitter support 1x HDMI input and 1x USB-C input within a standard 86mm×86mm wall box. It can transmit HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 to the distance up to 328ft/100m (HBT mode) or 492ft/150m (LRM mode). Video resolution is up to 4K2K@60Hz (4:4:4).
This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass- through function. It also supports POC function with POC control switch.
The Extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.
Features:
- HDMI 2.0b, HDCP 2.2/1.x and DP 1.2a compliant
- HDMI input supports 18Gbps video bandwidth USB input supports 5.4Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz (4:4:4)
- Up to 7.1 channels HD audio
- Input signal source selection supports button switching
- Built-in mode DIP switch for selecting the HBT mode or LRM mode
- HBT mode: Audio and video signals can be transmitted up to 328ft/100m for 4K60/4K30/1080P
- LRM mode: Audio and video signals can be transmitted up to 492ft/150m for 4K30/1080P
- Built-in EDID DIP switch supports intelligent EDID management
- Built-in audio DIP switch supports analog audio embedding
- Built-in POC switches, when both POC switches of TX and RX are turned on, the Extender supports bidirectional 24V POC function, that is, either
- TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack. (See the Description 1)
- Transmit bidirectional Infrared control signal together with the HDMI signal. (See the Description 2)
- IR IN is a 5V power supply level
- Transmit bidirectional RS-232 control signal together with the HDMI signal. (See the Description 3)
- The Receiver supports USB 2.0 signal transmission
- Standard 86mm×86mm wall box
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | HDMI: 18Gbps; USB-C：5.4Gbps |
| HDMI Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDMI Audio Formats | LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format) |
| Analog Audio Embedding | 48KHz |
| Transmission
Distance |
LRM mode: 492ft/150m (4K30/1080P) STD-HBT mode: 328ft/100m (4K60/4K30/1080P) |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDBaseT OUT [RJ45] Control: 1 x To PC [USB Type B] 1 x RS-232 [3pin-3.81mm Phoenix connector] 1 x IR IN [3pin-3.81mm Phoenix connector] 1 x IR OUT [2pin-3.81mm Phoenix connector] |
| Receiver | Input: 1 x HDBT IN [RJ45] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3pin-3.81mm Phoenix connector] Control: 2 x USB 2.0 [USB Type A] 1 x RS-232 [3pin-3.81mm Phoenix connector] 1 x IR IN [3pin-3.81mm Phoenix connector] 1 x IR OUT [2pin-3.81mm Phoenix connector] 1 x SERVICE [Micro USB] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Front panel: White; Rear case:Black |
| Dimensions | Transmitter: 86mm [W] x 86mm [D] x 38.5mm [H] Receiver: 157.2mm [W] x 88mm [D] x 20mm [H] |
| Weight | Transmitter: 234g; Receiver: 377g |
| Power Supply | 24V/1A (supporting bidirectional POC power supply) |
| Power Consumption | 12.48W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
