HDBaseT™ Extender 150m over Cat5e/Cat6 [TX/RX] 18Gbps 4K@60
Description
This 18Gbps HDMI Extender can extend high definition video / audio signal,RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

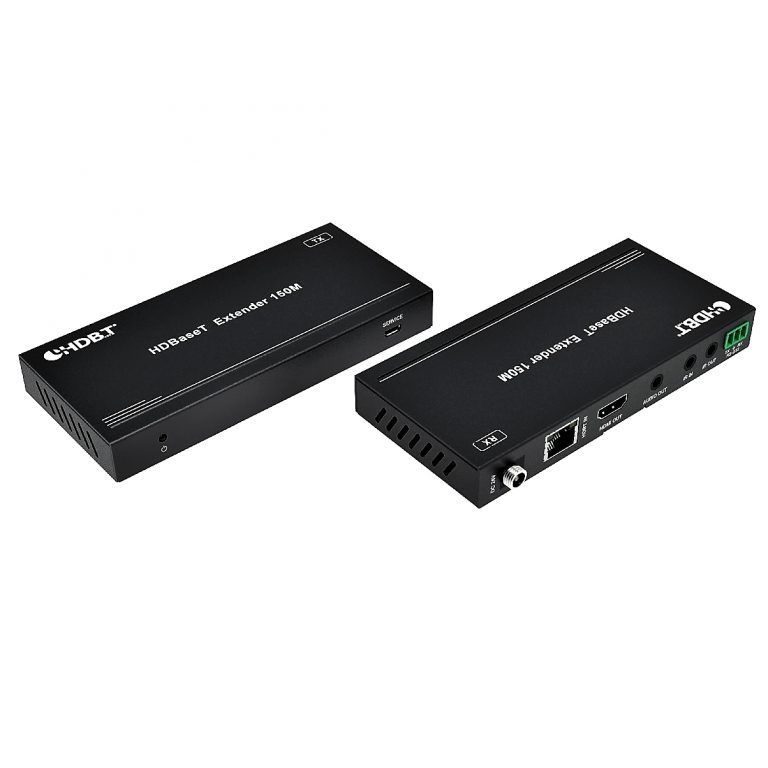

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features:
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal
- Support one HDMI loop output on the transmitter
- De-embeded audio to analog stereo output on receiver
- With bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 25 x 19 x 8 cm |
| Technical | |||
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K 50/60Hz 4:4:4 | ||
| 4K2K 50/60Hz 4:2:2 | |||
| 4K2K 50/60Hz 4:2:0 | |||
| 4K2K 30Hz 4:4:4 | |||
| 1080p, 1080i, 720p, 720i, 480p, 480i | |||
| All HDMI 3D TV formats | |||
| All PC resolutions including 1920 x 1200 | |||
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr | ||
| 4:2:2/4:2:0) | |||
| 8-bit (4K60Hz 4:4:4 ) | |||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby | ||
| TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS | |||
| HD Master, DTS HD-HRA, DTS-X | |||
| L/R Audio Formats | PCM 2.0 | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & | ||
| ±4kV (Contact discharge) | |||

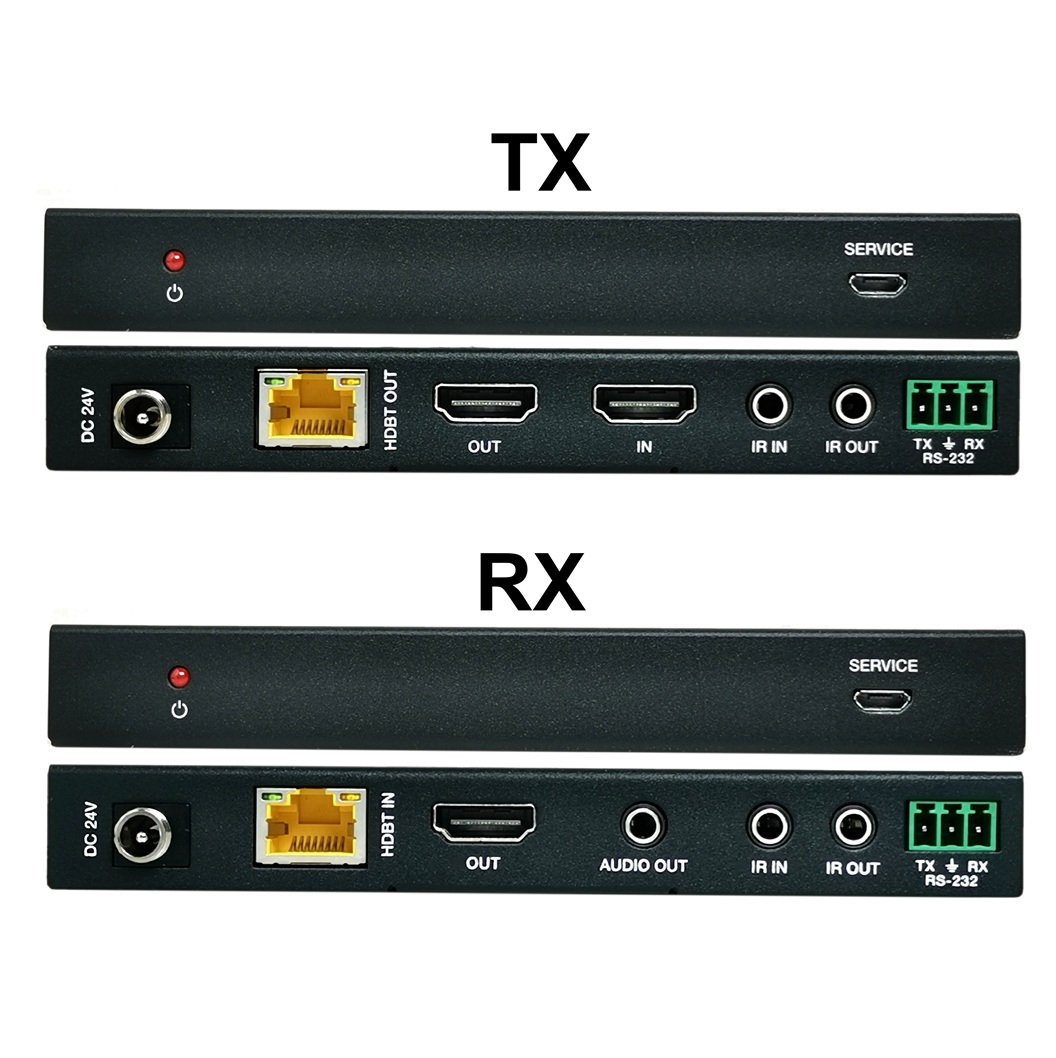

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] | ||
| Outputs: 1x HDMI Type A [19-pin female] | |||
| 1x HDBT OUT [RJ45, 8-pin female] | |||
| Control: 1x IR IN [3.5mm Stereo Mini-jack] | |||
| 1x IR OUT [3.5mm Stereo Mini-jack] | |||
| 1x RS-232 [Phoenix jack] | |||
| 1x SERVICE [Mini-USB, Update port] | |||
| Receiver | The use of “Premium High Speed HDMI” cable is highly recommended. | ||
| Inputs: 1x HDBT IN [RJ45, 8-pin female] | |||
| Outputs: 1x HDMI Type A [19-pin female] | |||
| 1x AUDIO OUT [3.5mm Stereo Mini-jack] | |||
| Control: 1x IR IN [3.5mm Stereo Mini-jack] | |||
| 1x IR OUT [3.5mm Stereo Mini-jack] | |||
| 1x RS-232 [Phoenix jack] | |||
| 1x SERVICE [Mini-USB, Update port] | |||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: | ||
| 140mm [W] x 65mm [D] x 18mm [H] | |||
| Weight | Transmitter: 160g, Receiver: 155g | ||
| Power Supply | Input: AC 100 – 240V 50/60Hz | ||
| Output: DC 24V/1A (Locking connector) | |||
| Power Consumption | 9.36 W | ||
| Operating Temperature | 32 – 104°F / 0 – 40°C | ||
| Storage Temperature | -4 – 140°F / -20 – 60°C | ||
| Relative Humidity | 20 – 90% RH (no condensation) | ||
| Resolution / Distance | |||
| 4K2K | 394ft / 120M | ||
| 1080P | 492ft / 150M | ||
| Resolution /Cable Length | 4K60 – Meters | 4K30 – Meters | 1080P60 – Meters |
| HDMI IN / OUT | 5M | 10M | 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
