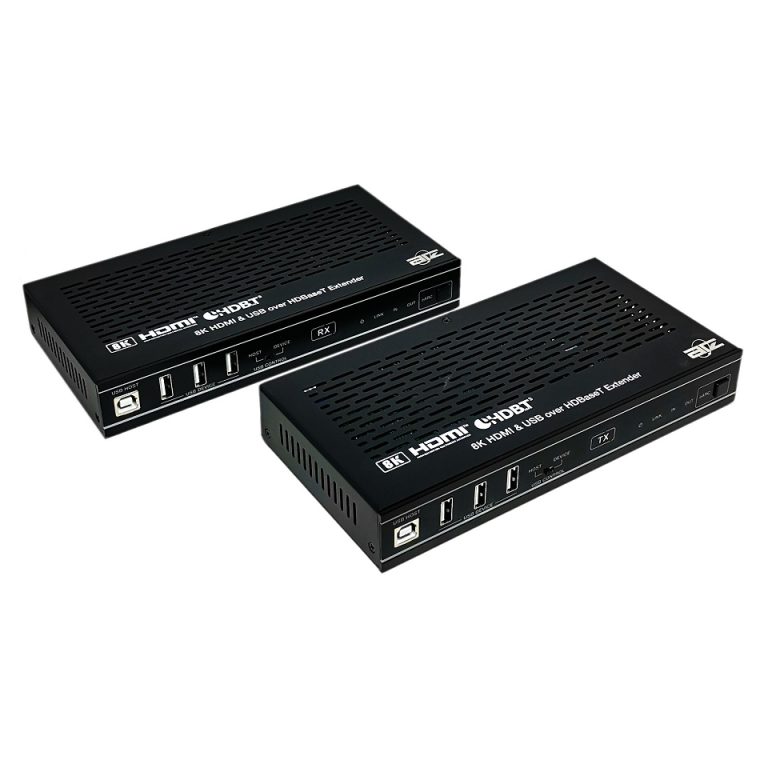

HDBaseT™ Extender over Cat6A/7 8K@60 HDMI 2.1/HDBaseT3.0+USB2.0+eARC+Ethernet (100m) [TX/RX]

Compare
Categories: ,

Description

This 8K HDMI & USB over HDBaseT Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT6A/7 cable. Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 4K60Hz 4:4:4. It supports eARC/ARC from RX’s HDMI output pass-through to TX’s HDMI input or de-embedding to TX’s HDMI output port. Besides, it supports USB 2.0 signal transmission (Host/Device is configurable) and bi- directional POC function.

The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.

Features:

  • HDMI 2.1, HDCP 2.3 and HDBaseT 3.0 compliant
  • Support up to 40Gbps FRL and 18Gbps TMDS video bandwidth
  • Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • Support all industry standard video resolutions including VGA-WUXGA and 480i-8K30
  • VRR, FVA, ALLM support
  • HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
  • HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Signal transmission distance can be extended up to 90m/295ft via a single CAT 6A/7 cable
  • Support eARC/ARC from RX to TX sound system
  • Advanced EDID management through EDID DIP switch
  • With CONFIG DIP switch, allowing the RS-232 serial port to feature different functions
  • Support USB2.0 transmission (with speeds up to 350Mbps), Host/Device is configurable
  • Bi-directional Ethernet (1Gb), analog audio, IR & RS-232 signal pass-through
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • Bi-directional 24V POC function
Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth Up to 40Gbps FRL and 18Gbps TMDS
Video Resolution Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
USB Bandwidth Up to 350Mbps
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit




Audio Formats

 HDMI: PCM2.0, LPCM5.1, LPCM7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K)(16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
Analog: PCM 2.0 48K
IR Level 5Vp-p/12Vp-p
IR Bandwidth 20K – 60KHz
Transmission Distance MAX: CAT6–60m/197ft CAT6A/7–90m/295ft
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

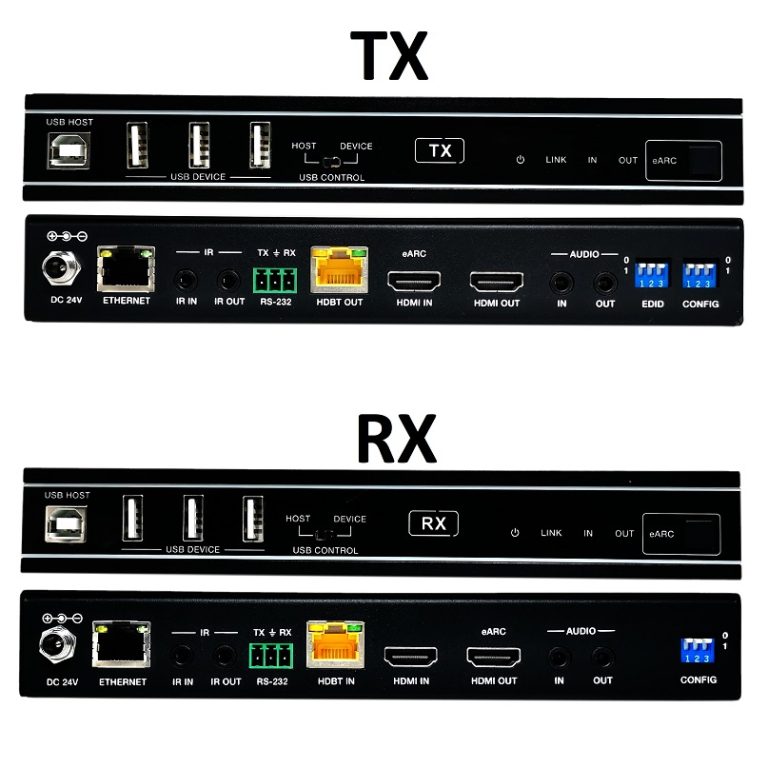

Connection
 Transmitter Input:
1 x HDMI IN [Type A, 19-pin female]
1 x AUDIO IN [3.5mm Stereo Mini-jack]
Output:
1 x HDMI OUT [Type A, 19-pin female]
1 x HDBT OUT [RJ45, 8-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x USB HOST [USB Type B]
3 x USB DEVICE [USB Type A]
1 x ETHERNET [RJ45]
 Receiver Input:
1 x HDMI IN [Type A, 19-pin female]
1 x HDBT IN [RJ45, 8-pin female]
1 x AUDIO IN [3.5mm Stereo Mini-jack]
Output:
1 x HDMI OUT [Type A, 19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Control:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x USB HOST [USB Type B]
3 x USB DEVICE [USB Type A]
1 x ETHERNET [RJ45]
Mechanical
Housing Front Panel — Aluminium Enclosure; Case — Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 200mm [W] x 100mm [D] x 30mm [H]
Weight Transmitter: 571g, Receiver: 571g
Power Supply Input: AC 100 – 240V 50/60Hz Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power Consumption Total power consumption: 20.4W (POC)
TX/RX Full load: 9.36W/9.84W; TX/RX no-load: 2.46W/3.36W
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
Resolution / Cable Length 8K30 –

Feet / Meters

 4K60 –

Feet / Meters

 4K24 –

Feet / Meters

 1080P60 –

Feet / Meters
HDMI IN / OUT 9.8ft / 3m 16ft / 5m 32ft / 10m 66ft / 20m
The use of ATZ “Premium High Speed HDMI” cable is highly recommended.
