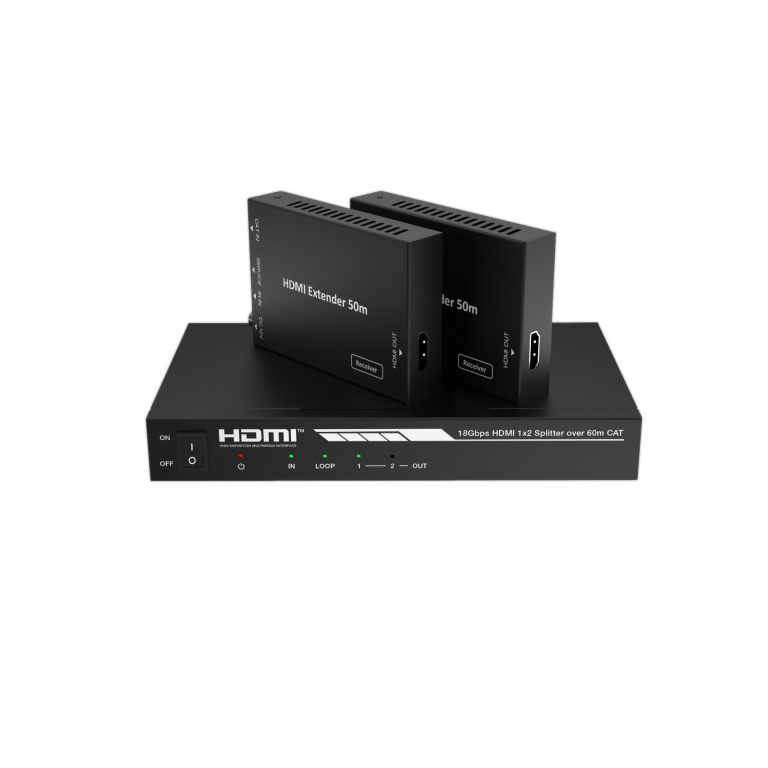

1×2 HDMI Splitter v2.0 18Gbps over Cat.6 (60m@1080P60/ 35m@4K60) c/w 2x Receivers
Description
The 18Gbps HDMI 1×2 Splitter can distribute 1 HDMI source signal to any 2 display devices, with video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 2 CAT outputs. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m meters at 4K2K@30Hz, or 197ft/60m meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management.
Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz 4:4:4
- Support HDR, HDR10+, HLG, Dolby Vision
- Up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs
- Support 20-60Hz IR control source equipment from RX side
- Advanced EDID management
- Support one-way PoC function (only from transmitter to receiver)
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 594MHz / 18Gbps |
| Video Resolution | Input: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Loop Out: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) 8-bit (4K2K@60Hz YUV 4:4:4) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDR | HDR10, HDR10+, HLG, Dolby Vision |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
| Coaxial Audio Formats | LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH |
| Analog Audio Formats | PCM 2.0CH |
| Extended Distance | 115ft/35m at 4K2K@60Hz (600M Bandwidth) 164ft/50m at 4K2K@30Hz (300M Bandwidth) 197ft/60m at 1080P@60Hz (148.5M Bandwidth) |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 1x HDMI LOOP OUT [Type A, 19-pin female] 2x CAT OUTPUT [RJ45, 8-pin female] 1x COAX AUDIO OUT [RCA] 1x L/R AUDIO OUT [3.5mm Stereo Mini-jack] |
| Control | 1x SERVICE [Micro USB, Update port] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 175mm (W) × 100mm (D) × 25mm (H) Receiver: 88mm (W) × 61mm (D) × 18mm (H) |
| Weight | Transmitter: 485g / Receiver:155g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 8.28W (Max.) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
