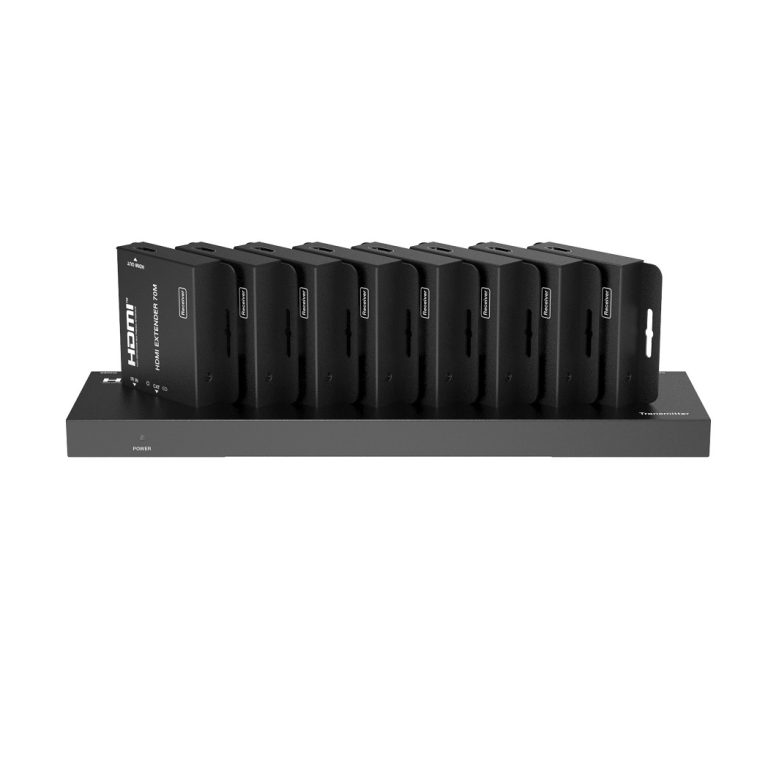

1×8 HDMI1.4 Splitter over Cat.6 Extender, w/8x receiver units (70m@1080P60/40m@4K30)
Description

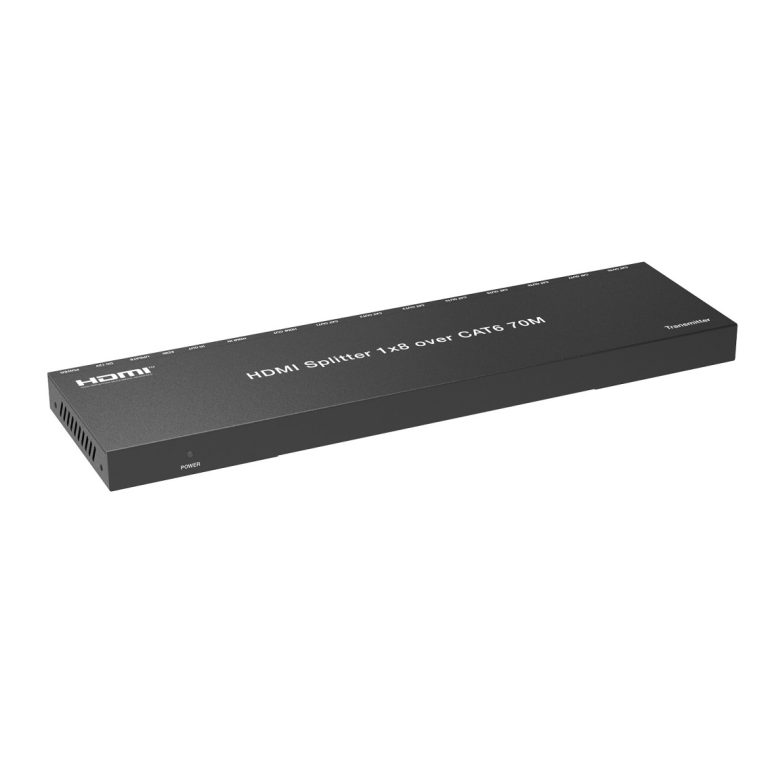

This HDMI 1×8 Splitter can distribute 1 HDMI source signal to any 8 display devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with1 HDMI input, 1 HDMI loop output and 8 CAT outputs. The HDMI signal transmission distance can be extended up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6 cable.The product supports one-way IR control signal pass-through and advanced EDID management. It also supports one-way POC function.
Features:
- HDMI 1.4 and HDCP 1.4 compliant
- Video resolution up to 4K2K@30Hz(4:4:4) 8-bit
- Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- Extend the signal transmission distance up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6 cable
- Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.
- Advanced EDID management
- Support 12V POC function (only from transmitter to receiver)
- Compact design for easy and flexible installation
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4：4：4) |
| Color Depth | 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) |
| Color Space | RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio |
| Transmission Distance | 1080P@60–70M, 4K30 –40M |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge) |
| Connection | |
|
Transmitter |
Input :1×HDMI IN [Type A, 19-pin female] Outputs:1×HDMI OUT [Type A, 19-pin female]8× CAT OUT [RJ45]Controls:1× IR OUT [3.5mm Stereo Mini-jack]1× EDID DIP switch [4-pin] 1× Update [Micro USB] |
|
Receiver |
Inputs : 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter: 295mm (W) × 82mm (D) × 18mm (H) Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H) |
| Weight | Transmitter: 628g; Receiver: 130g |
| Power Supply | 12V/2.5A DC Power
(US/EU standards, CE/FCC/RoHs certificated) |
| Power Consumption | 19.2W |
| Operation Temp. | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
