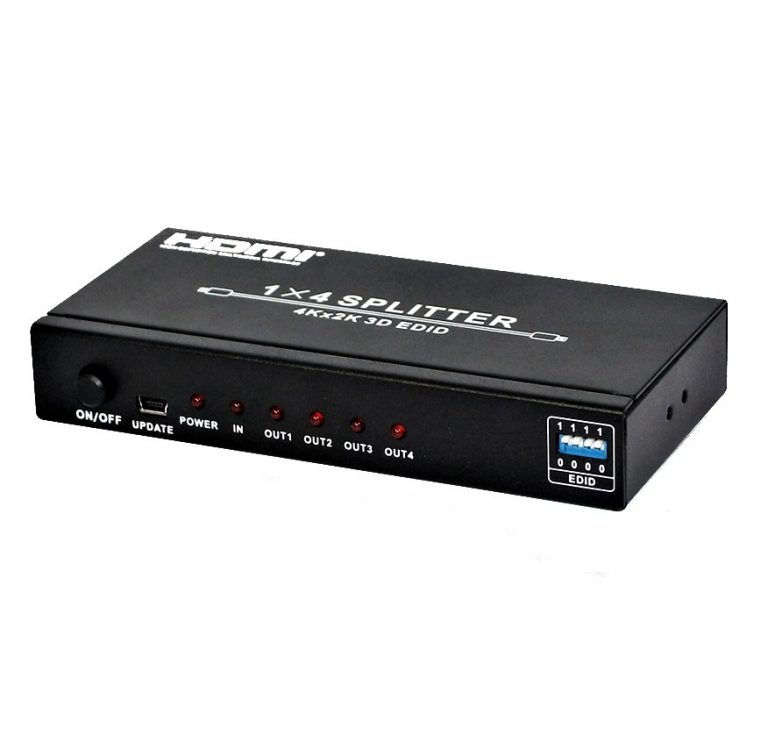

4 ports HDMI Splitter V1.4 W/EDID Selector
Description
1×4 HDMI splitter distributes1 HDMI source to 4 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc.
Features:
- 1 HDMI input signal split to 4 HDMI sink devices.
- HDCP 1.4 protocol compliant.
- 3D HDMI 1.4a video format support.
- 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
- Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
- Support deep color 30bit, 36bit, 48bit per pixel.
- Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 20 x 20 x 10 cm |
- Frequency Bandwidth: 2.97Gbps

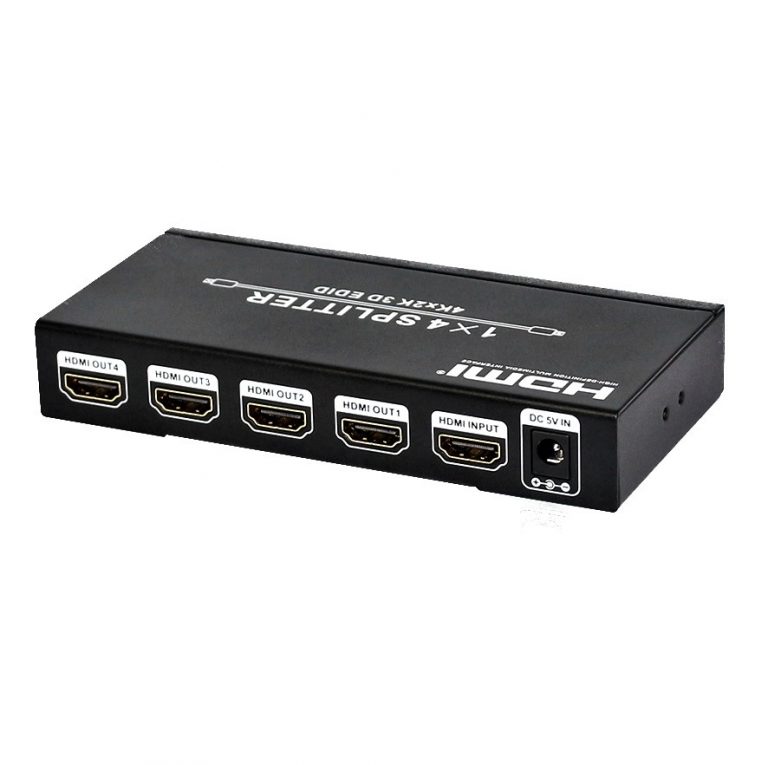

- HDMI Splitter Input Ports: 1 x HDMI Female input port
- HDMI Splitter Output Ports: 4 x HDMI Female output ports
- Power Supply: DC 5V 1A
- ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
- Dimensions (mm): 70(W) X 145 (D) X 25 (H)
- Weight: 300g
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20 ~ 90% RH (Non-condensing)
- Power Consumption (Max): 5W
