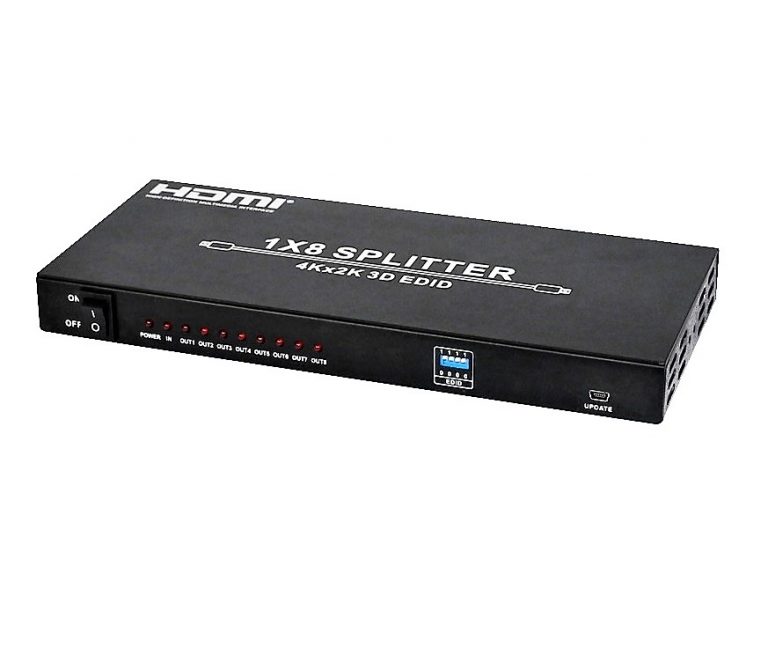

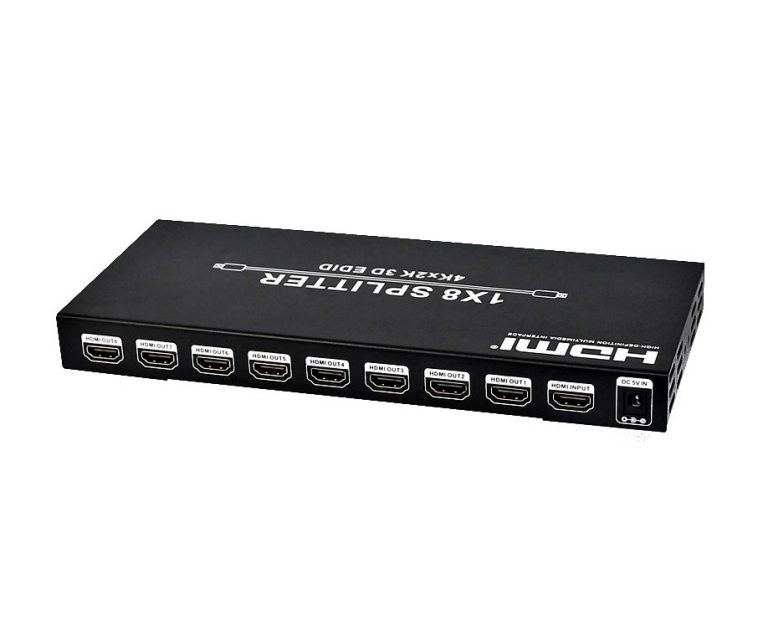

8 Ports HDMI Splitter V1.4 W/ EDID Selector
Description
1-in-8-out HDMI splitter distributes 1 HDMI source to 8 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc.
Features:
- HDMI input signal split to 8 HDMI sink devices
- HDCP 1.4 protocol compliant
- 3D HDMI 1.4a video format support
- 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock
- Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
- Support deep color 30bit, 36bit, 48bit per pixel
- Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
Additional information
| Weight | 1.35 kg |
|---|---|
| Dimensions | 25 x 25 x 10 cm |
-
- Frequency Bandwidth: 2.97Gbps
- Input Ports: 1 x HDMI Female Input Port
- Output Ports: 8 x HDMI Female Output Ports
- Power Supply: DC 5V 2A
- ESD Protection: Human Body Model: 8kV (air-gap discharge), 4kV (contact discharge)
- Dimensions (mm): 118 (W) x 250 (D) x 32 (H)
- Weight: 720g
- Operating Temperature: 0 Celsius to 40 Celsius
- Storage Temperature: -20 Celsius to 60 Celsius
- Relative Humidity: 20 to 90% RH (non-condensing)
- Power Consumption (Max): 10W
