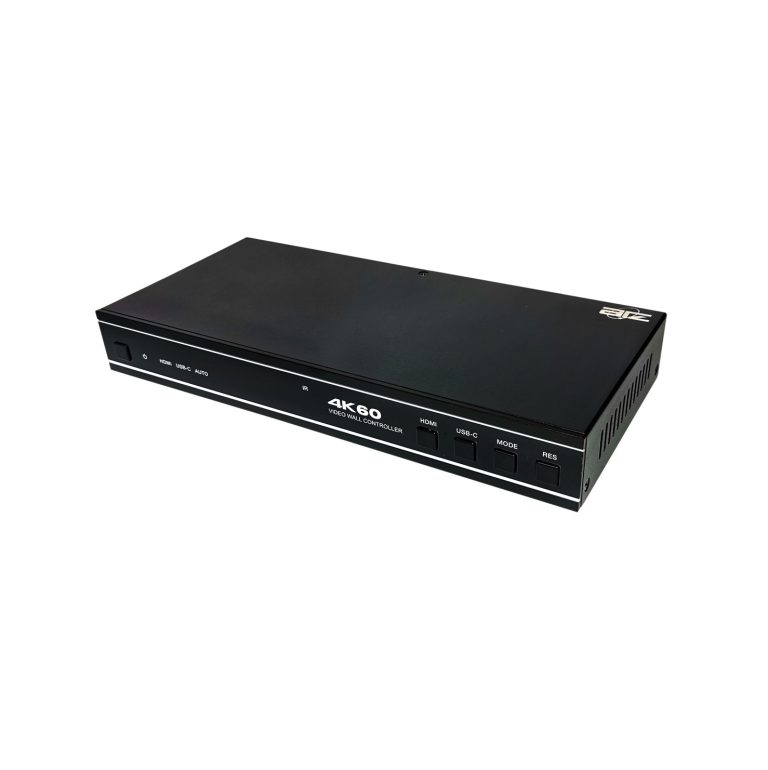

1×4 HDMI2.0 18G Video Wall Controller HDMI+USB-C input (2×2 wall)
Description
The 18Gbps 1×4 Video Wall Controller is designed to realize truely capturing, AD converting, routing, and distributing all-format signal to the video wall (LCD displays), while maintaining a true digital signal transmission. It features HDMI and USB-C input with resolution up to 4K@60 4:4:4, and 4 HDMI outputs. It supports multiple video wall modes to be set for video output.
Furthermore, optical audio and L/R analog audio de-embedding output are also supported.
It can be controlled via front panel buttons, IR remote and RS-232 commands.
Features:
- HDMI 2.0, HDCP 2.2 and DP1.2a compliant
- Support HDMI input and USB-C input, and the resolution is up to 4K@60Hz 4:4:4
- Support optical audio and L/R analog audio de-embedding output
- Support 8 video wall splicing modes: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2
- Support image 180° rotation, convenient for ceiling installation
- Support bezel adjustment for the splicing edge
- Advanced EDID management
- Control via front panel buttons, IR remote and RS-232 commands
- Simple plug and play, no drive and installation setting are required
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz |
||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | ||
| Color Depth | 8/10/12 bit | ||
| IR Level | 5Vp-p | ||
| IR Frequency | 38KHz | ||
| Audio Formats | HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0 |
||
| Audio Latency | No Latency | ||
| Video Latency | No Latency | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||

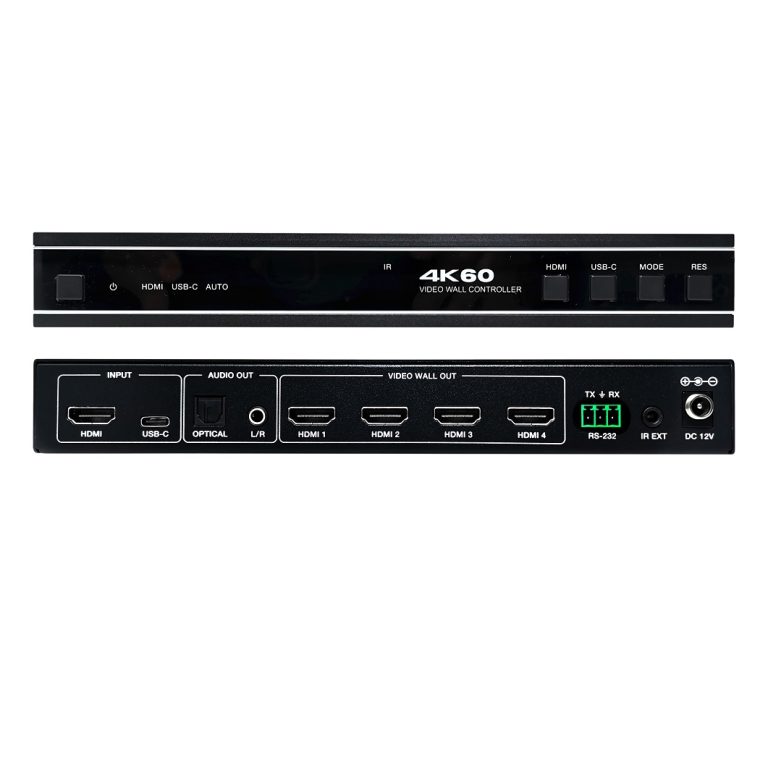

| Input ports | 1x HDMI INPUT [Type A, 19-pin female] 1x USB-C INPUT [Type C, 24-pin female] |
||
| Output ports | 4x HDMI OUTPUT [Type A, 19-pin female] 1x OPTICAL AUDIO OUT [S/PDIF] 1x L/R AUDIO OUT [RCA] |
||
| Control ports | 1x RS-232 [3pin-3.81mm phoenix connector] 1x IR EXT [3.5mm, Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 220mm [W] × 100mm [D] × 30mm [H] | ||
| Weight | 590g | ||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) | ||
| Power Consumption | 5.5W (Max) | ||
| Operating Temperature | 32 – 104°F / 0 – 40°C | ||
| Storage Temperature | -4 – 140°F / -20 – 60°C | ||
| Relative Humidity | 20 – 90% RH (no-condensing) | ||
| Video Resolution | 4K60 | 4K24 | 1080P60 |
| HDMI Cable Length (HDMI IN / OUT) |
8m/26ft | 10m/32ft | 15m/49ft |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
