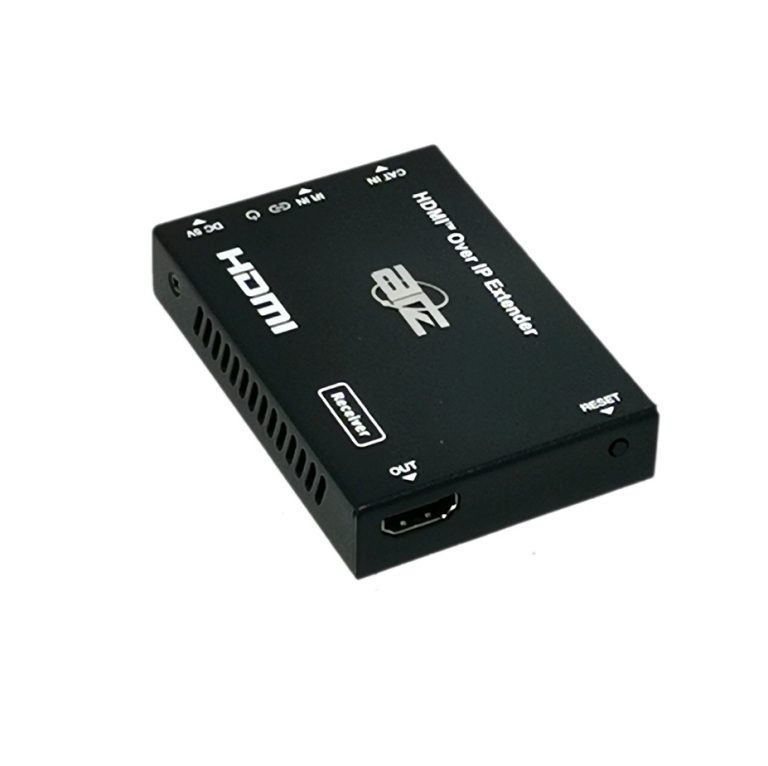

Extra RECEIVER UNIT for ATZ HDMI-E1505
Description
Extra RECEIVER unit for ATZ HDMI-E1505
Features:
- HDMI 1.3 and HDCP 1.4 compliant
- Support 6.75Gbps video bandwidth
- Video resolution is up to 1920×1200@60Hz
- Extend distance up to 492ft / 150m between encoder and decoder via a single CAT5e/6 cable
- Adopt standard H.265 encoding / decoding
- Support standard IP swticher / router / hub
- Support one-way IR control signal transmission
- Compact design for easy and flexible installation
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | 640×480@60Hz~1920×1200@60Hz |
| HDMI Audio Formats | LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz |
| IR Frequency | 20Hz ~ 60KHz |
| Compression Technology | H.265 |
| Request for Switcher /Router | Support IGMP, Support DHCP |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Encoder | Input: 1×HDMI IN [Type A 19-pin female] |
| Output: 1×HDMI OUT [Type A 19-pin female] | |
| 1×CAT OUT [RJ45 connector] | |
| Control:1×IR OUT [3.5mm Stereo Mini-jack] | |
| Decoder | Input: 1×CAT IN [RJ45 connector] |
| Output: 1×HDMI OUT [Type A 19-pin female] | |
| Control:1×IR IN [3.5mm Stereo Mini-jack] | |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 88mm (W) × 61.2mm (D) × 16.5mm (H) |
| Weight | Encoder: 158g, Decoder: 155g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Encoder: 2.55W, Decoder: 3.7W |
| Operation Temperature | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Resolution / Distance |
1920×1200@60Hz – Feet / Meter |
| CAT 5e/6 cable | 492ft / 150 meters |
| Resolution / Cable length | 1920×1200@60Hz – Feet / Meter |
| HDMI IN / OUT | 50ft / 15 meters |
