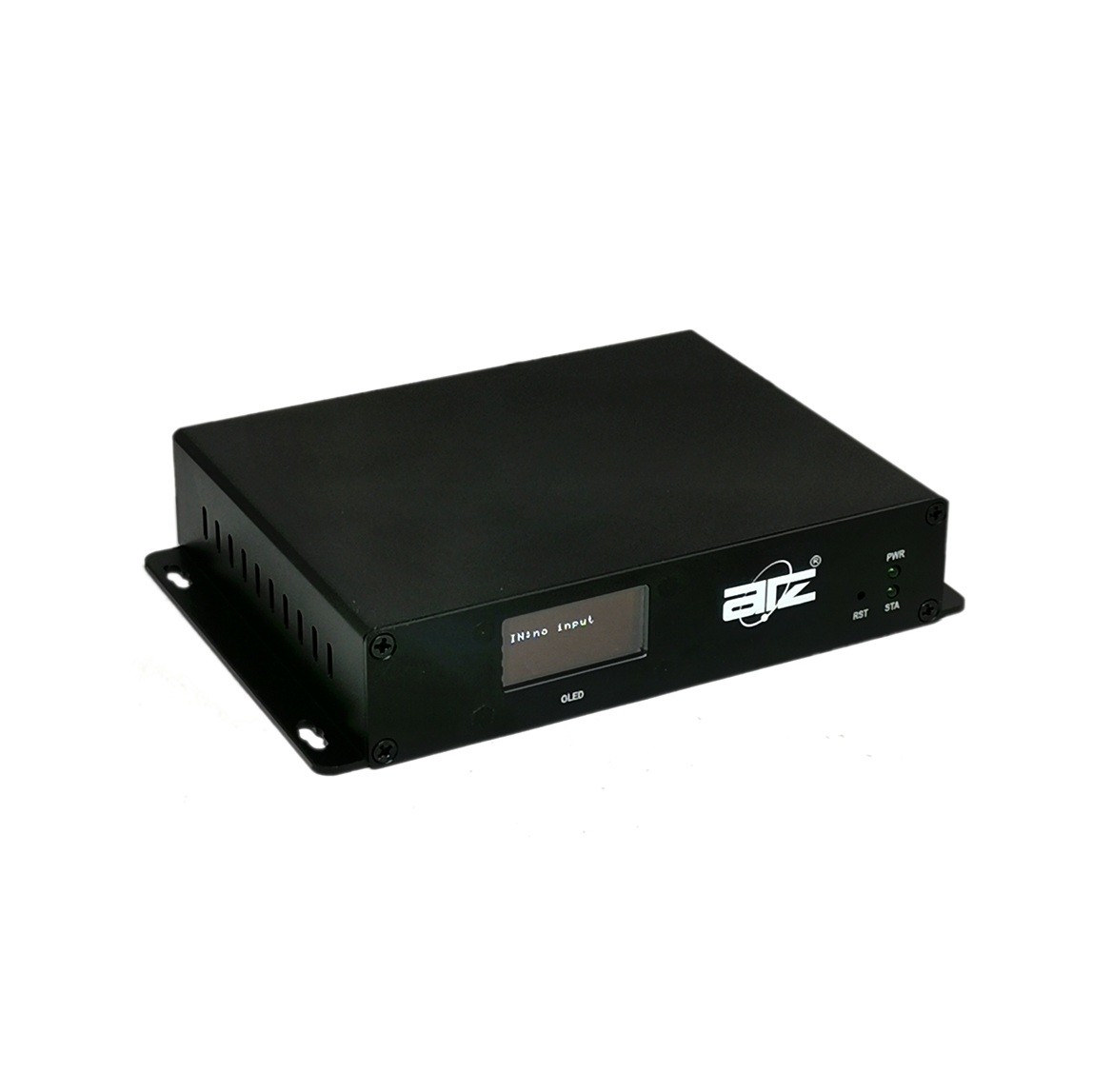

H.264 HD HDMI video ENCODER w/LED screen
Description
This is a professional hardware video and audio encoder. Which is designed to meet the HD/1080P@60 Video transmission applications. It supports H.265 (HEVC)/H.264 high performance encoding. Also, it supports the most protocols including HTTP/SRT/RTMP/ RTMPS/HLS/ UDP/RTSP/Onvif, etc.
It’s high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
Features:
- Support H.265/H.264 /MJPEG encoding
- Support 1x HDMI Input and loop-out
- Support Digital audio/Analog audio loop out
- Support HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV/Onvif protocol
- Support output video stream format: TS/VES/AES stream, etc.
- LCD display device name, IP address, resolution and working status
- Support up to 1080P@60 resolution input and output
- Support 4 channels streams output at the same time
- Support audio encoding without the video input
- Support MP3/AAC/G.711 Advanced Audio Coding format quality
- Support HDCP 1.4
- 1000M network interface uses full duplex mode, LAN and WAN transmission
- Support POE power supply(optional)
- Support SDK, secondary development
- Support network remote management and upgrade
- Support to be packed with 1U and 3U Rack(1~16channels video input)
- Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
- 7*24h Working
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 26 x 15 x 5.8 cm |
| Video | |
| Input interface | 1×HDMI 1.4 |
| Support resolution | 1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576, |
| 960*540,850*480,800*600,720*576,720*540,720*480, | |
| 720*404,704*576,640*480,640*360,480*270,Auto | |
| Frame rate | 5-60hz |
| HDCP | Support HDCP 1.4 |

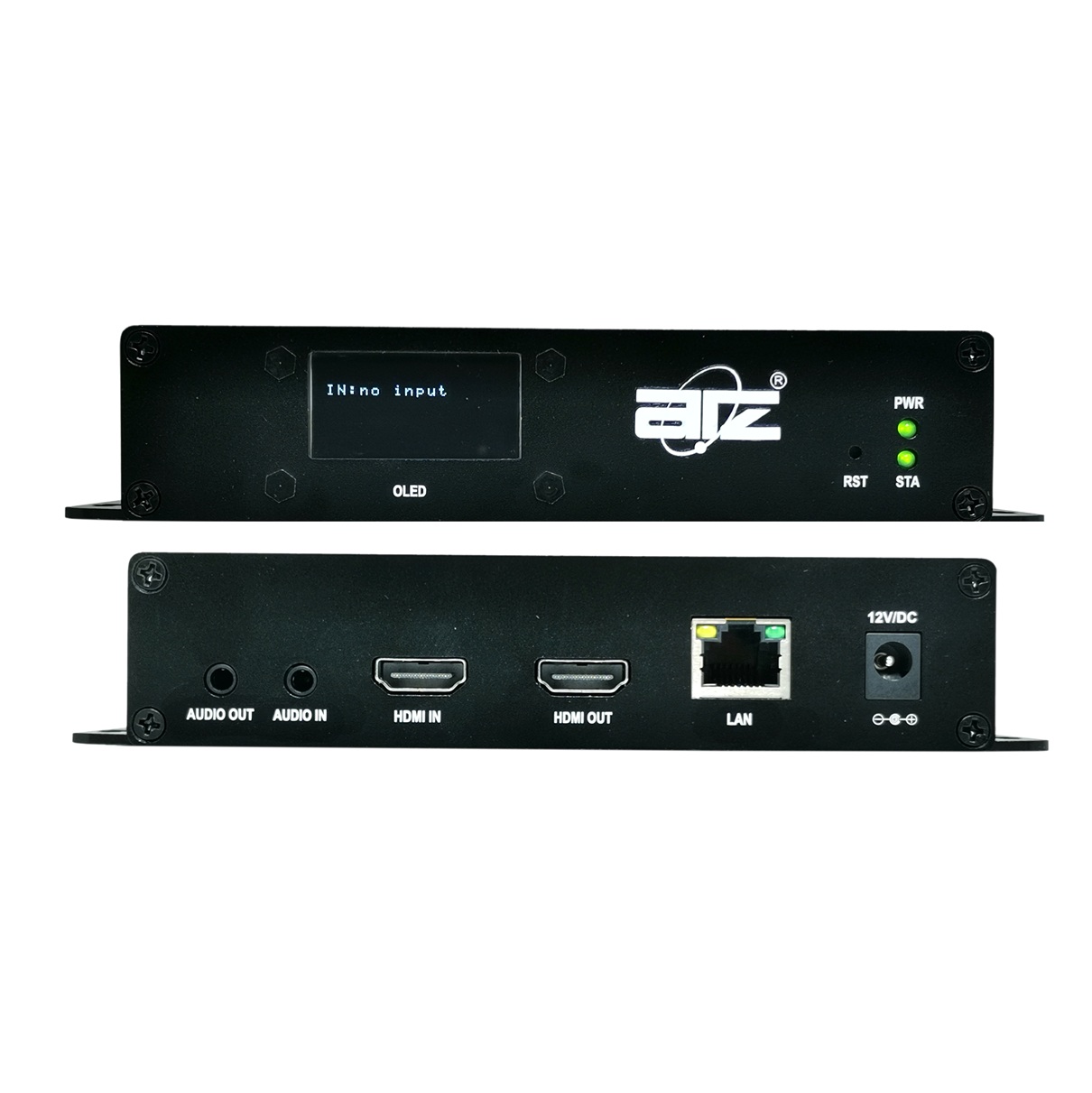

| Output interface | 1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out |
| Video encoding | H.265&H.264/MJPEG |
| Max bitrate | 16kbps- 12Mbps |
| Rate control | CBR/VBR |
| Audio | |
| Input interface | 1×External audio, HDMI built-in Audio |
| Output interface | 1×External audio |
| Audio encoding | ACC, G711 |
| Audio Encoder type: | AACLC,EAAC,EAACPLUS |
| Bit-rate Option | 48K,64K,96K,128K,160K,192K,256K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb/s to 384Kb/s |
| Network | |
| RJ45 | 1000M Ethernet port |
| Program streaming | HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV, ONVIF |
| Multicast: UDP/RTP | |
| Control Panel | Web panel (Language is English), remote upgrade |
| Firmware Update | Enable by uploading files to the dashboard |
| General | |
| Dimension(W*L*H) | 6.4*4.4*1.3in(163*111*32mm) |
| Gross Weight | 0.35kg |
| Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) |
| Humidity | <90%, non-condensing |
| Input Voltage | DC 12V/1A |
| Power Consumption | 5W |
