This product extends high-definition video and audio wirelessly to any HDTV displays up to 100 meters away.
The extender follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely used in office presentation, lecture, corporate training, conference, family entertainment etc.
Features:

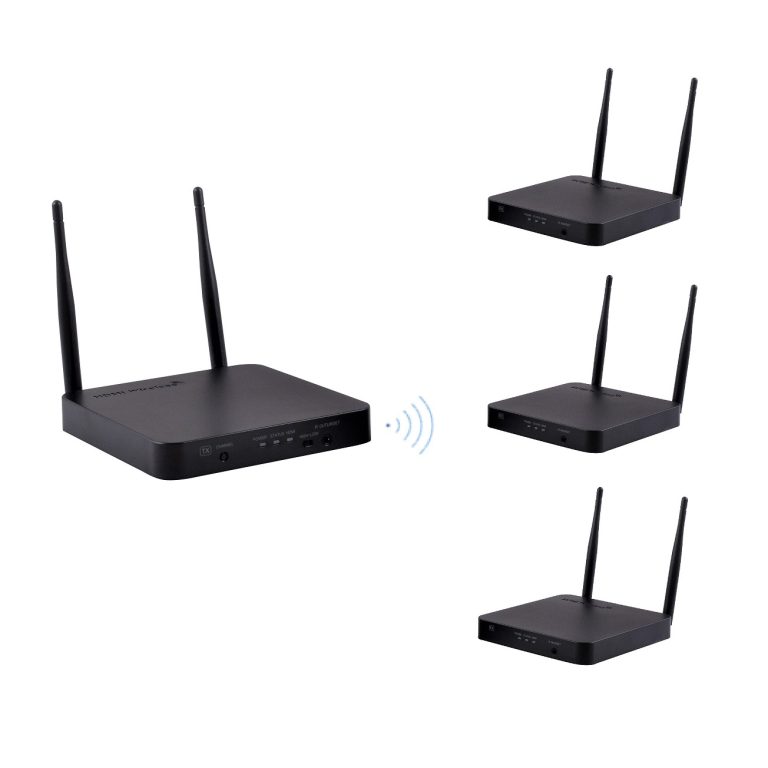

- One TX can be paired with multiple RX (Up to 4 Receivers)
- Support one HDMI loop output, for local screen monitor
- Support HDMI resolution: 480P~1080P@50/60Hz and SVGA~WUXGA
- Transmit through internationally accepted 5G ISM frequency band, high transmission rate and strong anti-interference capability
- Using an external dual – gain antennas.
- Full HD 1080p transmits up to 200 meters wireless in open space. (May be affected by the use environment)
- Extends wide-band infrared remote to control source device from display side
- Support OSD for device status
- Plug and Play, no software installation required
- Supports both panel settings and Web Configuration Interface, Simple and easy to use
POWER: Power indicator
STATUS: System status indicator
HDMI: HDMI input/output status indicator
CHANNEL: Wireless channel switch key
HIGH-LOW: Rate selector switch
HDMI IN: HDMI INPUT
HDMI OUT: HDMI OUTPUT
DC5V: 5V DC in jack
IR OUT&RESET: Insert IR transmitter cable & Factory Reset Button
IR IN&RESET: Insert IR receiver cable & Factory Reset Button
*Remarks: For Export Only and not for use in Singapore
