ATZ HDMI-E200W+USB


HDMI Wireless USB KVM Extender 200M w/IR


Share it:

The HDMI wireless extender provides a simple way to extend the HDMI signal. The open environment can reach up to 200 meters/660ft.
Transmission Distance:

1). Outdoor open area 200m/660ft

2). 50m/164ft without wall penetration indoors.

3). 10-20m/32-65inch through a wall

4). The upper and lower floors are better within 10m/32FT


Features:

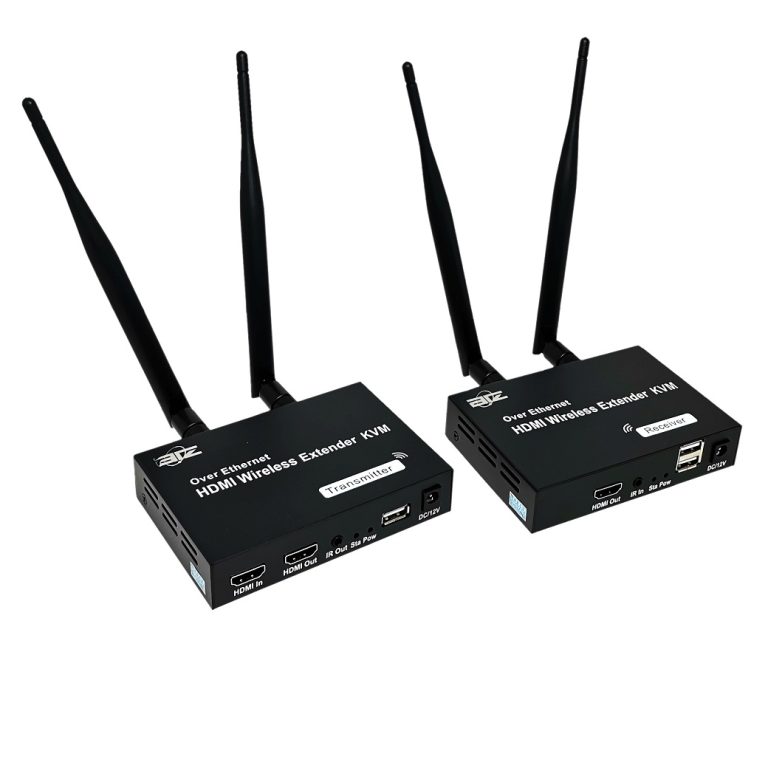

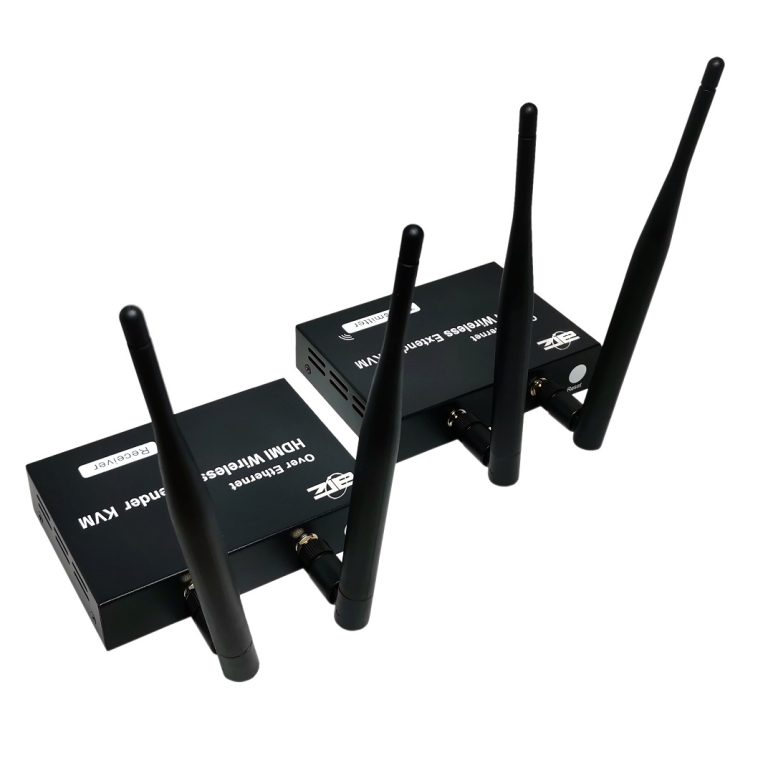

1. This wireless HDMI expander consists of a transmitter unit and a receiving unit.
2. The transmitter supports loop output for easy monitoring.
3. Supports multiple resolutions, including 480P/576i to 1080P@50/60hz.
4. Support 5G dual-frequency, fast transmission speed, strong anti-interference ability.
5. The external antenna supports long-distance transmission up to 200 meters in the air expansion environment (pay attention to ambient interference).
6. Supports infrared extension, and supports IR extension controlled by the source device on the display side.
7. Plug and play, the computer does not need to install drivers.
8. Supports mouse and keyboard operations (KVM)









*Remarks: For Export Only and not for use in Singapore

Parameters Description
Video HDMI and HDCP versions HDMI V1.3, HDCP V1.2
Compressed format H. 264
Maximum pixel clock 165MHz
Maximum data rate 6. 75Gbps
Resolution Max 1920X1080p@60Hz
Connector HDMI-A
Impedance 100 Q
Maximum HDMI input/output range is recommended When 1920x1080p@60Hz, it’s less than 3 meters
Ports Ports 3. 5mm infrared ports
Signal direction unidirectional
Signal type Digitization
Infrared frequency 20-60kHz
Wireless network network wireless frequency 13dbm
Wireless standard 802.11 AC signal 802.11 AC signal
Direction unidirectional
frequency 5.8G
Distance 200M
Others Power supply Adapter :DC12/1A power consumption
Power Transmitter 9W/ receiver maximum 9W
Operating temperature -5 °C-+70 °C
Working humidity 5% -90%
Product size 117*82*25mm
