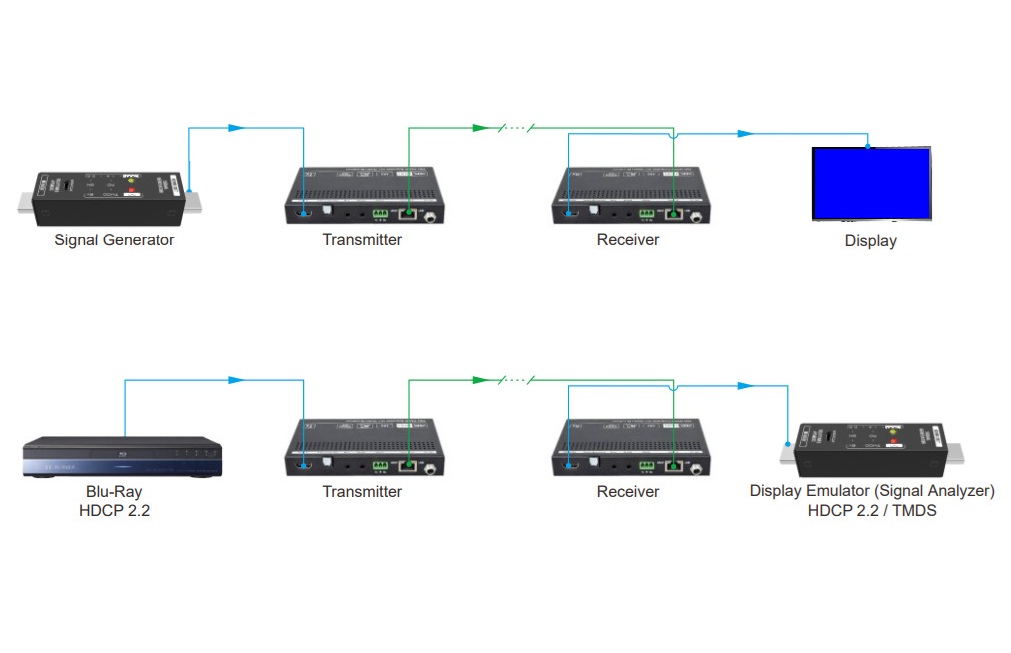

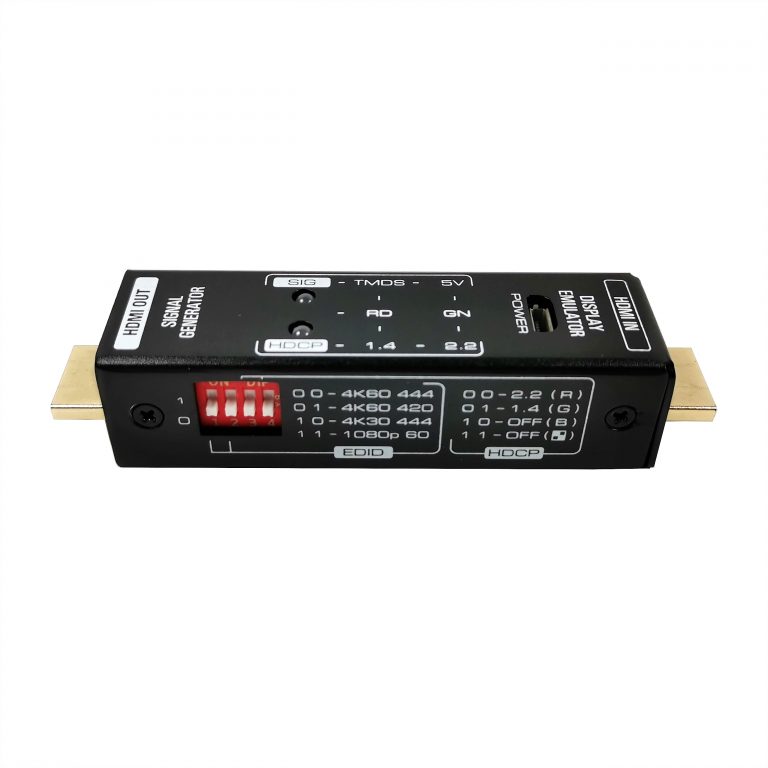

This is a portable mini HDMI signal generator and display emulator (signal analyzer), two functions combine into a compact size chassis. This is very useful for AV installers or testers; When work as signal generator, it can generate 4 signals, max resolution up to 4K@60Hz, 4:4:4, also can analyze the HDCP content, there is a 4 pin DIP switcher to control this; When work as a display emulator, it also can analyze the HDCP content and signal status (5V, TMDS). The LEDs will show the signal or HDCP status
Features:
- Used as HDMI signal generator or display emulator (signal analyzer).

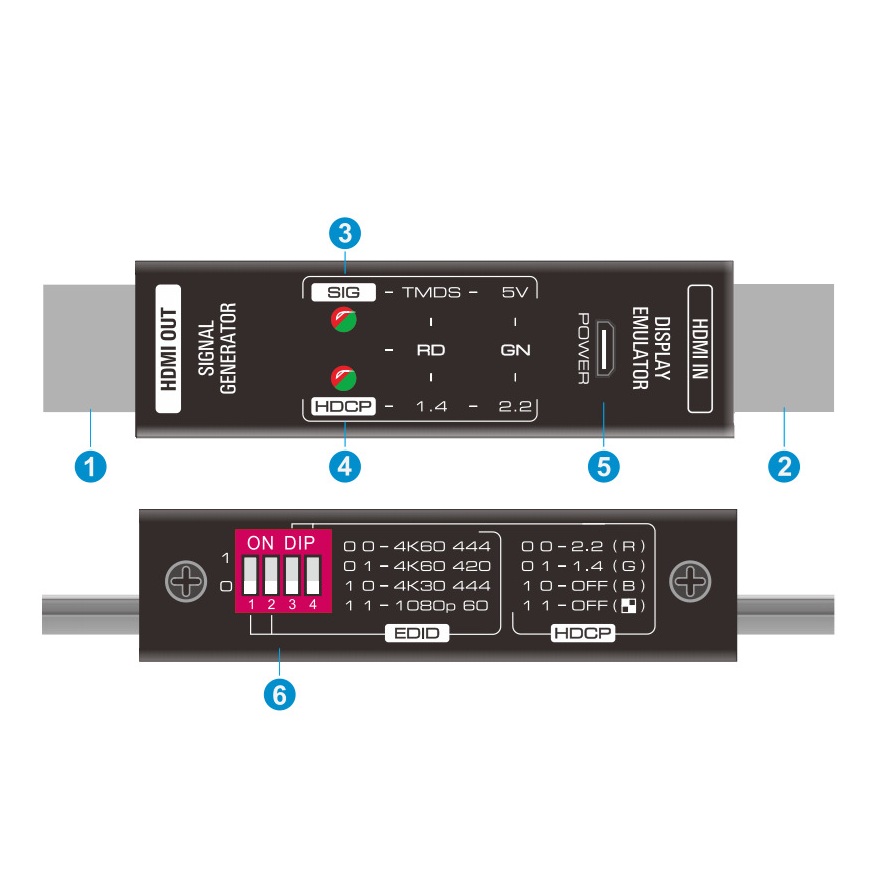

- Provides 4-pin DIP switch for setting video resolution and HDCP content.
- Supports 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz video signal output.
- Supports HDCP OFF, HDCP 1.4 or HDCP 2.2 output.
- Supports four different test patterns for HDCP version.
- LEDs show signal and HDCP status.
