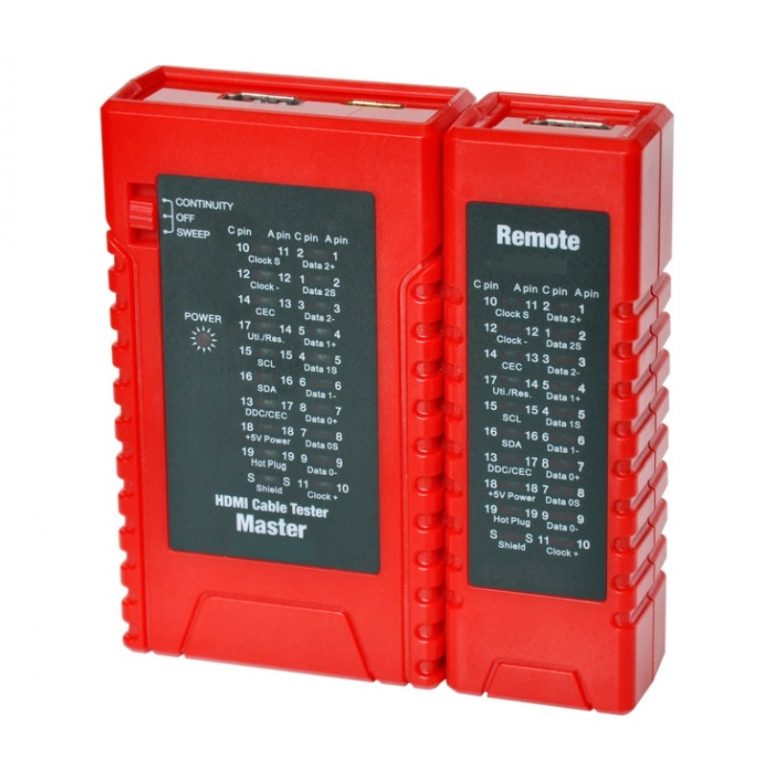

HDMI Cable Tester
Description
Features:
- Fast and accurate verification with type A – A, A – C and C – C connectors
- Check miswires, short, open and cross status of HDMI cables
- Mapping continuity and proper configuration
- Displays 19 pin-to-pin and shield connection status on both main and remote unit
- Adjustable test modes:Fast/slow scan/manual test for step by step
- Design with loopback function
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 x 20 x 10 cm |
| Cables versions support | HDMI cables with type A & C connectors conforming to 1.0,1.1,1.2,1..2a, 1.3,1.3a,1.3b,1.4,1.4a,Category 1 and category 2 HDMI cables |
| Support test | 19 pin to pin wiremap and shielding detection |
| Test interface of master unit | HDMI ( type A) x1, Mini HDMI (type A ) x1 |
| Test mode | Fast / slow scan / step by step |
| Test distance | Under 50 meters |
| Status Display | 19 leds and shield led on both master and remote unit |
| Beeper indication | Yes |
| Low battery indication | 6.0V |
| Power source | DC 9V (NEAD 1604/ 6F22) x1 (not included) |
| Environment | Operating:0 to 40 < 80% RH ; Storage:-10 to 50 <70%RH |
| Dimensions | Master unit: 103x66x27mm ; Remote unit:103x35x27mm |
| Wire map | 19 pin+Shield |
| Cable type | A-A, A-C, C-A |
| Test type | Master + Remote |
| Status display | No |
| Test distance | < 50 meters |
| Low battery indication | Yes |
| Test mode | Fast/slow/step by step |
| Battery | 9V |
