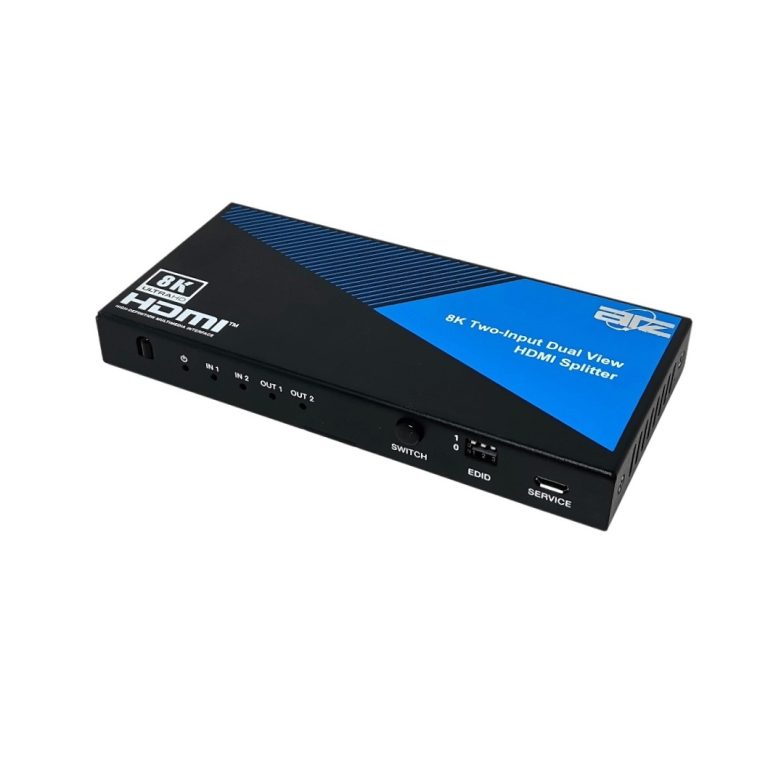

2-to-1 HDMI 8K Switch with Dual View (Splitter)
Description
This 8K two-Input Dual View HDMI Splitter not only allow switching of the two HDMI input signals, but it also distribute to two displays simultaneously. It supports video resolution up to 8K@60Hz 4:2:0. It works functionally as a splitter or a switcher, can be widely applied for presentation, video conference, multimedia purposes and other occasions requiring big-screen demonstration.
Features:
- HDMI 1 and HDCP 2.3 compliant
- Support 40Gbps video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- 2×2 Switch with Dual Output
- Built-in Equalizer, Retiming and Driver
- Advanced EDID management
- Support IR remote control and front panel button switching
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 40Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 | |||
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | |||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||

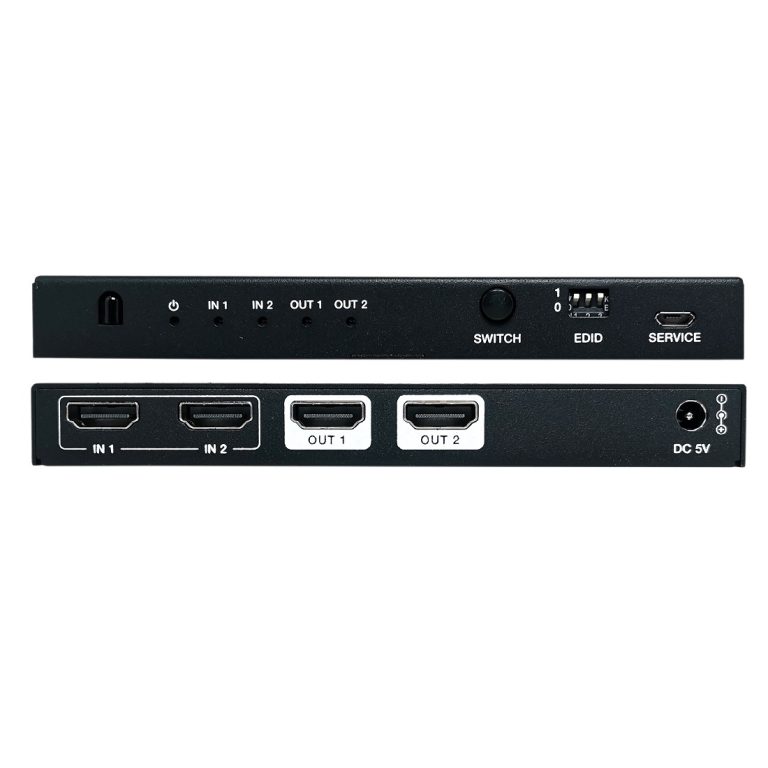

| Connection | ||||
| Input | 2× HDMI IN [Type A, 19-pin female] | |||
| Output | 2× HDMI OUT [Type A, 19-pin female] | |||
| Control | 1× SERVICE [Micro USB, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Silkscreen Color | Black | |||
| Dimensions | 145mm (W) × 68mm (D) × 17mm (H) | |||
| Weight | 265g | |||
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 6.15 W (Max) | |||
| Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution |
8K |
4K60 |
4K24 |
1080P |
| HDMI Cable Type |
Ultra HDMI 2.1 |
HDMI 2.0 |
HDMI 1.4 |
HDMI 1.4 |
| HDMI Cable Length
(HDMI IN / OUT) |
|
|
|
|
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||||
