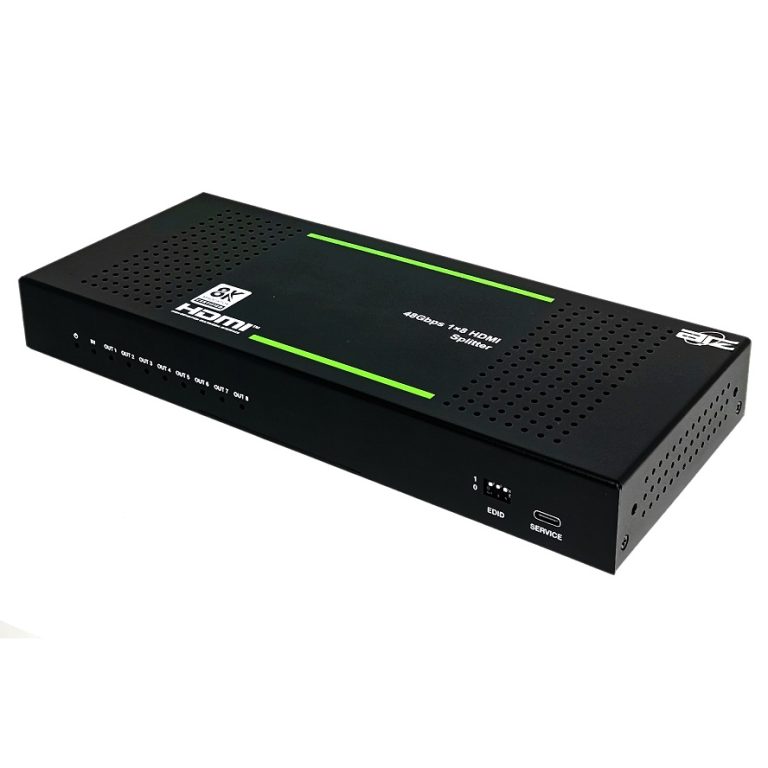

8 ports HDMI2.1 8K@60 Splitter with Downscaler
Description
This 1×8 splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. It supports data rates up to 48Gbps, complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization.
This multi-functional product can work well with xbox or PS5 to achieve 4K@ 120Hz on your TVs or relative monitors.
Features:
• HDCP 2.3 compliant
• Support 48Gbps FRL and 18Gbps TMDS video bandwidth
• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported as specified in HDMI 2.1
• Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
• Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos,
• DTS-HD Master Audio
• Support resolution auto downscaling on each output
• ☆ Support auto converting of HDR to SDR on each output
• Advanced EDID management
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3, HDCP 1.4 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Formats | HDMI IN/OUT:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||

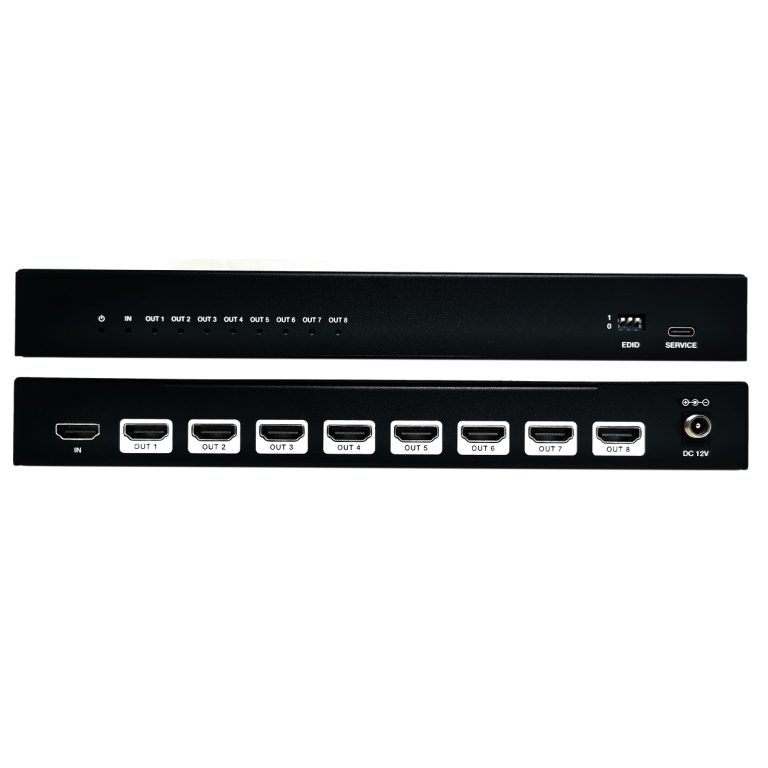

| Connection | ||||
| Input | 1 × IN [HDMI Type A, 19-pin female] | |||
| Output | 8 × OUT [HDMI Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | 250mm [W] × 104mm [D] × 30mm [H] | |||
| Weight | 743g | |||
| Power Supply | DC 12V/2.5A | |||
| Power Consumption | 12.2W (Max) | |||
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |||
| Relative Humidity | 20~90% RH (Non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft (Ultra HDMI 2.1) | 8m/26ft | 12m/39ft | 15m/49ft |
| The use of ATZ “Premium High Speed HDMI” cable is highly recommended. | ||||
