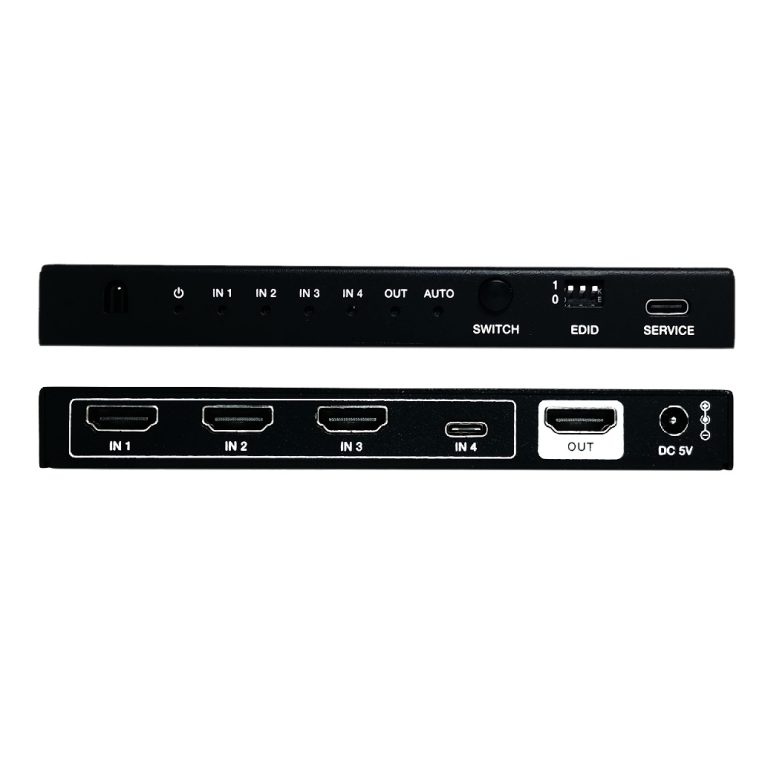

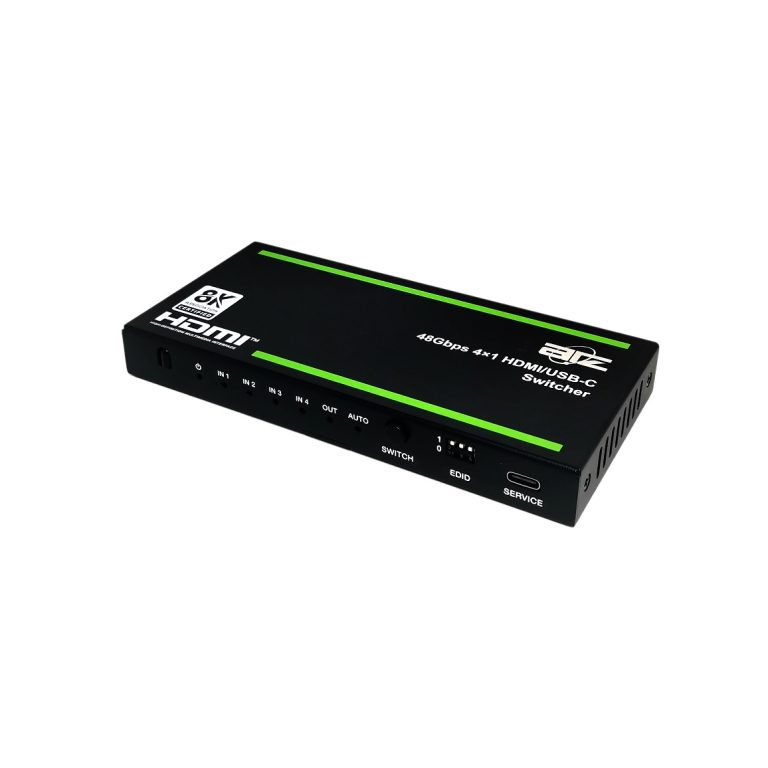

This 48Gbps 4×1 Switcher is an ultrathin auto switcher, with three HDMI video inputs, one USB-C input and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz 4:2:2 10-bit (USB-C). It supports HDR10, HDR10+, Dolby Vision and multichannel audio format. Built-in EDID can be set via 3-pin DIP switch on the front panel, and EDID info is shown on the displayer. Furthermore, the firmware update at service port is supported.
Features
- DP 1.4 and HDCP 2.3 compliant
- Support HDMI video bandwidth up to 48Gbps FRL and 18Gbps TMDS
- Support HDMI video resolution up to 8K@60Hz 4:2:0 12-bit, 8K@30 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit, as specified in HDMI 2.1
- Support USB-C video bandwidth up to 32Gbps
- Support USB-C video resolution up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through \
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 3× HDMI and 1× USB-C inputs routed to 1× HDMI output
- Control via front panel button and IR remote
- Support auto input switching and manual input switching
- CEC control from TV at output to source at input
- Advanced EDID management
