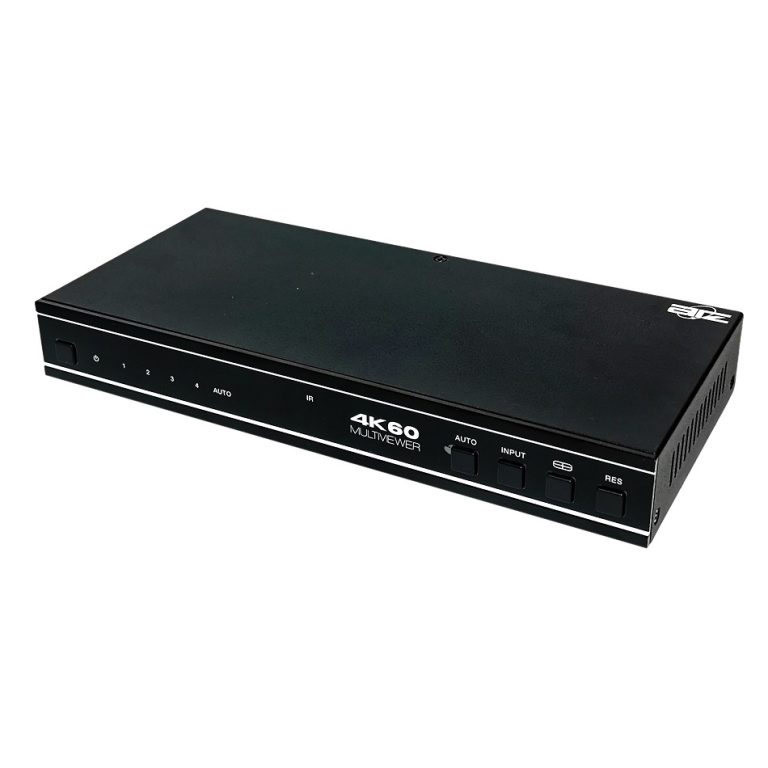

This 4K60 4×1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor.
This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

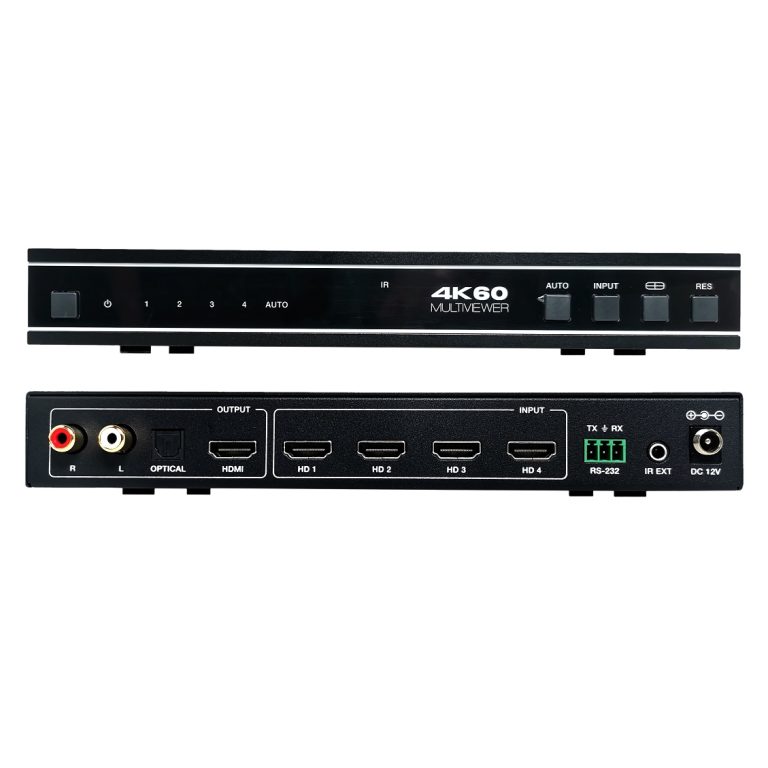

This device can be controlled via front panel buttons, IR remote, RS-232 commands.
Features:
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Input and output resolutions support up to 4K@60Hz
Support LPCM, AC3, DD+, DTS, DTS-HD, up to 1 audio channel
Seamless switching between input channels and combined multiple images on single UHD monitor
Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Seamless switching on single screen display mode
Fast switching on multiview display mode
Audio de-embedding via analog and optical fiber audio ports
Support volume control and independent audio selection
Support OSD navigation for advanced setting
EDID management
Control via front panel buttons, IR remote, RS-232 commands
Compact design for easy and flexible installation
