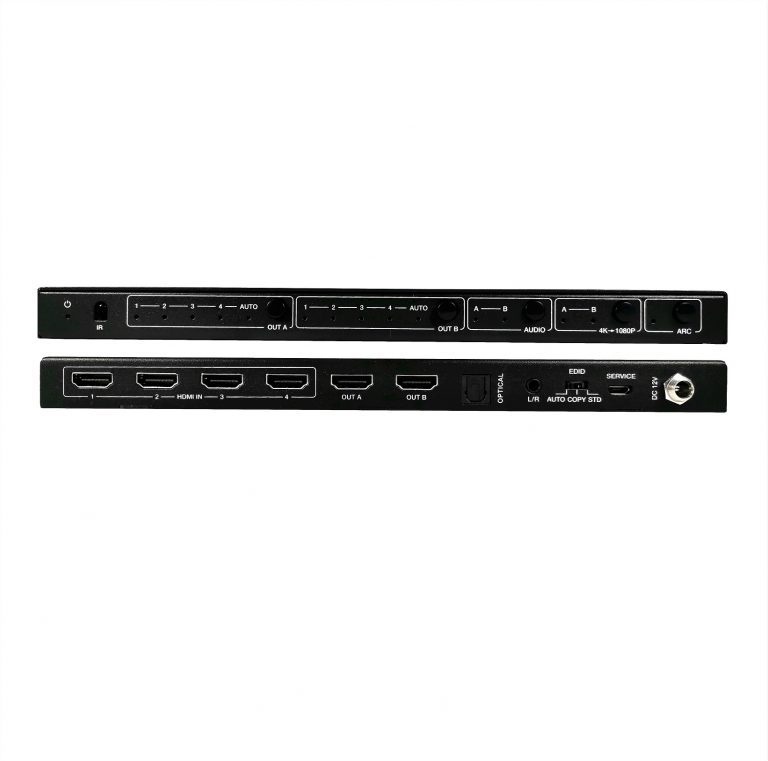

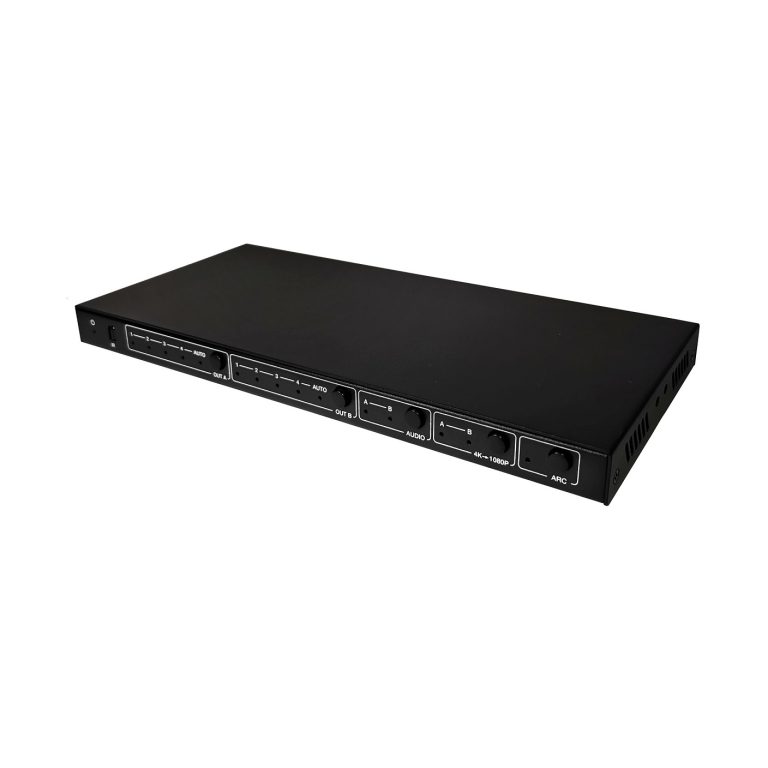

4×2 HDMI2.0 Matrix Switcher with Audio Extractor/Scale/ARC/EDID function
Description
This high performance HDMI Matrix Switcher can switch any of these four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K→1080P downscale function if source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) function. With its 18Gbps bandwidth and the additional features with latest HDMI standards. Flexible control via front panel buttons and IR remote.
Features:
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 4 HDMI inputs and 2 HDMI outputs
- Video resolution up to 4K2K@60Hz YCbCr 4:4:4
- Supports 18Gbps uncompressed bandwidth on all HDMI
- Supports Dolby Vision, HDR 10+, HLG
- Supports extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
- OUT A and OUT B support 4K to 1080P downscale function
- Supports ARC (Audio Return Channel) function
- Supports advanced EDID management including AUTO, COPY and STD
- Control is via front panel buttons and IR remote
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 28 x 18 x 7 cm |
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz(YCbCr 4:4:4),[email protected] HDMI 3D TV format, etc. |
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats | PCM2.0, Dolby Digital / Plus, DTS |
| L/R Audio Formats | PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
| Connections | |
| Input Ports | 4×HDMI Type A [19-pin female] |
| Output Ports | 2×HDMI Type A [19-pin female]
1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 251mm(W)×105mm(D)×20mm(H) |
| Weight | 620g |
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC12V/1A |
| Power Consumption | 3.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
