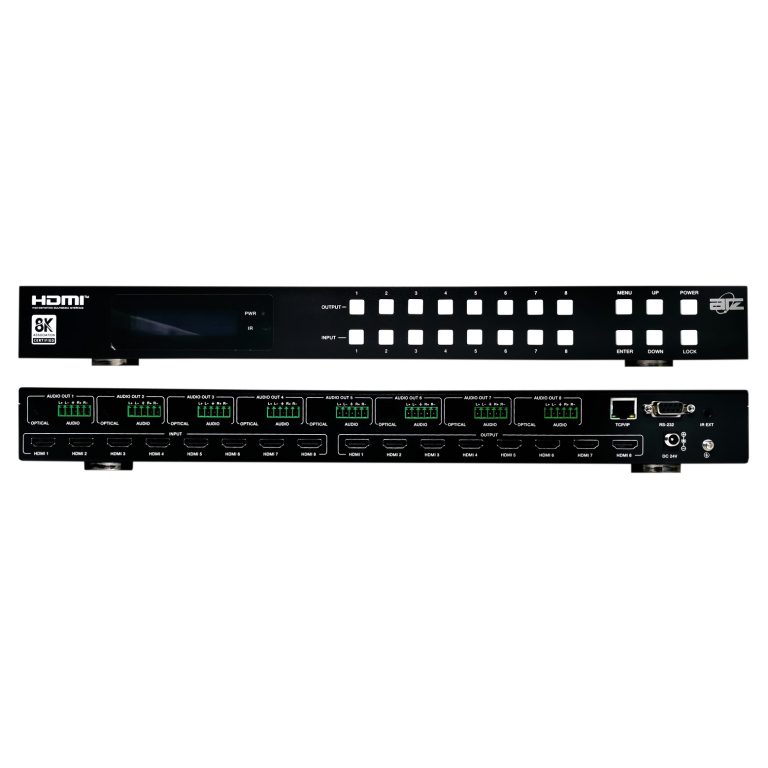

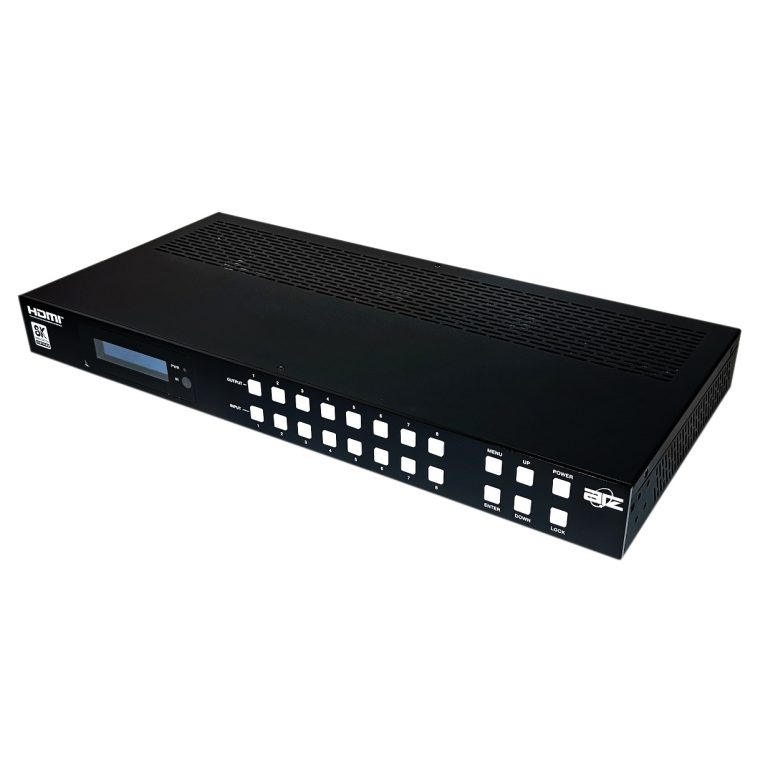

8×8 HDMI2.1 8K@60 Matrix Switcher w/Audio Extractor+ARC+RS232+Web GUI
Description
The 48Gbps 8K 4×4 HDMI Matrix supports the transmission of high resolution video (up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi-channel digital audio from 4 HDMI sources to 4 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported.
It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display, and can be controlled via front panel buttons, IR remote, RS-232, and Web GUI.
Features:
- HDMI 2.1 and HDCP 2.3 compliant
- 4 × HDMI inputs can be independently routed to 4 × HDMI outputs
- Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4
- Support 48Gbps video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision pass-through
- Support 8K->4K or 8K/4K->1080p downscaling for each output port
- VRR, ALLM, QMS, QFT, SBTM are supported
- Support optical audio and balanced analog audio output
- Advanced EDID management
- Control via front panel buttons, IR remote, RS-232, and Web GUI
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps | |||
| Video Resolution | Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Color Depth | 8/10/12bit | |||
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Latency | No Latency | |||
| Video Latency | No Latency | |||
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: Optical outputs: LPCM 2.0CH/Dolby/DTS 5.1 CH Balanced Analog Audio Outputs: LPCM 2CH |
|||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input ports | 4 × HDMI INPUT [Type A, 19-pin female] | |||
|
Output ports |
4 × HDMI OUTPUT [Type A, 19-pin female] 4 × OPTICAL AUDIO [S/PDIF] 4 × L/R AUDIO [3.5mm Stereo Mini-jack] |
|||
| Control ports | 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] 1 × IR EXT [3.5mm, Stereo Mini-jack] |
|||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | 440mm [W] × 203mm [D] × 44.5mm [H] | |||
| Weight | 2.65kg | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) | |||
| Power Consumption | 35W (Max) | |||
| Operating Temperature | 32 – 104°F / 0 – 40°C | |||
| Storage Temperature | -4 – 140°F / -20 – 60°C | |||
| Relative Humidity | 20 – 90% RH (no-condensing) | |||
| Video Resolution | 8K | 4K60 | 4K30 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 3m/9.8ft (Ultra HDMI 2.1) | 5m/16ft | 10m/33ft | 15m/49ft |
| The use of ATZ “Premium High Speed HDMI” cable is highly recommended. | ||||
