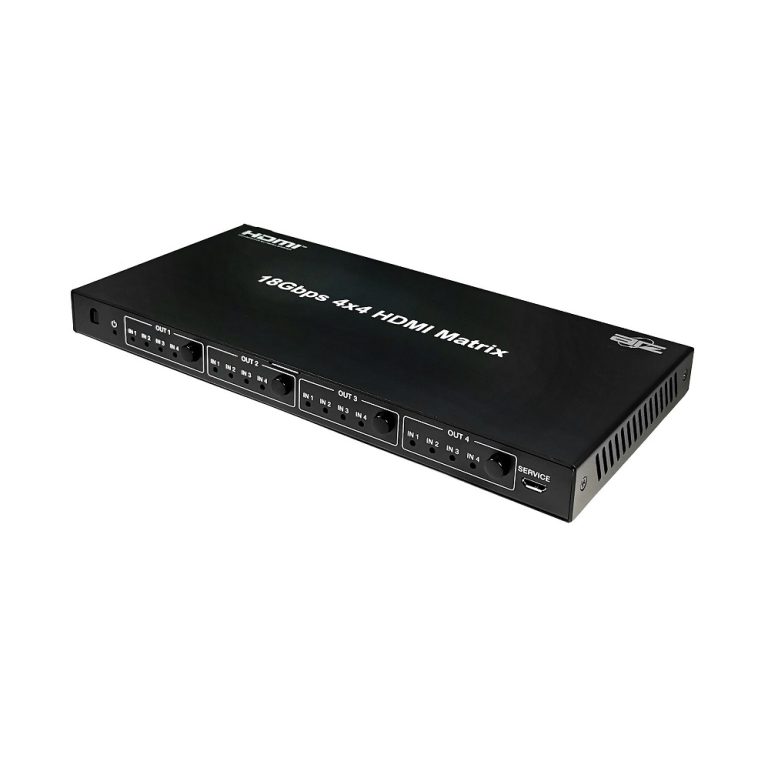

4×4 HDMI2.0 Matrix Switch 18Gbps 4K@60Hz (4:4:4)
Description
The 4×4 HDMI Matrix supports the transmission of video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs. Each output supports downscaler functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source). Also, the product has distribution mode and switching mode.
Features:
- HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- HDR, HDR10, HDR10+, Dolby Vision passthrough
- Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Support 4K -> 1080P Downscaler
- Support advanced EDID management
- Flexible control via panel or IR remote control
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 28 x 18 x 10 cm |
| Technical | |
| HDCP Compliant | HDCP 2.2 / 1.x |
| Video Bandwidth | 594MHz / 18Gbps |
| Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |

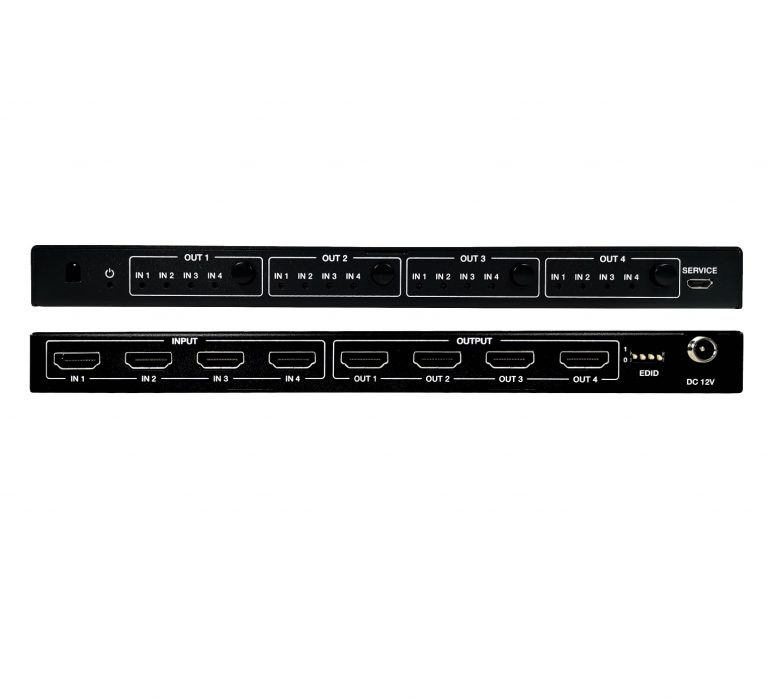

| Inputs | 4×HDMI Type A [19-pin female] 1×IR Receiver Window 1×Micro USB |
| Outputs | 4×HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm(W)×205mm(D)×19mm(H) |
| Weight | 535g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 11.04W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
