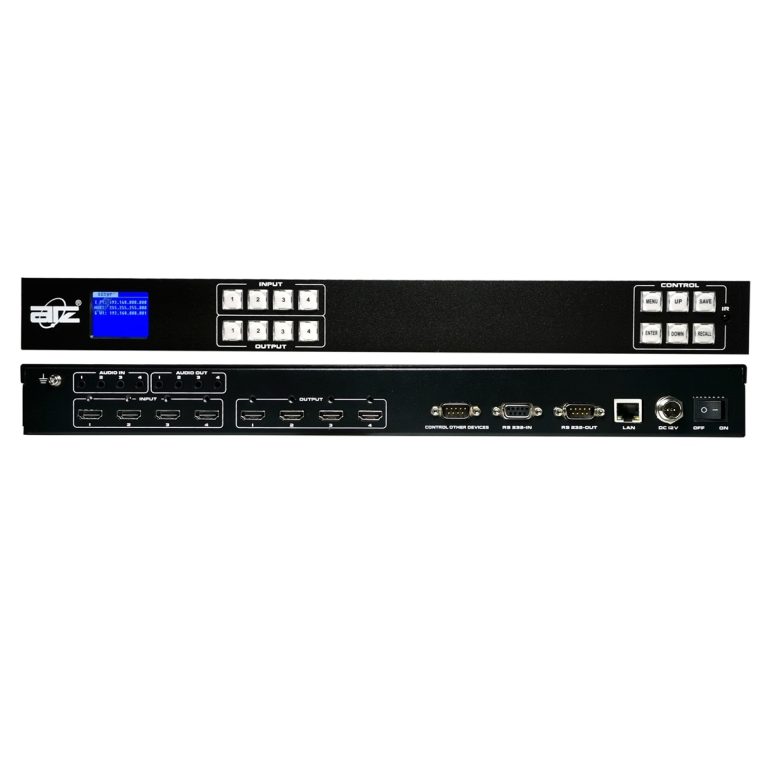

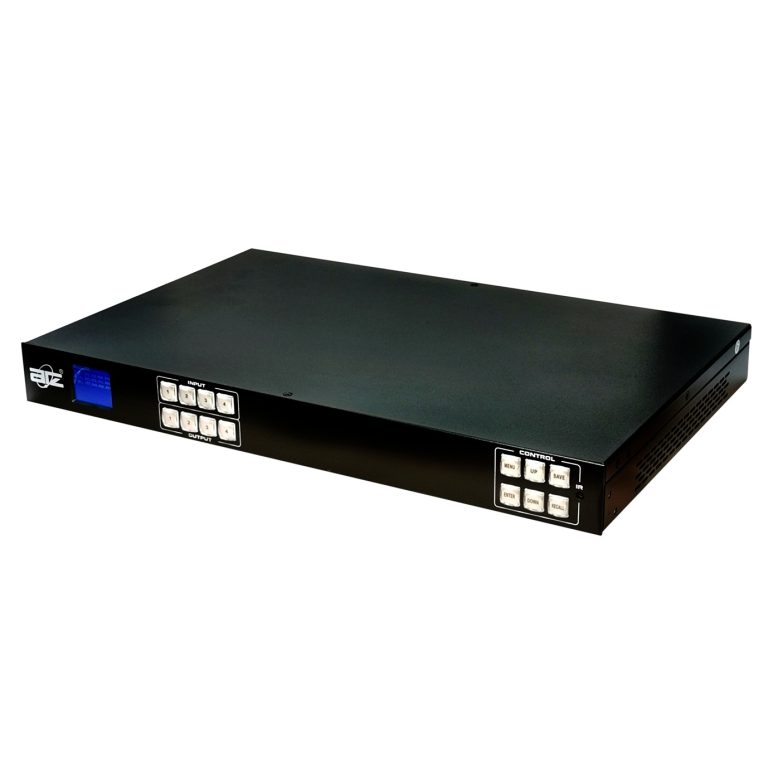

4×4 HDMI2.0 SEAMLESS HDMI Matrix Switch 4K@60 18Gbps, Video Wall, Multiviewer, Scaling
Description
This is advanced and powerful 4K60 18Gbps HDMI2.0 Matrix Switcher with 4x HDMI Inputs and 4x HDMI Outputs. This unit can support Seamless switching, Video Wall, Multiviewer and Scaler functions. It can be controlled by the front push-button, IR remote, TCP/IP WEB GUI or APP control, also support the RS232 control. It also support 4x 3.5mm audio inputs and 4x 3.5mm audio or 4x SPIF audio outputs. It is capable of producing high-quality imagery with pristine detailing and rich color, all HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
Features:
• 4x HDMI2.0 with 4x 3.5mm audio Inputs
• 4x HDMI2.0 with 4x 3.5mm audio and 4x SPDIF Outputs.
• Seamless switching

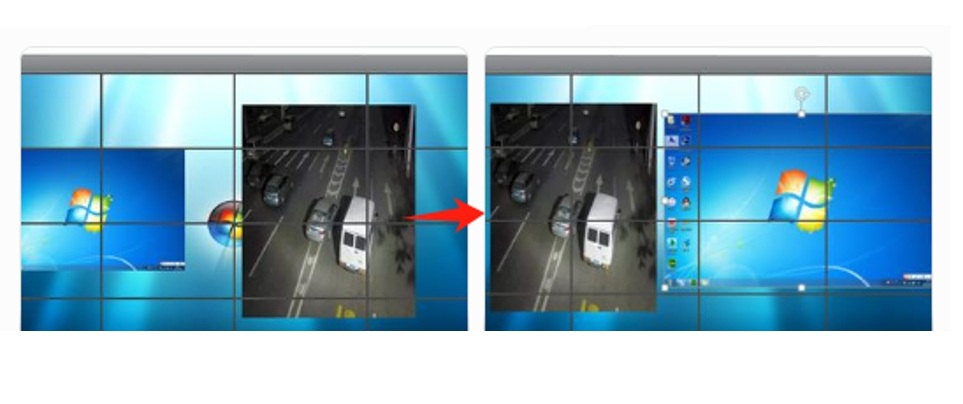

• Supports Matrix switching, Video Wall and Multiview function
• Supports audio independently switching
• Compliant HDCP 2.2 with EDID management
• Control by front-panel push buttons, IR Remote, RS232, TCP/IP and APP
• Resolution up to 4K@60Hz 4:4:4
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 60 x 40 x 10 cm |
| Resolution | 4K@60Hz,YUV4:4:4 8 bit, 4K@30Hz/1080P/1080i/720P 4k@30Hz/1080P/1080i/720P |
| Input ports | 4*HDMI2.0 with 4*3.5mm |
| Output ports | 4*HDMI2.0 with 4*3.5mm audio and 4*SPDIF |
| Transmission distance | 10m/30ft for 4K60, 15m/45ft for 1080P@60Hz(by qualified HDMI cables) |
| Bandwidth | 18Gbps |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Controlling | Front-panel push buttons, IR Remote, RS232, TCP/IP and APP |
| Power Consumption | 22W(Max.) |
| Dimension(mm) | 486 * 279 * 44( mm) |
| Weight | 6Kg |
| Operating Temperature | -5 to +40°C(23 to +104 °F) |
| Storage Temperature | -10 to +60°C(-14 to +140 °F) |
https://www.dropbox.com/scl/fi/iltb4ee3bqstc2yeuwlu2/ATZ-HDMI-V2-44SMPR-TW_A.pdf?rlkey=h69jz6up87q03ekgsqgdmljtg&dl=0
