2×2 HDMI2.1 8K@60 Matrix Switcher w/Audio Extractor
Description

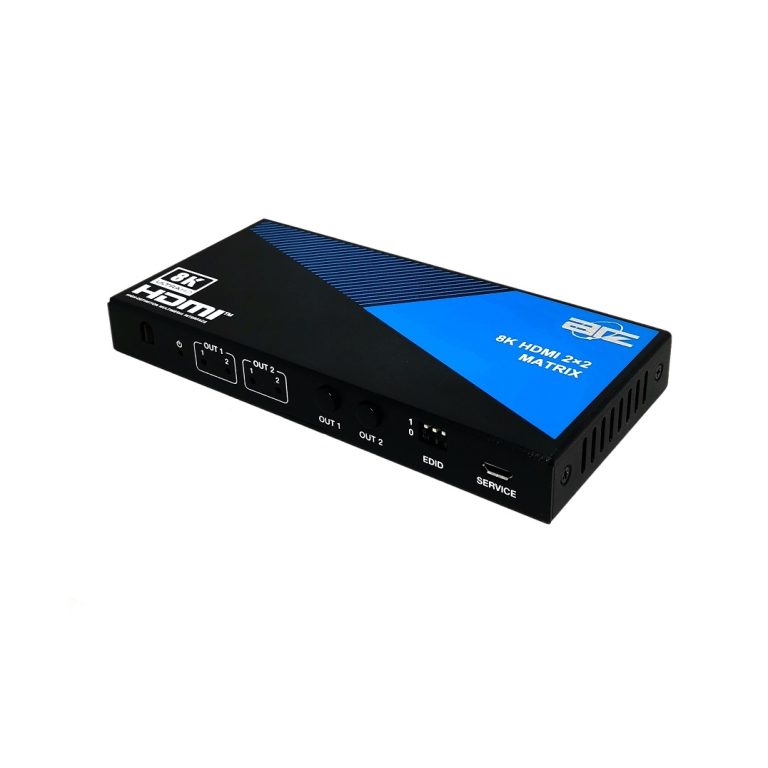

This 8K HDMI 2×2 Matrix Switcher can not only switch any of the two HDMI input signals, but also distribute it to two displays simultaneously. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID manage- ment and audio de-embedding function (output through the optical and analog port). As able to be used either as a splitter or a switcher, this multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demonstration.
Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Support 40Gbps video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Built-in Equalizer, Retiming and Driver
- Advanced EDID management
- Support audio de-embedding function (output through the optical and analog port)
- Support IR remote control and front panel button switching
- Compact design for easy and flexible installation
| Technical | |||||
| HDMI Compliance | HDMI 2.1 | ||||
| HDCP Compliance | HDCP 2.3 | ||||
| Video Bandwidth | 40Gbps | ||||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | ||||
| Color Depth | 8/10/12-bit | ||||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 | ||||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0 |
||||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||||
| Connection | |||||

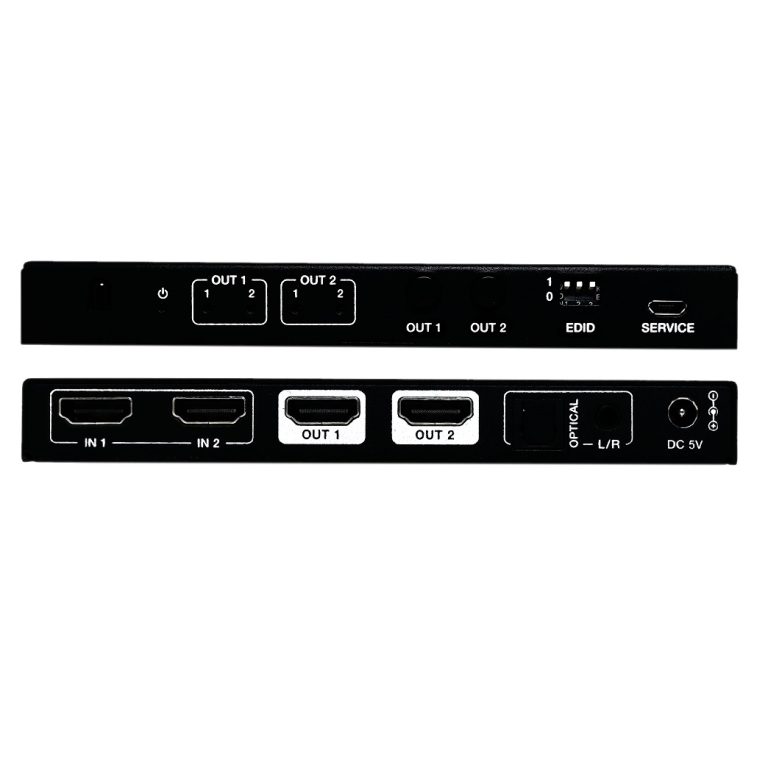

| Input | 2 × HDMI IN [Type A, 19-pin female] | ||||
|
Output |
2 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
||||
| Control | 1 × SERVICE [Micro USB, Update port] | ||||
| Mechanical | |||||
| Housing | Metal Enclosure | ||||
| Silkscreen Color | Black | ||||
| Dimensions | 145mm (W) × 68mm (D) × 17mm (H) | ||||
| Weight | 268 g | ||||
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | ||||
| Power Consumption | 6.2 W (Max) | ||||
| Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F | ||||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||||
| Relative Humidity | 20~90% RH (non-condensing) | ||||
| Recommended HDMI Cable | |||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P | |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 | |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft | |
| The use of ATZ “Premium High Speed HDMI” cable is highly recommended. | |||||
