4-to-1 HMDI v2.0 Switch w/IR remote 4k@60Hz, 18Gbps+Audio Extractor, ARC
Description

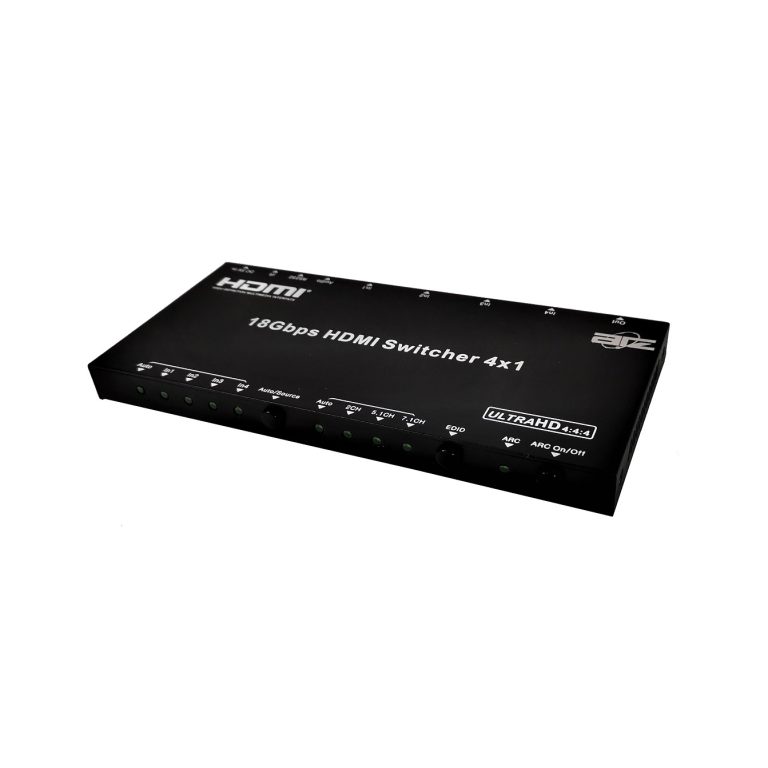

This is a high performance HDMI 4×1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output. This product supports HDCP repeater/CEC/ARC functions. Select any of the inputs by front panel button or IR Remote, the corresponding indicator LED on the front panel will be illuminated.
Features:
• Compliant with HDMI 2.0a, DVI 1.0 standards
• HDCP 2.2 and HDCP 1.4 compliant
• Video formats up to 4Kx2K@60 and all HDMI 3D video formats
• Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
• Digital and analog audio output
• Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)
• Support input port auto switching or manual switching mode
• Support Audio Return Channel (ARC)
Additional information
| Weight | 0.65 kg |
|---|---|
| Dimensions | 25 x 19 x 6 cm |
| requency Bandwidth | 18Gbps |

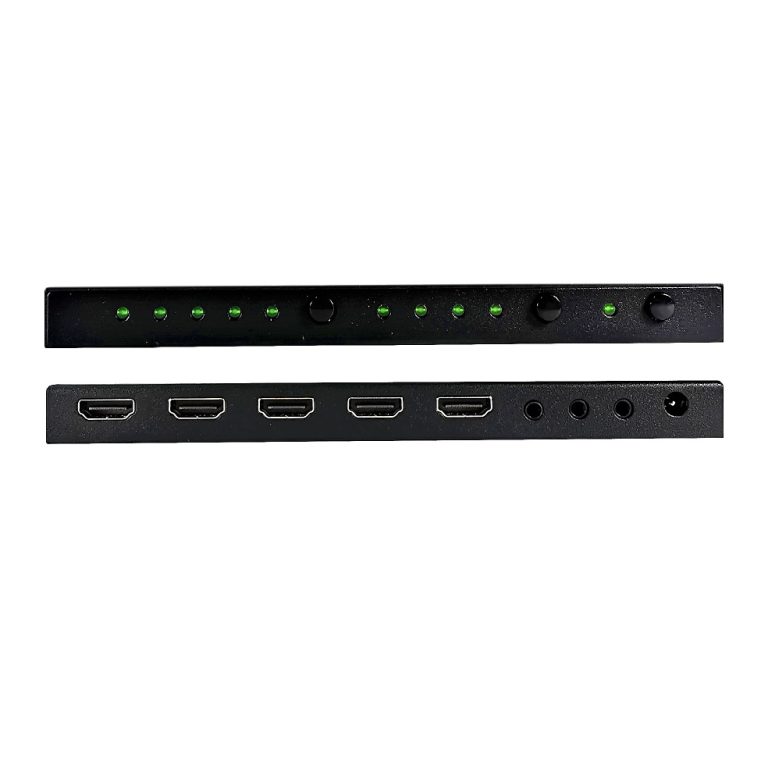

| Input Ports | 4 HDMI Female ports, 1 IR Receive port and 1RS232 port |
| Output port | 1 HDMI Female port and 1 L/R & Optical port |
| HDMI Audio Output | PCM2.1/5.1/7.1CH,Dolby5.1, DTS5.1, Dolby-TrueHD, DTS-HD |
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) |
| ± 4kV (contact discharge) | |
| Dimensions (mm) | 180 (D) x85 (W) x 11.6 (H) |
| Weight (g) | 300 |
| Power Consumption | Max 2.5W |
| Operating Temperature | 0˚C ~ 40˚C / 32˚F ~ 104˚F |
| Storage Temperature | -20˚C ~ 60˚C / -4˚F ~ 140˚F |
