ATZ HDMI-V2-21SMPR

Written by

in

2-to-1 HDMI2.0 4K60 Multiviewer SEAMLESS UHD Video Switcher w/Audio Extractor

Compare
SKU: ATZ HDMI-V2-21SMPR Categories: ,

Description

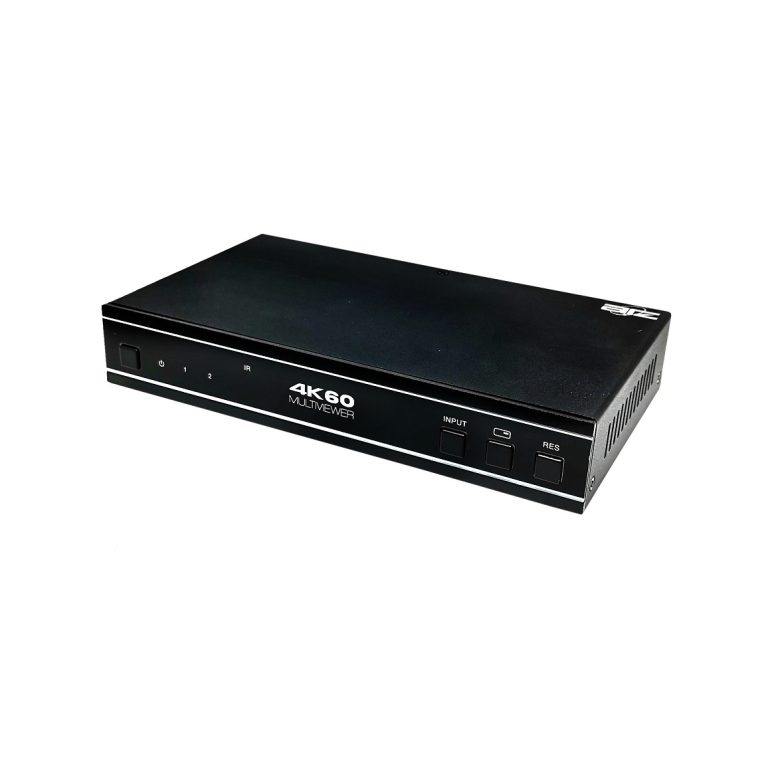

This 4K60 2×1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor.
This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.
This device can be controlled via front panel buttons, IR remote, RS-232 commands.

Features:

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Support 18Gbps video bandwidth
  • Input and output resolutions support up to 4K@60Hz
  • Support LPCM, AC3, DD+, DTS, DTS-HD, up to 1 audio channel
  • Seamless switching between input channels and combined multiple images on single UHD monitor
  • Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)
  • Seamless switching on single screen display mode
  • Audio de-embedding via analog and optical fiber audio ports
  • Support volume control and independent audio selection
  • Advanced EDID management
  • Control via front panel buttons, IR remote, RS-232 commands
  • Compact design for easy and flexible installation
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz
IR Level 5Vp-p
IR Frequency 38KHz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8bit


Audio Formats

 HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res

Analog audio [3.5mm L/R]: PCM2.0;

SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.Note: It does not support HBR audio.
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

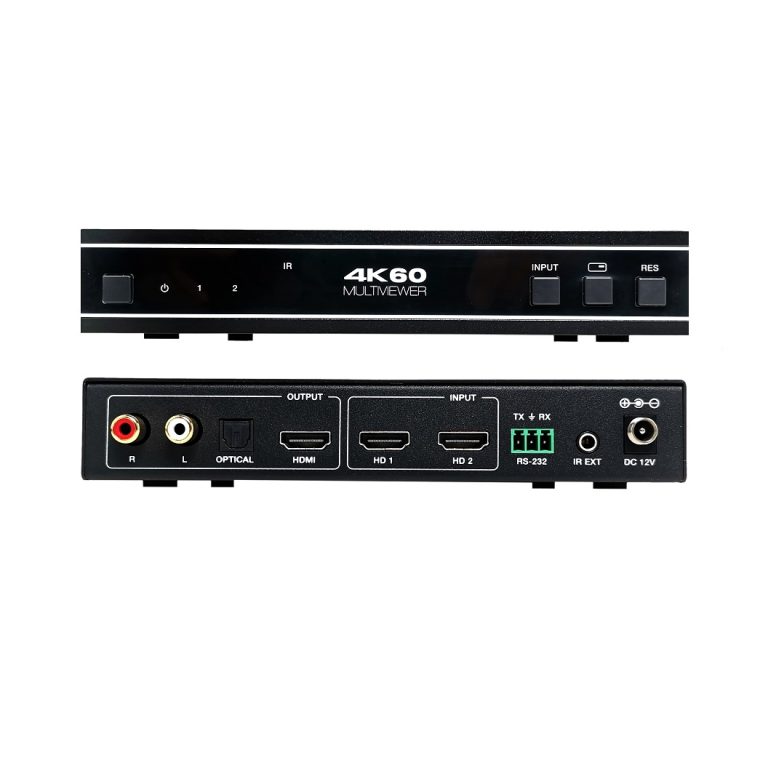

Connection
Input ports 2 x HDMI IN [Type A, 19-pin female]


Output ports

 1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUTPUT [RCA]
1 x OPTICAL OUTPUT [S/PDIF]
Control ports 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 175mm [W] x 100mm [D] x 30mm [H]
Weight 497g
Power Supply Input: AC 100 – 240V 50/60Hz

Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption 4.56W (Max)
Operating

Temperature

 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no-condensing)
