ATZ HUC02

Availability: Out of stock


4K HDMI to USB3.0 Video Capture Device w/HDMI loopout/audio input/earphone output


Share it:

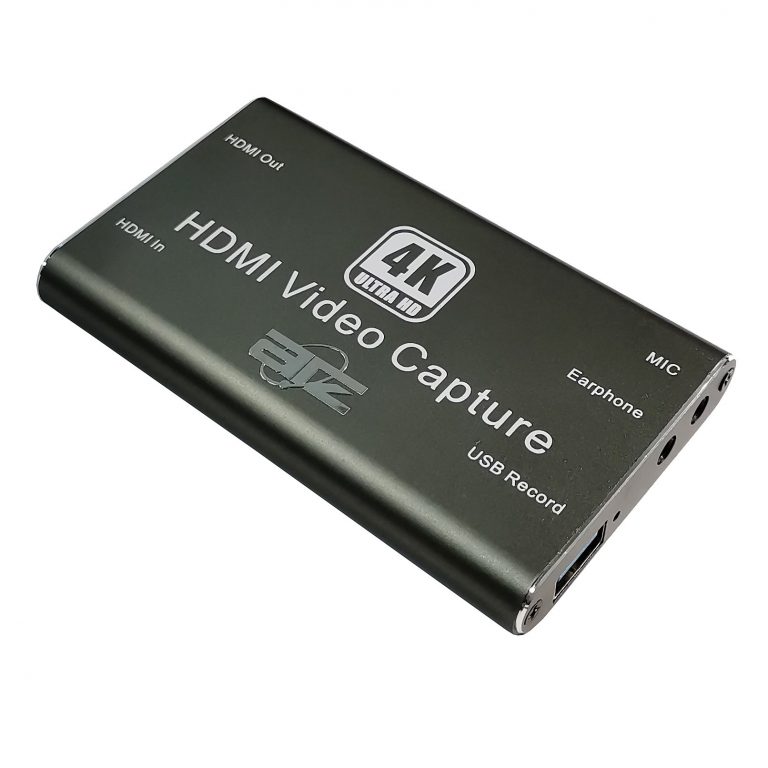

The ATZ HUC02 is a HDMI to USB video capture device. The product is designed to capture video and audio signal from the HDMI source. The content captured can be saved to the PC/Laptop through a USB cable.

Features:

  • Capture video and audio from HDMI sources.
  • HDMI video resolution is up to 4K@60Hz 4:4:4, HDR10
  • Supports HDMI loop output for display device connection.
  • Capture resolutions up to 1080p at 60 frames per second through USB port.
  • Compatible with multiple third-party applications, such as OBS/ VLC/Potplayer/YouTube on Windows, QuickTime on Mac OS X.
  • Supports microphone input and headphone output.
  • Powered from USB port, no external power supply required.
Weight 0.2 kg
Dimensions 16.5 x 13 x 3.5 cm
Description HDMI to USB Video Capture Device
Input (1) HDMI In, (1) Microphone
Input Connector (1) Type-A HDMI, (1) 3.5mm jack
Output (1) HDMI Out, (1) USB Record, (1) Earphone
Output Connector (1) Type-A HDMI, (1) Type-A USB, (1) 3.5mm jack
HDMI Standard 2.0
HDMI Input Resolution Up to 4K@60Hz 4:4:4, HDR10
HDMI Output Resolution Up to 4K@60Hz 4:4:4, HDR10
USB Output Color Space YUV2, RGB
HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Microphone Audio Format PCM 2.0
Headphone Audio Format PCM 2.0
OS Support Windows, Mac OS X, Linux.
Compatible Media Player OBS, Potplayer, VLC and so on.
Video Capture Format HDMI Source Captured Video by USB
4K@60Hz 4:4:4 1080p@60Hz/720p
1080p@60Hz 4:4:4 1080p@60Hz/720p
720p 720p
480 480
576 576
Operation Temperature -5 to +55℃ (+23° to +131°F)
Storage Temperature -25 to +70℃ (-13° to +158°F)
Relative Humidity 10% to 90%, Non-condensing
Dimension (W*H*D) 102mm x 13mm x 61mm
Net Weight 75g
