Description
Features:
- Integrated 8” LCD panel, support 1024×768 resolution.
- Support USB interface, VGA-USB
- Rear 2x USB 2.0 Type A, Sharing USB peripheral Device for computer (ex flash disk, hard driver, KB/Mouse).
- Durable 80-key keyboard and touch pad.
- Portable, Folding, Light weight for easy handheld.
- Hot pluggable, no software or driver required.
- Touch enable as option.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Part No. | ATZ LK08P | |
| Direct no. of Computers | 1 | |
| Maximum no. of Computers | 1 | |
| LCD | Size | 8” |
| Backlight | LED | |
| Resolution | 1024*768 | |
| Max.color | 262K | |
| Luminance | 250cd/m2 | |
| View Angle (H/V) | 150 / 150 | |
| Contrast Ratio | 700 : 1 | |
| Local Console | 1x HD DB-15 for VGA , 1x USB Type A for KB / Mouse | |
| USB HUB | 2x Rear USB 2.0 Type A for Peripheral USB Device | |
| Touch Screen | No (Only available under model: ATZ LK08P) | |
| KB/Mouse Emulation | USB | |
| Power | 100-240V AC 50/60Hz External Power Adapter | |
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|

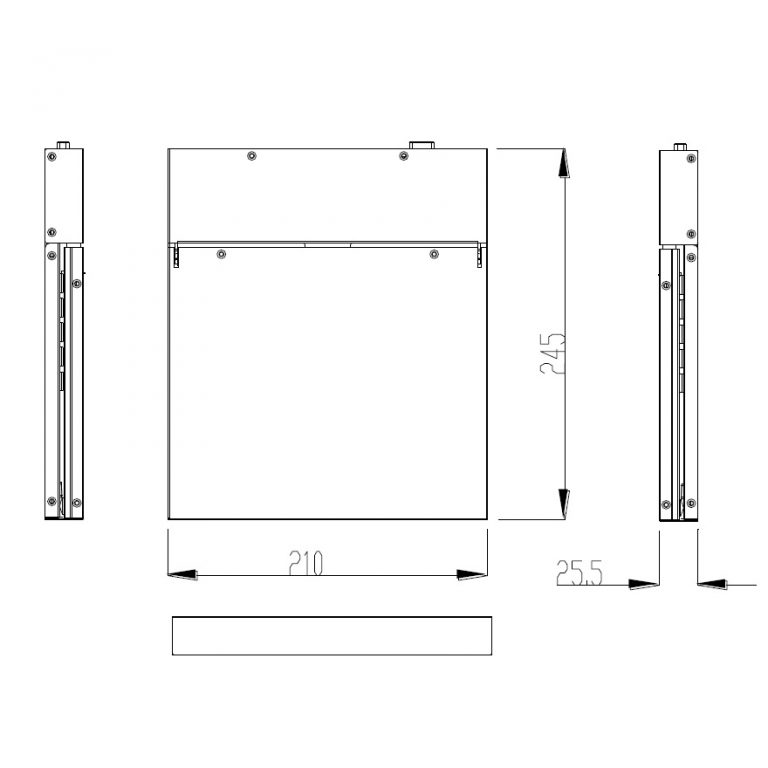

| Physical Dimensions / Net Weights | 210mm (W) x 245mm (D) x 25.5mm (H) / 1.8KG | |
| Packing Dimensions / Gross weights | 255mm (W) x 365mm (D) x 100mm (H) / 3.0KG | |
| Accessory | ||
| 1x Power Adapter 1x 1.8meter IEC Type Power Cord 1x 1.8 meter VGA cable 1x 1.8meter USB cable |
||
