ATZ LK17xxS-SD

$1,550.00$1,690.00

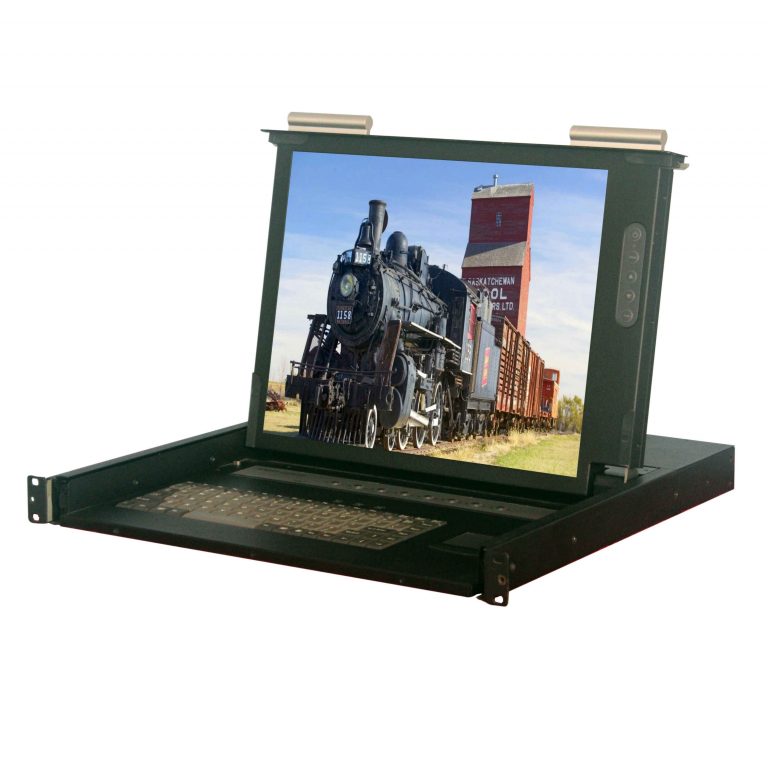

17″ LCD KVM Console Drawer (Short Depth) – 8/16 ports

Clear

Share it:

ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades.

The self-locking rails when in the fully extended open position and the ultra-convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.

Available in 17” A-Grade LCD panels, 8 or 16 port integrated KVM switch.

Features:

  • Short depth design suit for mobile rack and limited space.
  • Support combo interface, VGA-USB & VGA-PS/2.
  • Durable 88-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen-Display (OSD).
  • Dedicated daisy chain port to expand up to 240 servers.
Weight N/A
Dimensions N/A

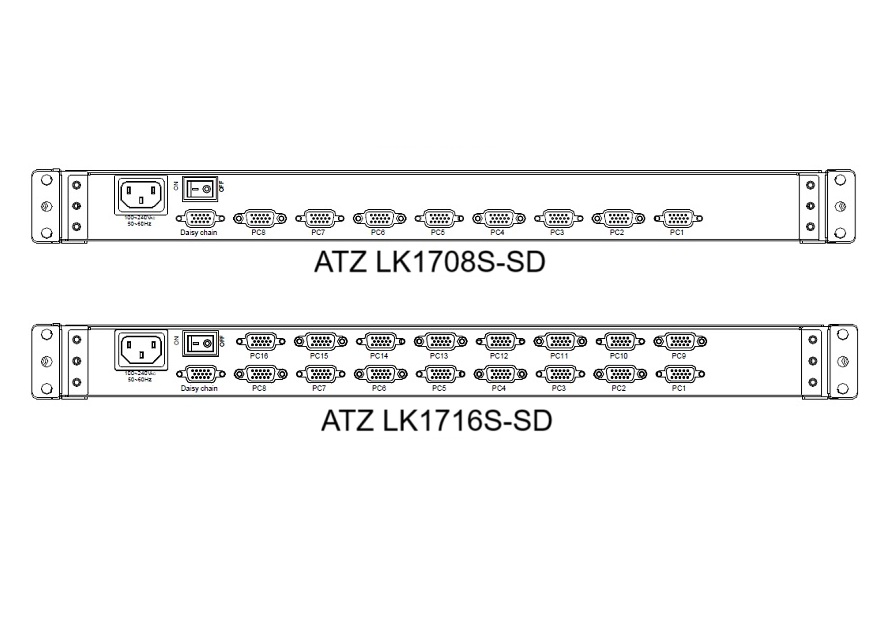

Part No. ATZ LK1708S-SD ATZ LK1716S-SD
Direct no. of Computers 8 16
Maximum no. of Computers 232(Daisy Chain) 240(Daisy chain)
LCD Size 17”
Backlight LED
Resolution 1280*1024
Max.color 16.7M
Luminance 250cd/m2
View Angel (H/V) 176 / 170
Contrast Ratio 1000 : 1
Port Selection Push Button, OSD or Hotkey
USB Local console / Expansion Slot N/A
KB/Mouse Emulation USB & PS2
Rack Depth 450mm to 650mm ( rack cabinet front rails to rear rails )
for 380mm depth (rear mounting bracket: ATZ BKT-457-620, is sold separately)
Power 100-240V AC 50/60Hz via IEC Type power cord
Environment Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% – 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 443x42x457.2mm (WxHxD) /14KG
Packing Dimensions / Gross weights 715x140x600mm (WxHxD) /17KG
