Description
ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades.

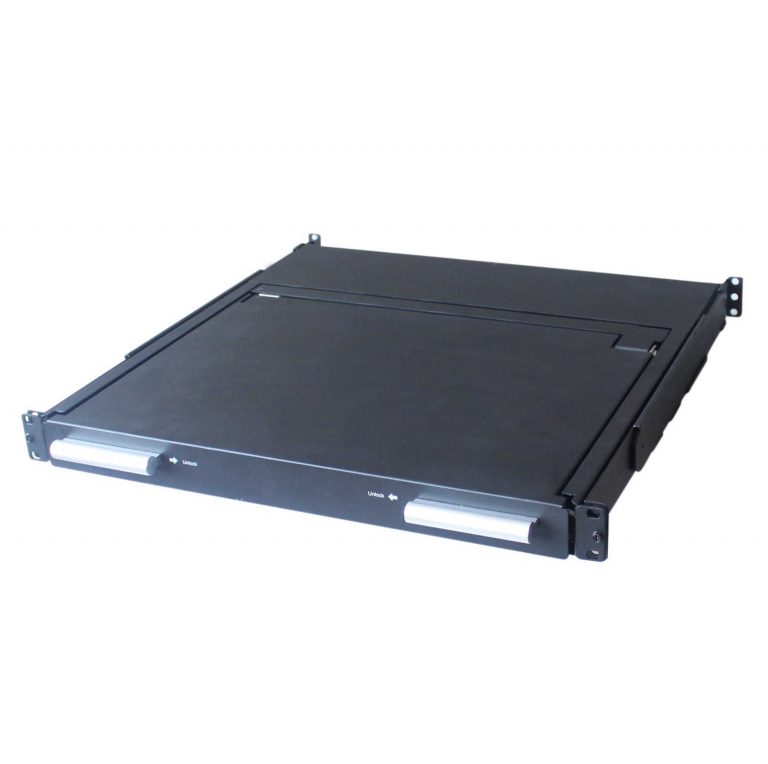

The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.

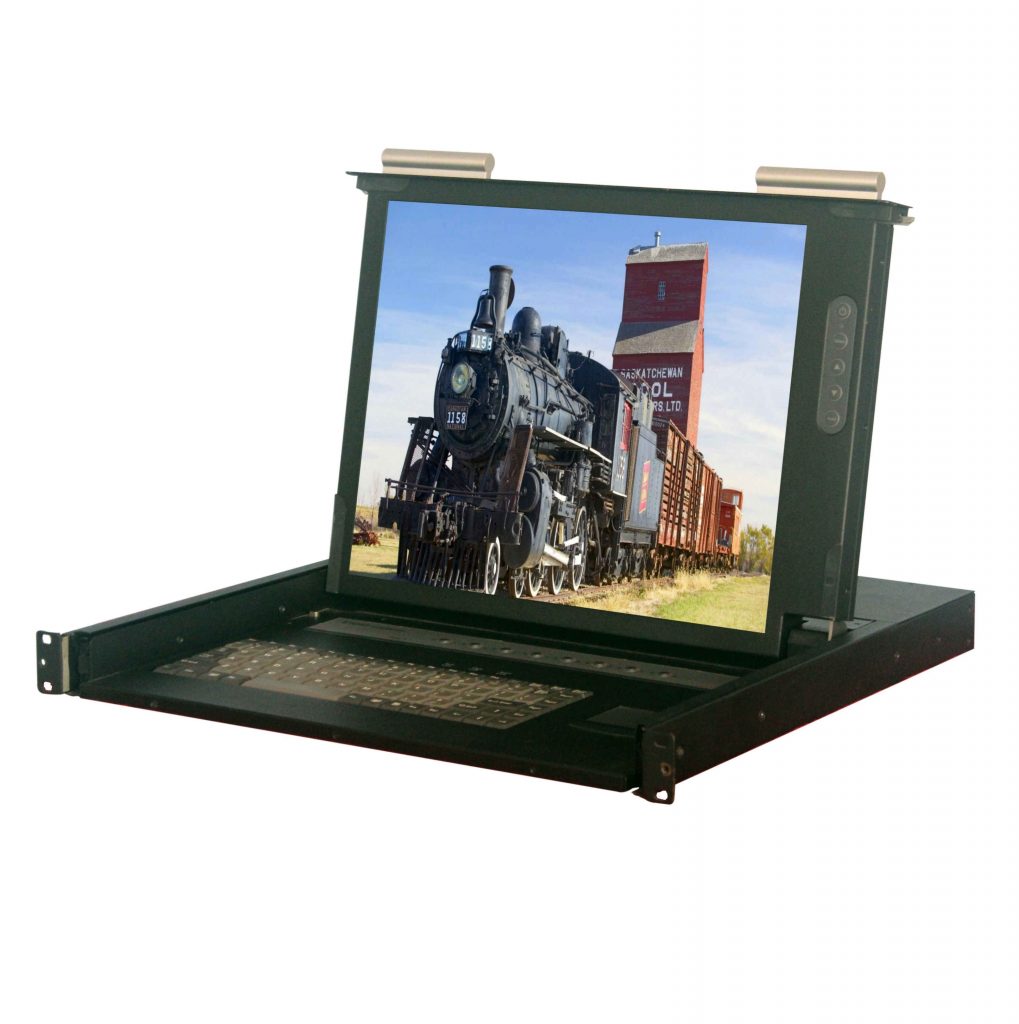

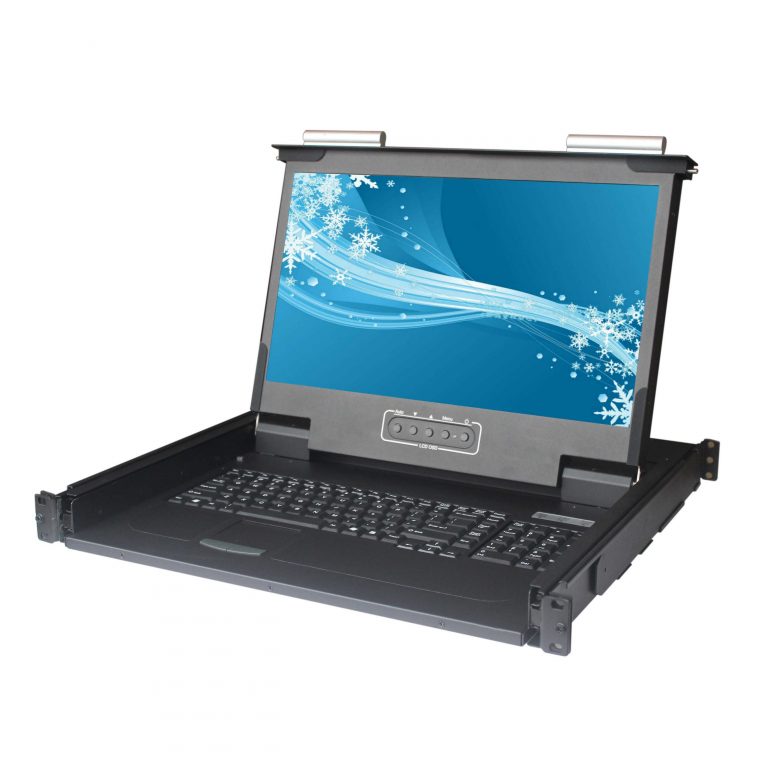

Available with 17.3” Full HD A-Grade LCD panel, 8 or 16 port integrated KVM switch.
Features:
- Support combo interface, VGA-USB & VGA-PS/2.
- LCD panel A-Grade
- Short depth design suit for mobile rack and limited space.
- Durable 88-key keyboard and touch pad.
- Quick and simple installation.
- Heavy Duty Steel housing
- Self-locking and auto release rails for ultra-convenience.
- Port selection via push buttons or On-Screen-Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

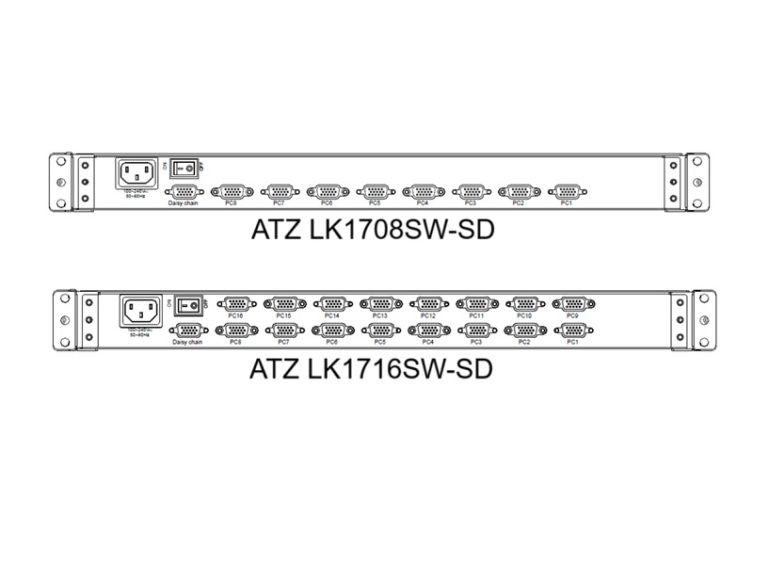

| Part No. | ATZ LK1708SW-SD | ATZ LK1716SW-SD | |
| Direct no. of Computers | 8 | 16 | |
| Maximum no. of Computers | 232(Daisy Chain) | 240(Daisy chain) | |
| LCD | Size | 17.3” | |
| Backlight | LED | ||
| Resolution | 1920*1080 Full HD ( support resolution up to 1920×1200 ) | ||
| Max.color | 262K | ||
| Luminance | 300cd/m2 | ||
| View Angel (H/V) | 140 / 120 | ||
| Contrast Ratio | 650 : 1 | ||
| Port Selection | Push Button, OSD or Hotkey | ||
| USB Local console / Expansion Slot | N/A | ||
| KB/Mouse Emulation | USB & PS2 | ||
| Rack Depth | 450 to 650mm ( rack cabinet front rails to rear rails ) | ||
| for 380mm depth (rear mounting bracket: ATZ BKT-457-620, is sold separately | |||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | ||
| Environment | Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||
| Physical Dimensions / Net Weights | 443x42x457.2mm (WxHxD) /14KG | ||
| Packing Dimensions / Gross weights | 605x168x700mm (WxHxD) /17KG | ||
| Accessory | |||
| 1x 1.8meter IEC Type Power Cord 1x 1.8meter VGA & PS2 Cable 1x 1.8meter USB A Type Cable (for ATZ LK1701SW-SD ) |
|||
| Related Items | |||
| ATZ-KCU-1.8 | 1.8meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ-KCU-3 | 3.0meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ-KCU-5 | 5.0meter 2-in-1 KVM Cable-USB & VGA | ||
| ATZ KCP-1.8 | 1.8meter 3-in-1 KVM Cable-PS/2 & VGA | ||
| ATZ KCP-3 | 3.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||
| ATZ KCP-5 | 5.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||
