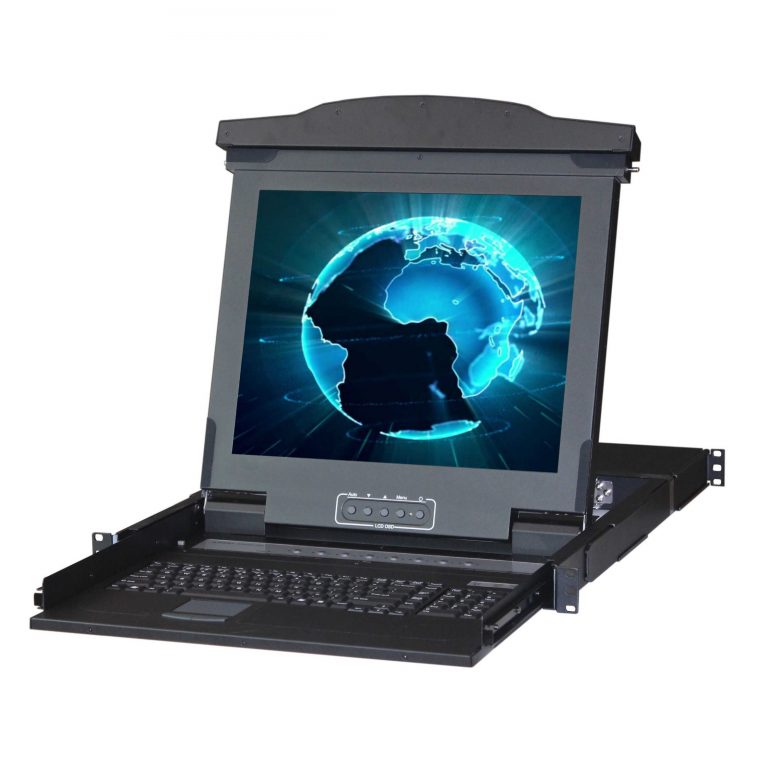

ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self-locking rails when in the fully extended open position and the ultra-convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation. Available with 17” or 19” A-Grade LCD panels, combo Single, 8 or 16 port integrated KVM switch & with one extra local USB Console.
Features:
Support combo interface, VGA-USB & VGA-PS/2.
LCD panel A-Grade
Single-Rail architecture in Heavy Duty Steel housing.
Durable 104-key keyboard and touch pad.
Quick and simple installation.
Heavy Duty Steel housing
Self-locking and auto release rails for ultra-convenience.
Port selection via push buttons or On-Screen-Display (OSD).
Dedicated daisy chain port to expand up to 240 servers.
Extra local console for optional simultaneous access to KVM.
Access Control List (ACL) security function for up to 8 independent user accounts.

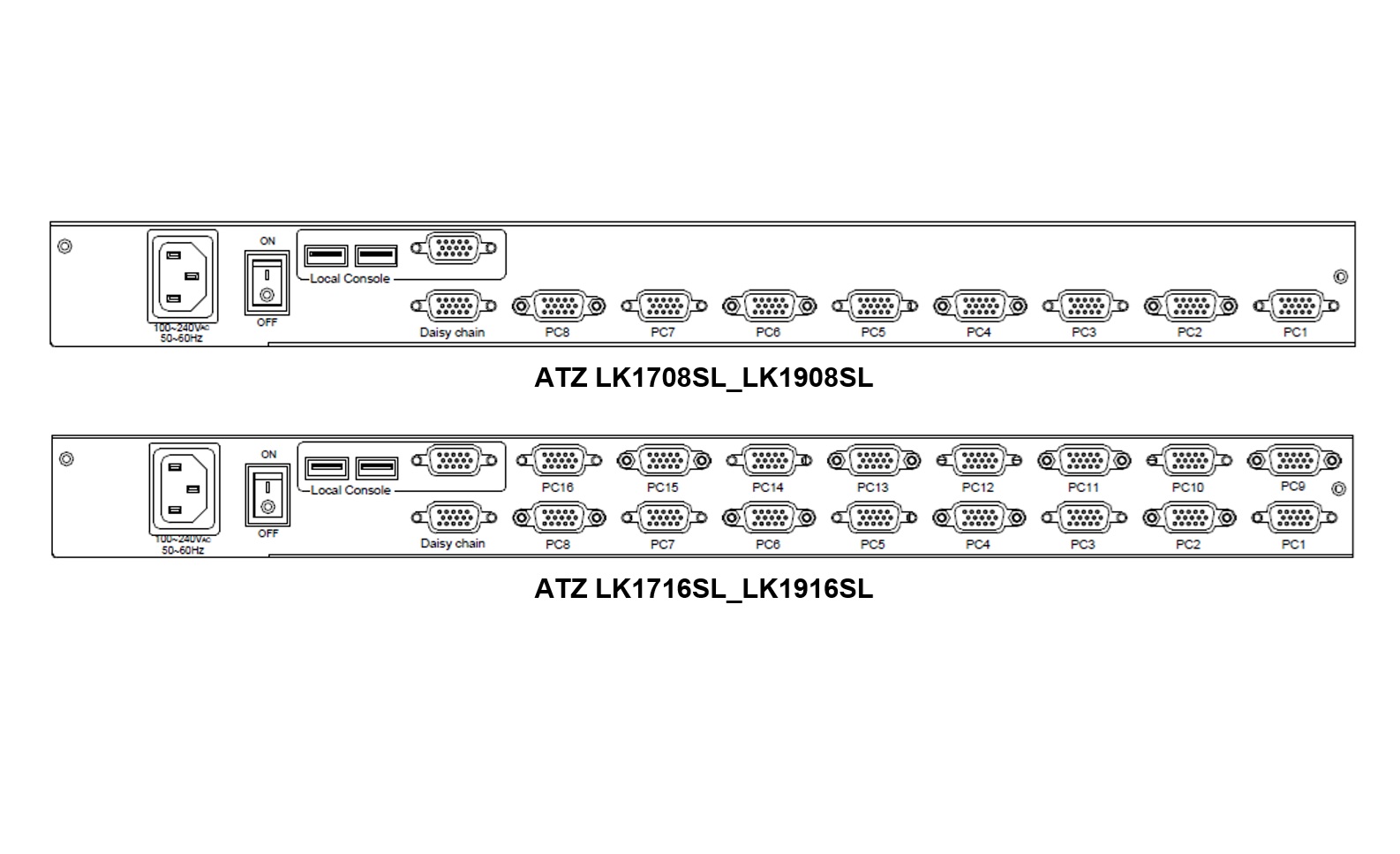

Part No.
ATZ LK1708SL
ATZ LK1716SL
ATZ LK1908SL
ATZ LK1916SL
Direct no. of Computers
8
16
8
16
Maximum no. of Computers
232(Daisy Chain)
240(Daisy chain)
232(Daisy Chain)
240(Daisy chain)
L C D
Size
17”
19”
Backlight
LED
LED
Resolution
1280*1024
1280*1024
Max. color
16.7M
16.7M
Luminance
250cd/m2
250cd/m2
View Angel (H/V)
176 / 170
170 / 160
Contrast Ratio
1000 : 1
1000 : 1
Port Selection
N/A
Push Button, OSD or Hotkey
N/A
Push Button, OSD or Hotkey
USB Local Console
Yes, USB x2 for KB/ Mouse, VGA x1
KB/Mouse Emulation
USB & PS2
Rack Depth
500mm to 1100mm ( rack cabinet front rails to rear rails )
