ATZ LK2101_2401WPD-PV
21.5″/ 23.8″ FHD LCD Console Drawer + multi input DVI, VGA, Audio, USB Hub (Screen Pivot version)
Features:
- 1U 21.5/ 23.8 inch widescreen LCD Console Drawer
- Screen Pivot with DVI & VGA Port
- 1920 x 1200 WUXGA Ultra high resolution
- Support FHD with 1080p resolution.
- Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral
- Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 104-key keyboard with touch pad mouse.
- USB 2.0 Keyboard & Mouse
- Self-locking and auto release rails for ultra convenience.
- Build in 2x 2 watts speakers
Optional:
- Composite Video input
- HDMI or Display Port input
- 3G / HD / SD –SDI Broadcast grade input
- 48V, 24V or 12V DC Power
| Weight |
N/A |
| Dimensions |
N/A |
| Part No. |
ATZ LK2101WPD-PV |
| No. of ports |
1 |
| KVM Connectors |
DVI-D , VGA , USB |
| LCD |
Size |
21.5 inch FULL HD display |
| Backlight |
LED |
| Resolution |
1920*1080 ( support resolution up to 1920*1200 ) |
| Max.color |
16.7M |
| Luminance |
250 cd/m2 |
| View Angle (H/V) |
178 / 178 |
| Contrast Ratio |
3000 : 1 |
| Port Selection |
N/A |
| USB HUB |
Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device |
| Audio |
1 x 3.5mm Audio jack |
| KB/Mouse Emulation |
USB 2.0 |
| Rack Depth ( rack cabinet front rails to rear rails ) |
600mm to 1200mm |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Environment |
Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% – 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
|

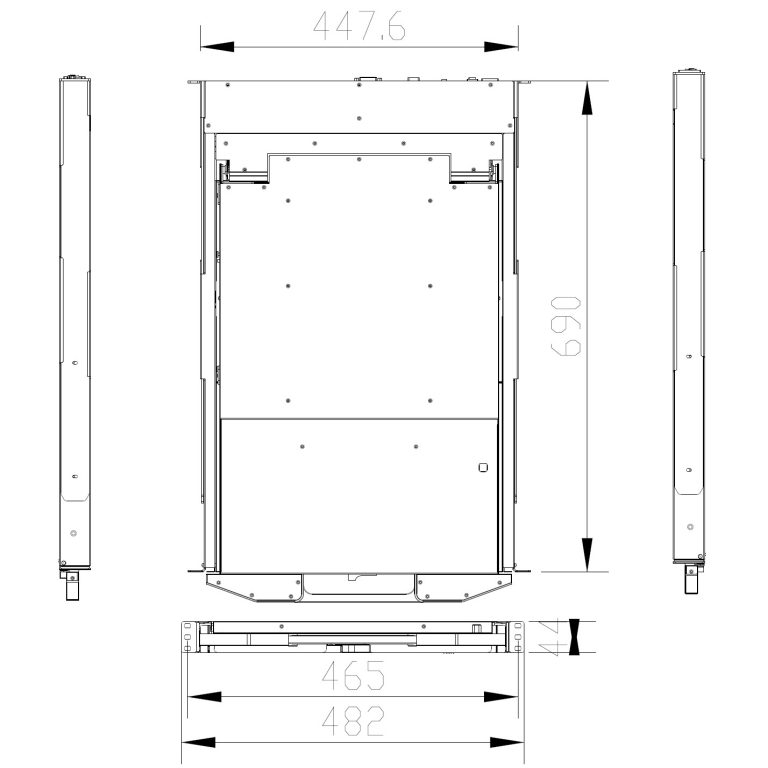

| Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) |
448x44x690mm / 18 KG |
| Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) |
580x190x840mm / 22 KG |
| Accessory |
1x 1.8meter IEC Type Power Cord
1x 1.8meter DVI Cable
1x 1.8meter VGA Cable
1x 1.8meter USB Cable
1x 1.8meter Audio Cable |
| Part No. |
ATZ LK2401WPD-PV |
| No. of ports |
1 |
| KVM Connectors |
DVI-D , VGA , USB |
| LCD |
Size |
23.8 inch FULL HD display |
| Backlight |
LED |
| Resolution |
1920*1080 ( support resolution up to 1920*1200 ) |
| Max.color |
16.7M |
| Luminance |
250 cd/m2 |
| View Angle (H/V) |
178 / 178 |
| Contrast Ratio |
1000 : 1 |
| Port Selection |
N/A |
| USB HUB |
Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device |
| Audio |
1 x 3.5mm Audio jack |
| KB/Mouse Emulation |
USB 2.0 |
| Rack Depth ( rack cabinet front rails to rear rails ) |
600mm to 1200mm |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Environment |
Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% – 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
|
| Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) |
448x44x690mm / 18 KG |
| Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) |
580x190x840mm / 22 KG |
| Accessory |
1x 1.8meter IEC Type Power Cord
1x 1.8meter DVI Cable
1x 1.8meter VGA Cable
1x 1.8meter USB Cable
1x 1.8meter Audio Cable |
