Name: ATZ LK2101_LK2401WPD
Availability: InStock

ATZ LK2101_LK2401WPD

$2,230.00 – $2,380.00

21.5″/ 23.8″ FHD LCD Console Drawer + multi input (DVI, VGA, Audio, USB Hub (Screen right side open)

Add to Compare

Features:

1U 21.5 or 23.8 inch widescreen LCD Console Drawer (Screen right side open)
DVI & VGA Port
1920 x 1200 WUXGA Ultra high resolution
Support FHD with 1080p resolution.
Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral
Device for computer (ex, flash disk, hard driver, KB/Mouse)
104-key keyboard with touch pad mouse.
USB 2.0 Keyboard & Mouse
Self-locking and auto release rails for ultra convenience.
Build in 2x 2 watts speakers

Optional:

Weight	N/A
Dimensions	N/A

Part No.		ATZ LK2101WPD
No. of ports		1
KVM Connectors		DVI-D , VGA , USB
LCD	Size	21.5 inch FULL HD display
	Backlight	LED
	Resolution	19201080 ( support resolution up to 19201200 )
	Max. color	16.7M
	Luminance	250 cd/m2
	View Angel (H/V)	178 / 178
	Contrast Ratio	3000 : 1
Port Selection		N/A
USB HUB		Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device
Audio		1 x 3.5mm Audio jack
KB/Mouse Emulation		USB 2.0
Rack Depth ( rack cabinet front rails to rear rails )		600mm to 1100mm
Power		100-240V AC 50/60Hz via IEC Type power cord
Environment		Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP

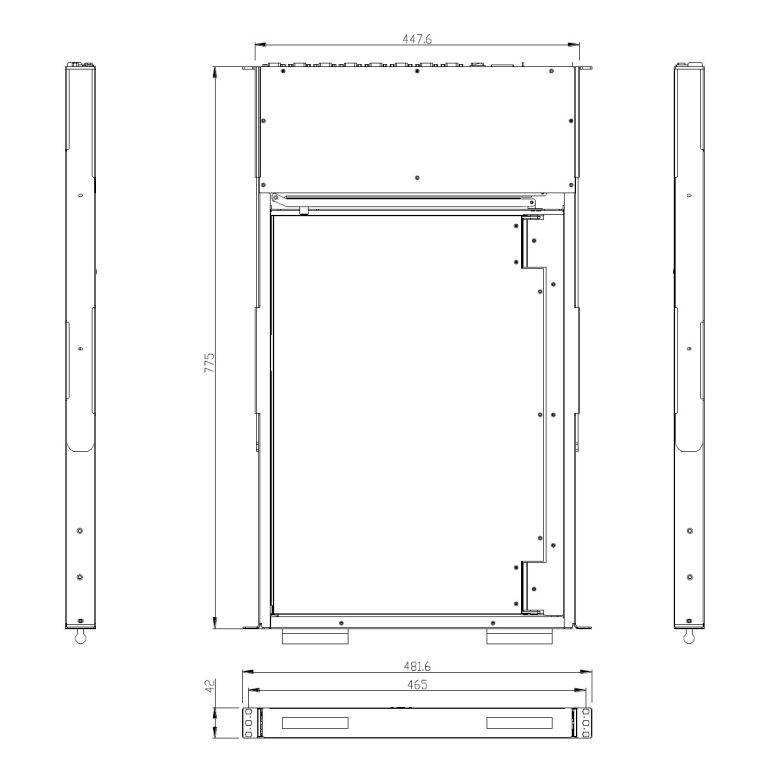

Physical Dimensions ( W x H x D ) / Net Weights ( KGs )		448x42x775mm / 18 KG
Packing Dimensions ( W x H x D ) / Gross weights ( KGs )		715x140x915mm / 22 KG
Accessory
1x 1.8meter IEC Type Power Cord 1x 1.8meter DVI Cable 1x 1.8meter VGA Cable 1x 1.8meter USB Cable 1x 1.8meter Audio Cable

Part No.		ATZ LK2401WPD
No. of ports		1
KVM Connectors		DVI-D , VGA , USB
LCD	Size	23.8 inch FULL HD display
	Backlight	LED
	Resolution	19201080 ( support resolution up to 19201200 )
	Max.color	16.7M
	Luminance	250 cd/m2
	View Angle (H/V)	178 / 178
	Contrast Ratio	1000 : 1
Port Selection		N/A
USB HUB		Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device
Audio		1 x 3.5mm Audio jack
KB/Mouse Emulation		USB 2.0
Rack Depth ( rack cabinet front rails to rear rails )		600mm to 1100mm
Power		100-240V AC 50/60Hz via IEC Type power cord
Environment		Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP
Physical Dimensions ( W x H x D ) / Net Weights ( KGs )		448x42x775mm / 19.5 KG
Packing Dimensions ( W x H x D ) / Gross weights ( KGs )		715x140x915mm / 23 KG
Accessory
1x 1.8meter IEC Type Power Cord 1x 1.8meter DVI Cable 1x 1.8meter VGA Cable 1x 1.8meter USB Cable 1x 1.8meter Audio Cable
