Description

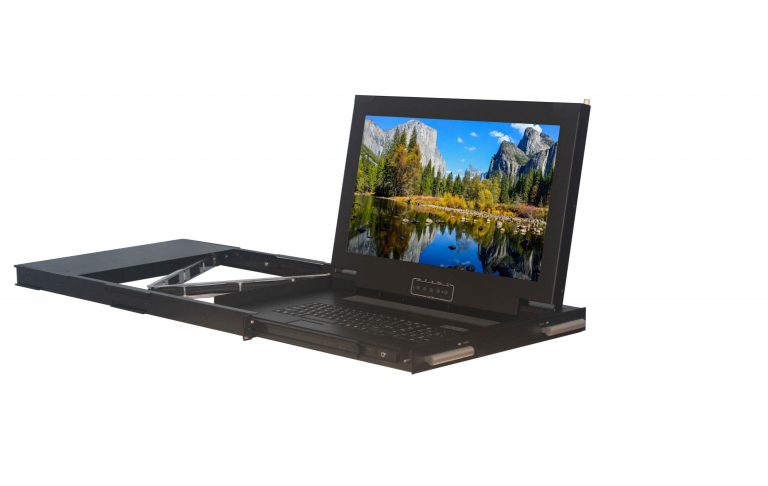

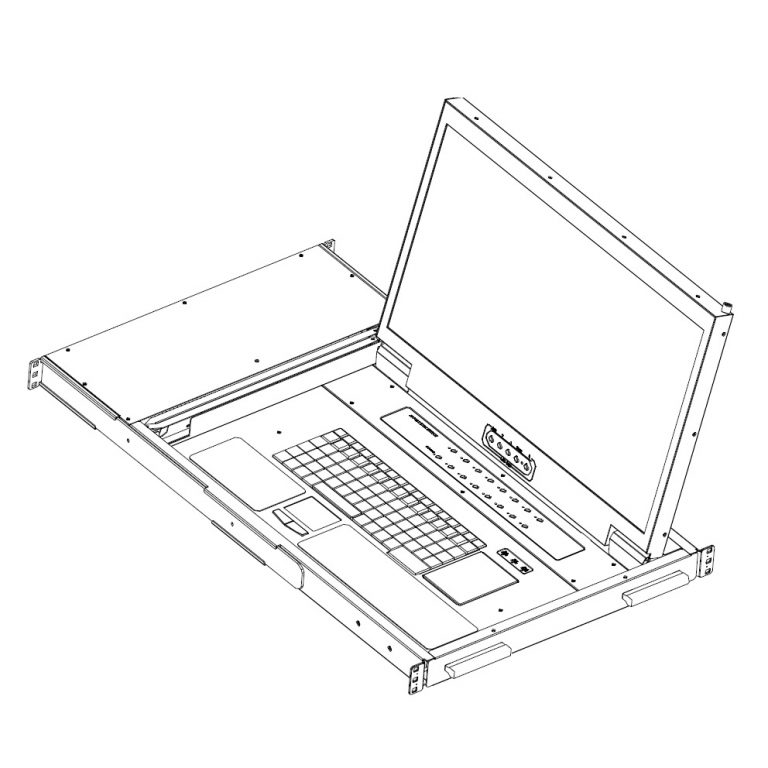

ATZ range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades.
The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.
Configure with 21.5 or 23.8 inch A-Grade FHD LCD panels, combo DB15 single, 8 or 16 port integrated KVM switch & Extra USB local console.
Features:
- Support combo interface, VGA-USB & VGA-PS/2.
- LCD panel A-Grade
- Extra USB Local console to add local KB/Mouse & VGA.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Heavy Duty Steel housing
- Self-locking and auto release rails for ultra convenience.
- Port selection via push buttons or On-Screen-Display (OSD).
- Dedicated daisy chain port to expand up to 240 servers.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

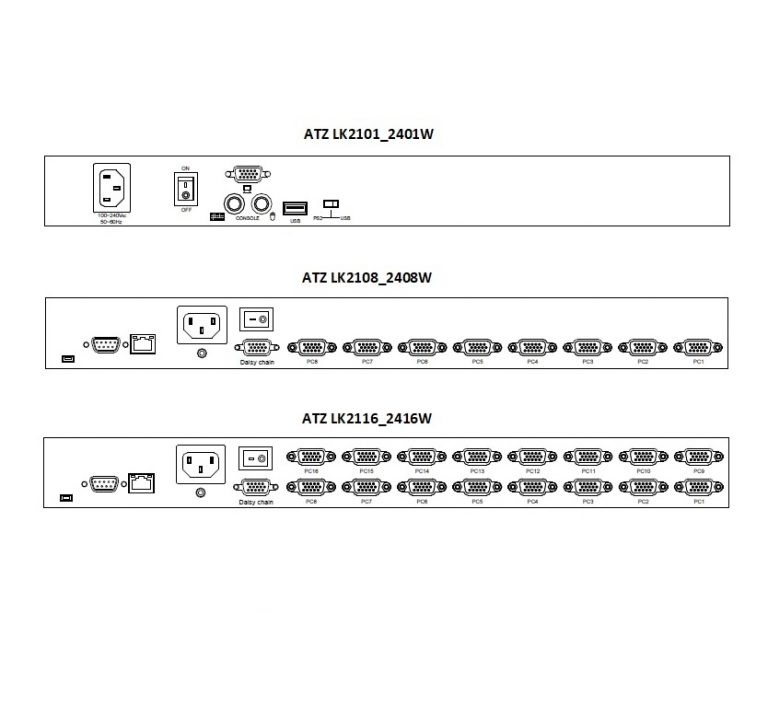

| Part No. | ATZ LK2108W | ATZ LK2116W | ATZ LK2408W | ATZ LK2416W | |
| Direct no. of Computers | 8 | 16 | 8 | 16 | |
| Maximum no. of Computers | 232(Daisy Chain) | 240(Daisy chain) | 232(Daisy Chain) | 240(Daisy chain) | |
| L C D | Size | 21.5” | 23.8” | ||
| Backlight | LED | LED | |||
| Resolution | 1920*1080 FULL HD (up to 1920*1200) | 1920*1080 FULL HD (up to 1920*1200) | |||
| Max.color | 16.7M | 16.7M | |||
| Luminance | 250cd/m2 | 250cd/m2 | |||
| View Angel (H/V) | 178 / 178 | 178 / 178 | |||
| Contrast Ratio | 3000 : 1 | 1000 : 1 | |||
| Port Selection | Push Button, OSD or Hotkey | Push Button, OSD or Hotkey | |||
| USB Local console | 2x USB (Keyboard/Mouse) + 1x VGA | ||||
| KB/Mouse Emulation | USB & PS2 | ||||
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | ||||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | ||||
| Environment | Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||||

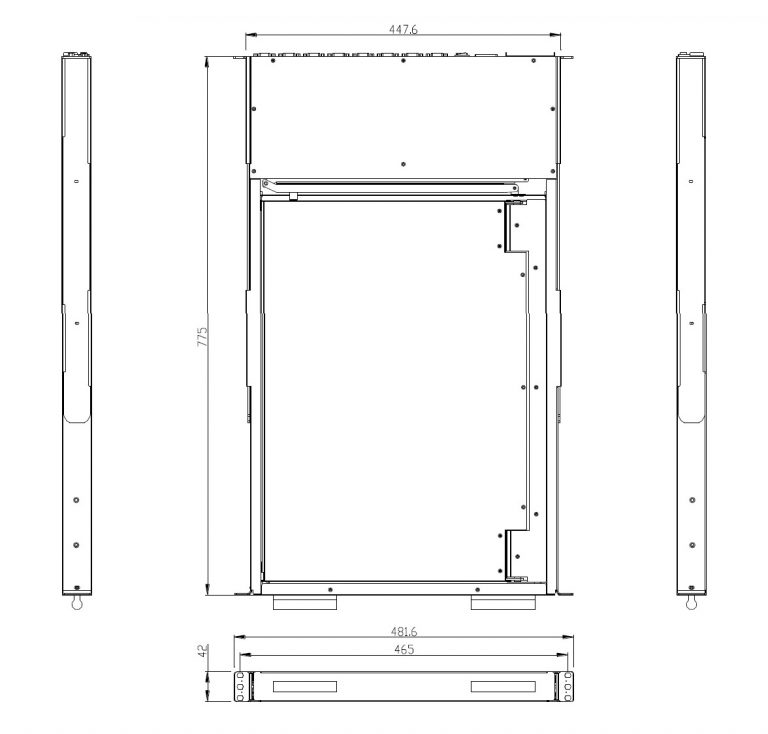

| Physical Dimensions / Net Weights | 448x42x775mm (WxHxD) / 18KG | 448x42x775mm (WxHxD) / 19.5KG | |||
| Packing Dimensions / Gross weights | 730x260x880mm / 24 KG | 730x260x880mm / 25 KGs | |||
| Accessories | |||||
| 1x 1.8meter IEC Type Power Cord | |||||
| Related items | |||||
| ATZ KCU-1.8 | 1.8meter 2-in-1 KVM Cable-USB & VGA (Bundled) | ||||
| ATZ KCU-3 | 3.0meter 2-in-1 KVM Cable-USB & VGA | ||||
| ATZ KCU-5 | 5.0meter 2-in-1 KVM Cable-USB & VGA | ||||
| ATZ KCP-1.8 | 1.8meter 3-in-1 KVM Cable-PS/2 & VGA | ||||
| ATZ KCP-3 | 3.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||||
| ATZ KCP-5 | 5.0meter 3-in-1 KVM Cable-PS/2 & VGA | ||||
