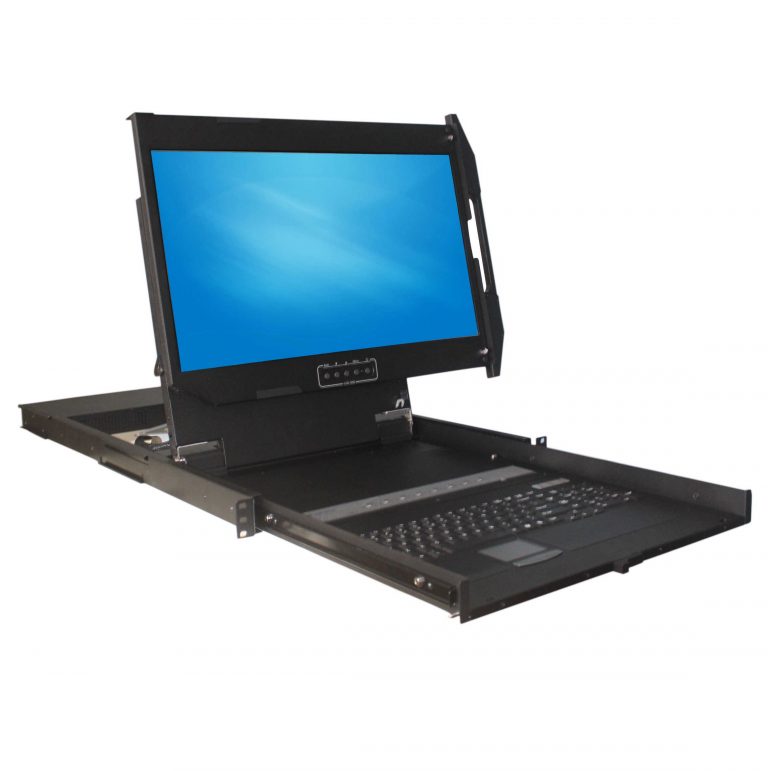

23.8” 4K-HDMI v2.0 (3840 x 2160) 8 ports LCD KVM Console (Screen Pivot version)
Description
Features:

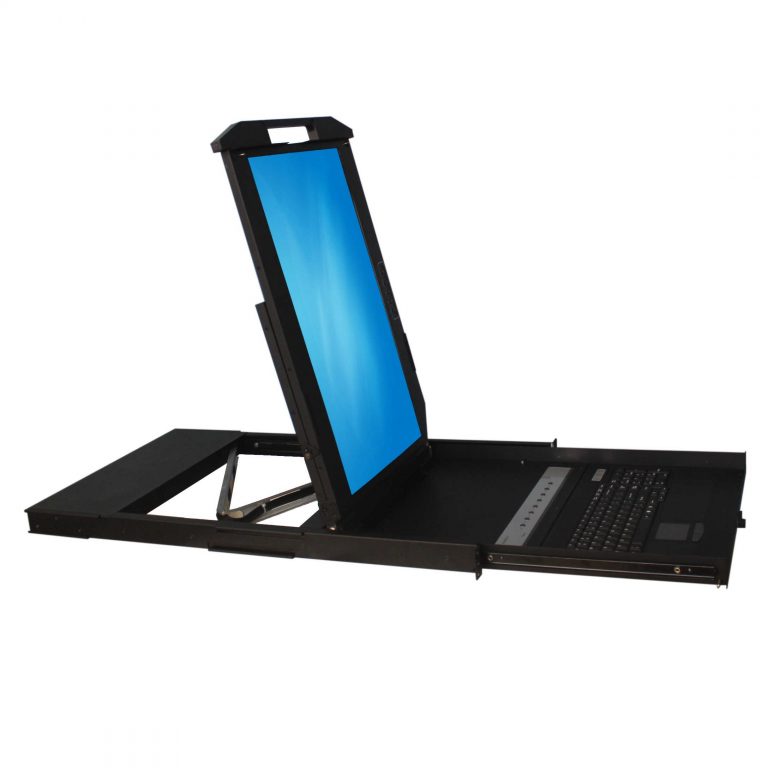

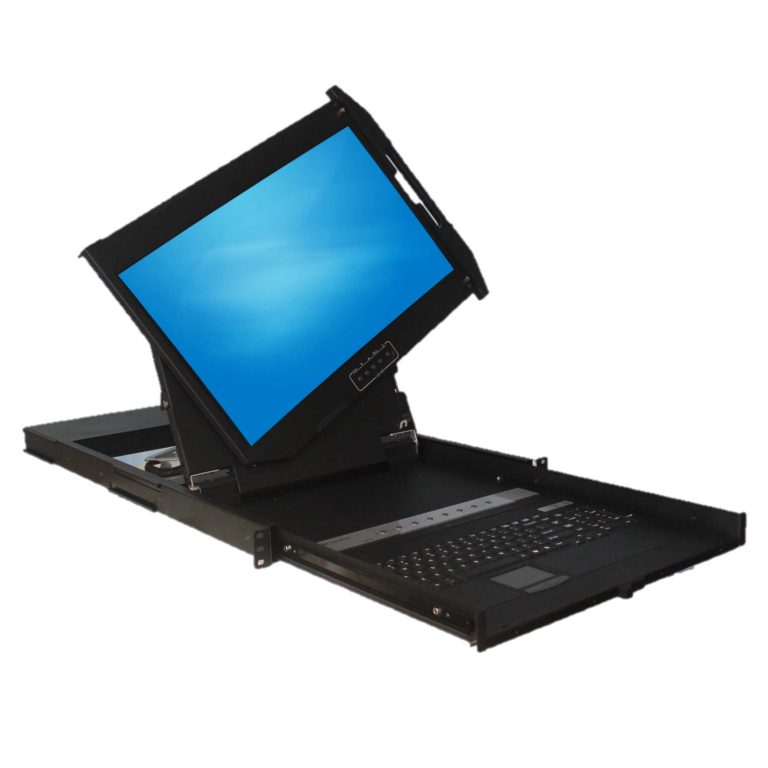

- Facilitated by screen rotate function
- Support USB-HDMI interface
- 8 ports HDMI 2.0 input
- Front 1x USB, Rear 1x USB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- Additional two USB console port to add local KB/Mouse
- Build in 2x 2 watts stereo speakers
- Durable 104-key keyboard and touch pad
- Quick and simple installation

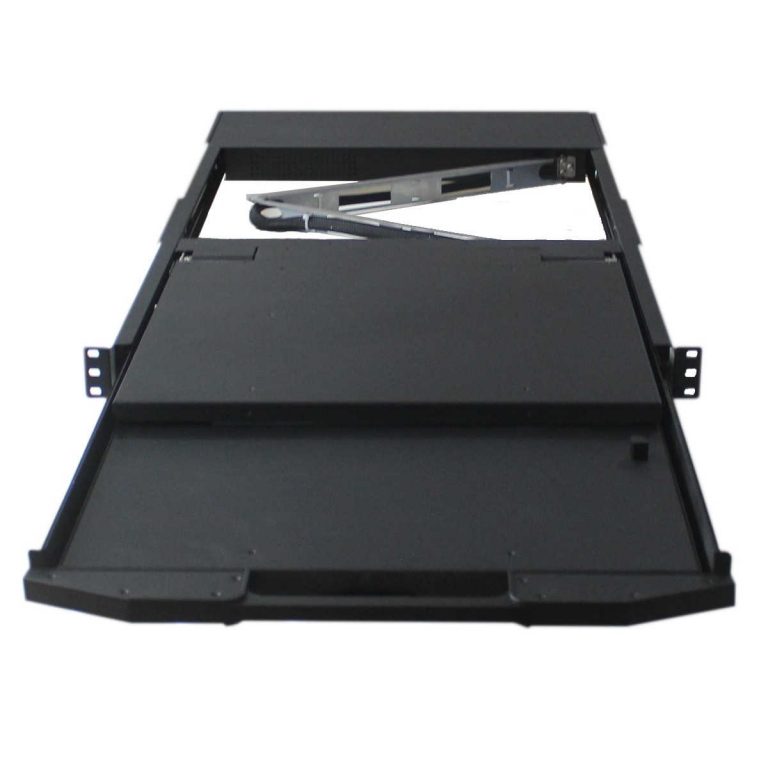

- Self-locking and auto release rails for ultra-convenience
- Port selection via push buttons or hotkey.
| Part No. | ATZ LK2408WHD-PV | ATZ LK2408WUHD-PV | |
| Direct no. of Computers | 8 | 8 | |
| Maximum no. of Computers | 8 | 8 | |
| L C D | Size | 23.8 inch FULL HD display | 23.8 inch 4K display |
| Backlight | LED | LED | |
| Resolution | 1920*1080 FULL HD (up to 1920*1200) | 4K resolution 3840 x 2160 | |
| Max.color | 16.7M | 1.07 Billion colors | |
| Luminance | 250cd/m2 | 300cd/m2 | |
| View Angle (H/V) | 178 / 178 | 178 / 178 | |
| Contrast Ratio | 3000 : 1 | 1000 : 1 | |
| Port Selection | Push Button, OSD or Hotkey | ||
| USB Local console | Yes , USB x2 for KB/ Mouse | ||
| USB HUB | 1x Front , 1xRear USB 2.0 Type A for Peripheral USB Device | ||
| KB/Mouse Emulation | USB | ||
| Rack Depth | 600mm to 1200mm ( rack cabinet front rails to rear rails ) | ||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | ||
| Environment | Operation temp: 0 to 50℃
Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||

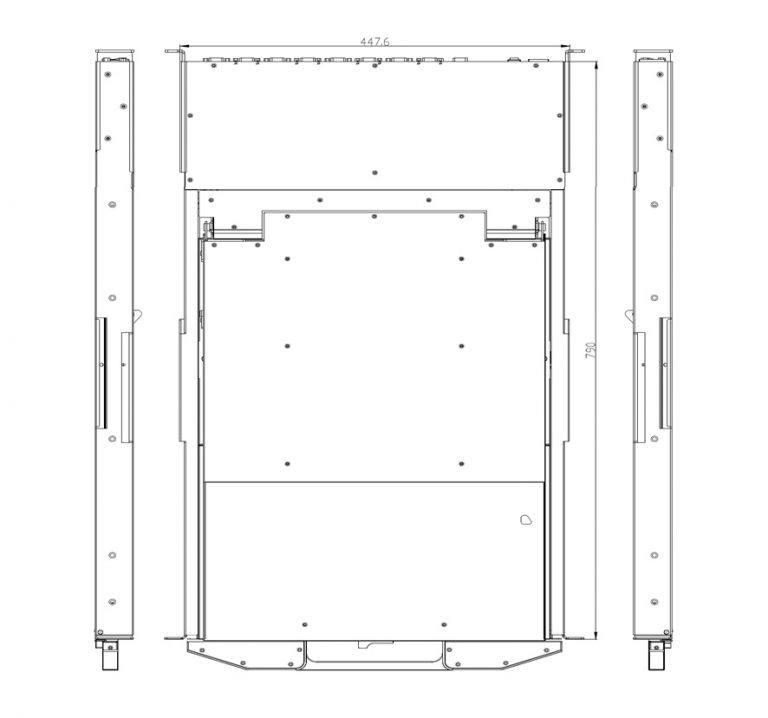

| Physical Dimensions / Net Weights | 448 x 44 x 790mm (WxHxD) / 19.5KG | ||
| Packing Dimensions / Gross weights | 580 x 190 x 840mm (WxHxD) / 23KG | ||
| Accessory | |||
| 1x 1.8meter IEC Type Power Cord 8x 2 meter HDMI v2.0 Cable (ATZ HDMI-CABLE-V2.0-2M) 8x 2 meter USB Cable (ATZ USBAB2M) |
|||
