ATZ LKD19D2V

$8,470.00

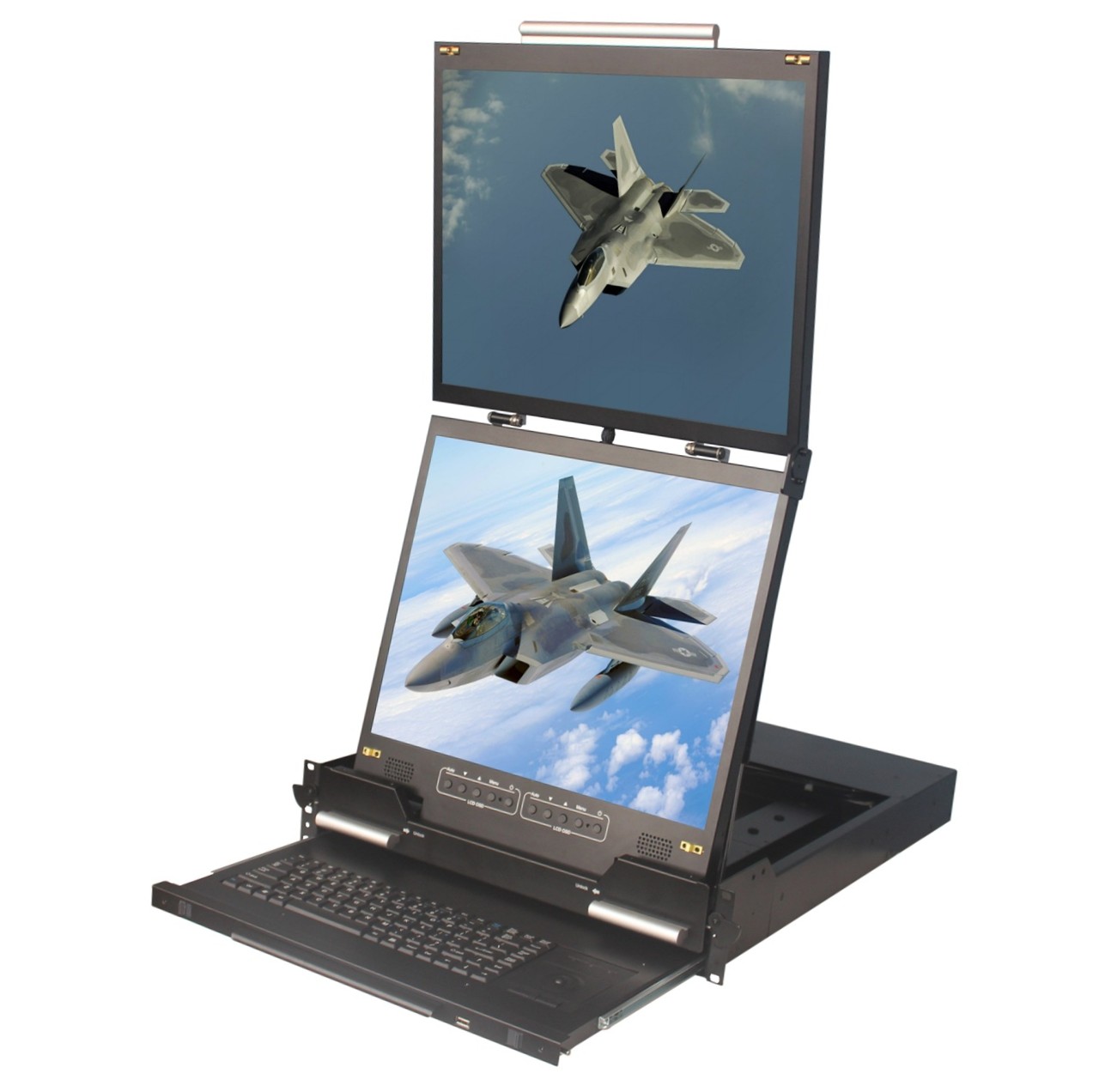

19″ Dual Vertical Screen LCD Console Drawer + multi input DVI-D/VGA/Audio/USB Hub – Dual Rail

Compare
SKU: ATZ LKD19D2V Category:

Description

Features:

  • 2U dual vertical 19 inch LCD Console Drawer
  • LCD panel A-Grade
  • Heavy Duty Steel housing
  • 2 gas struts to support LCD when open
  • Dual DVI & VGA Port
  • 1280 x 1024 resolution
  • Dual rail design, capable the LCD screen and keyboard tray
  • Operated independently.
  • Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral
  • Device for computer (ex, flash disk, hard driver, KB/Mouse)
  • 87-key keyboard with trackball mouse
  • USB 2.0 Keyboard & Mouse
  • Build in 2x 2 watts speakers

Optional:

  • Composite Video input
  • HDMI or Display Port input
  • 3G / HD / SD –SDI Broadcast grade input
  • 9~36V DC Power

Additional information

Weight 19 kg
Dimensions 73.5 x 59 x 21.5 cm

Part No.

ATZ LKD19D2V

No. of ports

1

KVM Connectors

2 x DVI-D & 2x VGA / 1 x USB for KB & Mouse / 1x Audio

LCD

Size

Dual 19 inch

Backlight

LED

Resolution

1280*1024

Max.color

16.7M

Luminance

350 cd/m2

View Angel (H/V)

170 / 170

Contrast Ratio

1000 : 1

Port Selection

N/A

USB HUB

Yes , Front x1 & Rear x USB 2.0 Type A for USB Peripheral Device

Audio

1 x 3.5mm Audio jack

KB/Mouse Emulation

USB 2.0

Rack Depth ( rack cabinet front rails to rear rails )

610mm to 940mm

Power

100-240V AC 50/60Hz via IEC Type power cord

Environment

Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% – 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP

Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) 443x87x609mm / 21.0
Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) 870x710x340mm / 29.0
Accessory
1x 1.8meter IEC Type Power Cord
2x 1.8meter DVI Cable/ 2x 1.8meter VGA Cable
1x 1.8meter USB Cable
1x 1.8meter Audio Cable
