$4,705.00

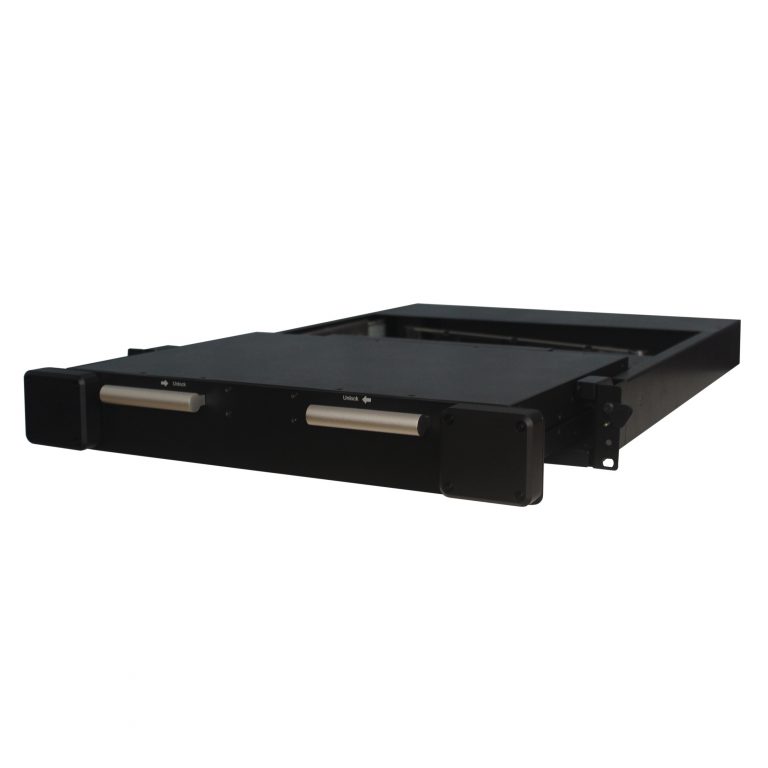

17.3″ FHD Dual Screen LCD Drawer + multi input DVI/VGA/Audio/USB Hub – Dual Rail (No Keyboard/Mouse)
Description
Features:
- 2U foldable dual 17.3 inch widescreen LCD display Drawer (No Keyboard/Mouse)
- Dual DVI & VGA Port
- 1920 x 1080 WUXGA Ultra high resolution
- Support FHD with 1080p resolution.
- Build in 2x 2 watts speakers
- Independent front osd control buttons to optimized display
- Hidden & Independent retractable tray for ultra convenience
Option:
- HDMI or Display port input
- 3G/ HD/ SD-SDI broadcast grade input
- Composite video input
- DC 9~36 V power input
- AR Hardness glass
- Touch screen
Additional information
| Weight | 17 kg |
|---|---|
| Dimensions | 73.5 x 59 x 21.5 cm |
| User Controls Interface: | |
| Power ON / OFF via Front Button | |
| Power Mode Status LED indicator | |
| OSD ( On Screen Display ) Buttons | |
| LCD Characteristics : | |
| Screen Size | Dual 17.3” |
| Backlight Type | LED |
| Resolution | 1920*1080 |
| Contrast Ratio | 400:1 |
| Brightness ( cd/m2 ) | 300 |
| View Angles ( H/V ) | 140/120 |
| Pixel Size ( HxV ) mm | 0.1989×0.1989 |
| Max. Color | 262K |
| MTBF ( Hrs. ) | 10,000 |
| Mechanical and Environment: | |
| Height | 2U Foldable |
| Rack Depth | 550 to 950mm ( cabinet front rail to rear rail ) |
| Mounting | Rack Mount with tilt adjustment |
| Construction | Metal Housing |
| Operating Temperature | 0 – 50 deg. C |
| Operating Humidity | 5% – 95% ( non -condensing ) |
| Anti-Vibration | 5 – 500 Hz / 1 Grms PTP |
| Anti-Shock | 15G / Peak ( 11 ms ) |

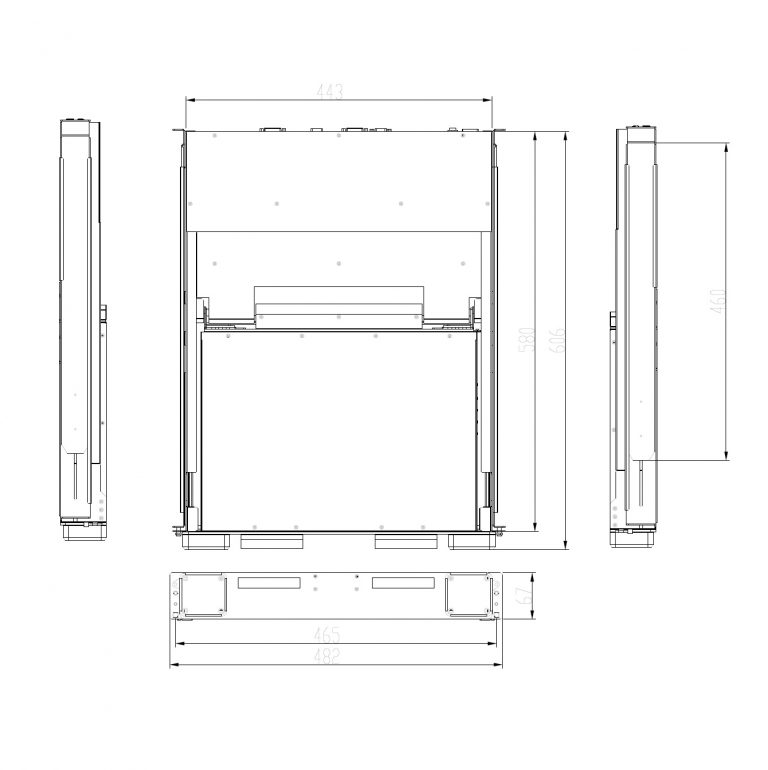

| Physical Dimension (WxHxD) | 443 x 67 x 580 (mm) |
| Packing Dimension (WxHxD) | 735 x 590 x215 (mm) |
| Net Weight / Gross Weight | 12.5 / 17 (KGs) |
| Certification and Approvals | CE / FCC / RoHs |

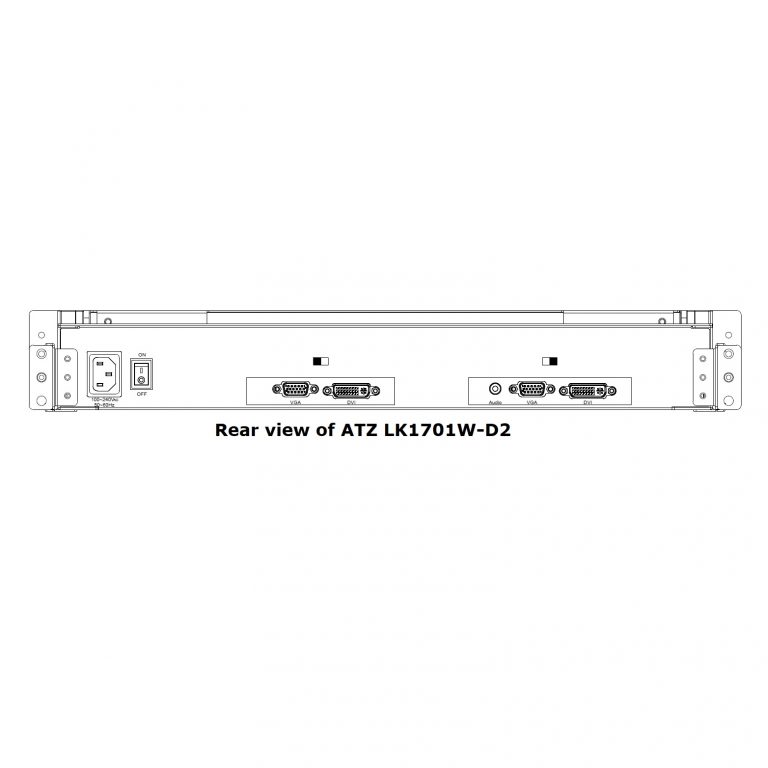

| Input Signals: | |
| DVI-D | Dual DVI-D 24Pin Connector (Female) |
| VGA | Dual D-SUB 15Pin Connector (Female) |
| Audio | 1x 3.5” Jack |
| Power Input | Standard IEC Inlet |
| Touch-USB ( option ) | Dual USB A Type connector |
| Touch-RS232 ( option ) | Dual D-SUB 9P connector ( Female ) |
| Power Specifications : | |
| AC Power Input | Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input |
| Wide Range DC Power Input ( option ) | Screw Type Terminal Block with internal |
