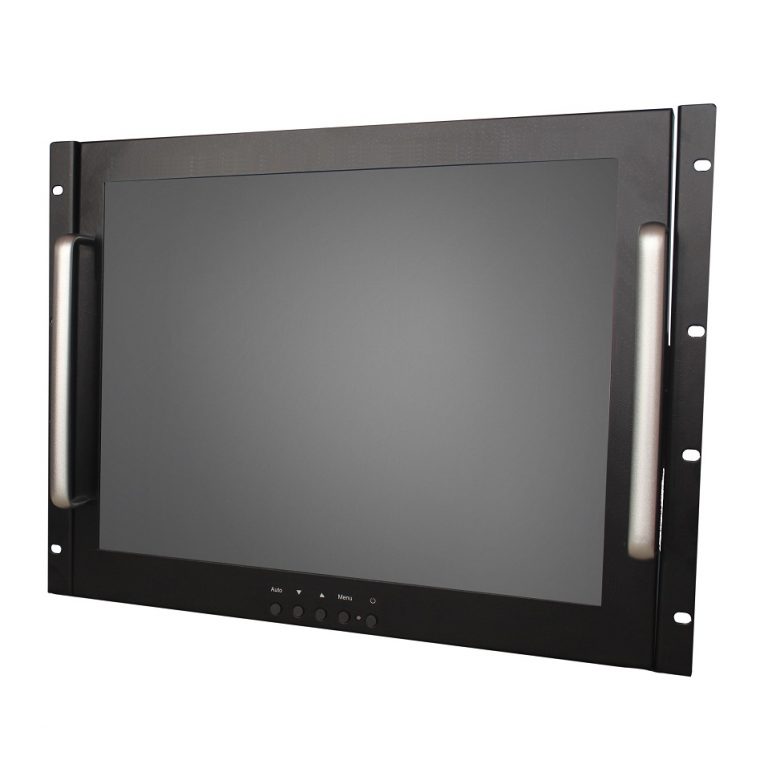

Description
Features:
- Compact 19 inch rack mountable with 7U height
- 15 inch LCD panel, support 1280 x 1024 resolution
- DVI-D, VGA, Audio input
- 90° tilt adjustment while mounted in rack: 45°~-45° ( V )
- Heavy duty steel chassis with hardness glass protect screen
- Front OSD control buttons to optimized display
- Build in 2x 2watts stereo speakers
Option:
- Composite video input
- HDMI or Display port input
- 3G / HD / SD-SDI broadcast grade input
- DC 9~36 V power input
- AR Hardness glass
- Touch screen
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 62 x 21 x 44 cm |
| User Controls Interface: | |
| Power ON / OFF via Front Button | |
| Power Mode Status LED indicator | |
| OSD ( On Screen Display ) Buttons | |
| LCD Characteristics : | |
| Screen Size | 15 inch |
| Backlight Type | LED |
| Resolution | 1280×1024 |
| Contrast Ratio | 700:1 |
| Brightness ( cd/m2 ) | 450 |
| View Angles ( H/V ) | 160/140 |
| Pixel Size ( HxV ) mm | 0.297×0.297 |
| Max. Color | 16.7M |
| MTBF ( Hrs. ) | 50,000 |
| Mechanical and Environment: | |
| Height | 7U |
| IP Protect | N/A |
| Mounting | VESA Mount and Rack Mount |
| Construction | Metal Housing |
| Operating Temperature | 0 – 50 deg. C |
| Operating Humidity | 5% – 95% ( non -condensing ) |
| Anti-Vibration | 5 – 500 Hz / 1 Grms PTP |
| Anti-Shock | 15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) | 480 x 311 x 60 (mm) |
| Packing Dimension (WxHxD) | 620 x 440 x 210 (mm) |
| Net Weight / Gross Weight | 7.5 / 10 (KGs) |
| Certification and Approvals | CE / FCC / RoHs |
| Input Signals: | |
| DVI-D | DVI-D 24Pin Connector (Female) |
| VGA | D-SUB 15Pin Connector (Female) |
| Audio | 3.5” Jack |
| Power Input | Standard IEC Inlet |
| Touch-USB ( option ) | USB A Type connector |
| Touch-RS232 ( option ) | D-SUB 9P connector ( Female ) |
| Power Specifications : | |
| AC Power Input | Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input |
| Wide Range DC Power Input ( option ) | Screw Type Terminal Block with internal
wide Range DC 9-36V power module |
