| User Controls Interface: |
| Power ON / OFF via Front Button |
| Power Mode Status LED indicator |
| OSD ( On Screen Display ) Buttons |
| LCD Characteristics : |
| Screen Size |
19 inch widescreen |
| Backlight Type |
LED |
| Resolution |
1280×1024 |
| Contrast Ratio |
1000:1 |
| Brightness ( cd/m2 ) |
350 |
| View Angles ( H/V ) |
170/160 |
| Pixel Size ( HxV ) mm |
0.294×0.294 |
| Max. Color |
16.7M |
| MTBF ( Hrs. ) |
50,000 |
| Mechanical and Environment: |
| Height |
8U |
| IP Protect |
N/A |
| Mounting |
VESA Mount and Rack Mount |
| Construction |
Metal Housing |
| Operating Temperature |
0 – 50 deg. C |
| Operating Humidity |
5% – 95% ( non -condensing ) |
| Anti-Vibration |
5 – 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
483 x 355 x 60 (mm) |
| Packing Dimension (WxHxD) |
620 x 480 x 210 (mm) |
| Net Weight / Gross Weight |
10 / 12.5 (KGs) |
| Certification and Approvals |
CE / FCC / RoHs |

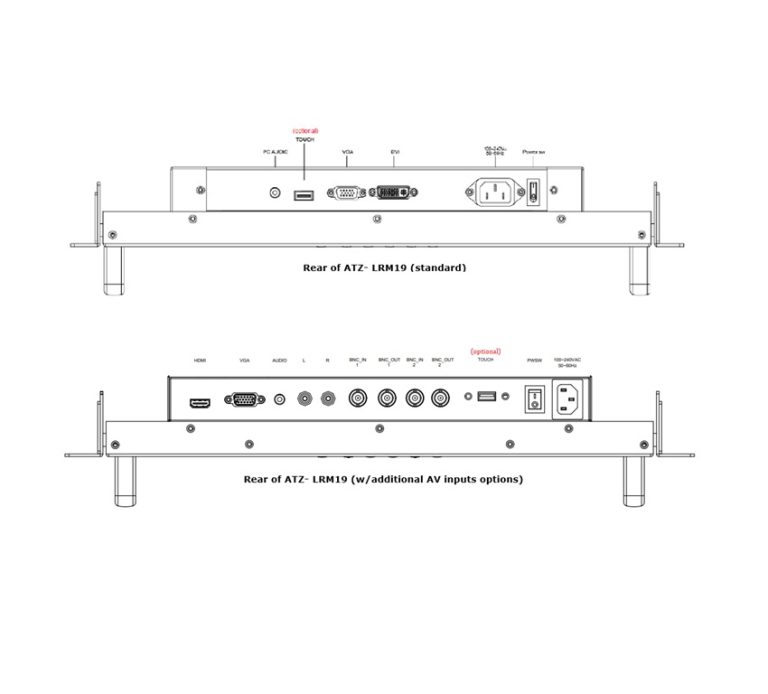

| Input Signals: |
| DVI-D |
DVI-D 24Pin Connector (Female) |
| VGA |
D-SUB 15Pin Connector (Female) |
| Audio |
3.5” Jack |
| Power Input |
Standard IEC Inlet |
| Touch-USB ( option ) |
USB A Type connector |
| Touch-RS232 ( option ) |
D-SUB 9P connector ( Female ) |
| Power Specifications : |
| AC Power Input |
Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input |
| Wide Range DC Power Input ( option ) |
Screw Type Terminal Block with internal
wide Range DC 9-36V power module |
