ATZ MO6.35MM-xxM

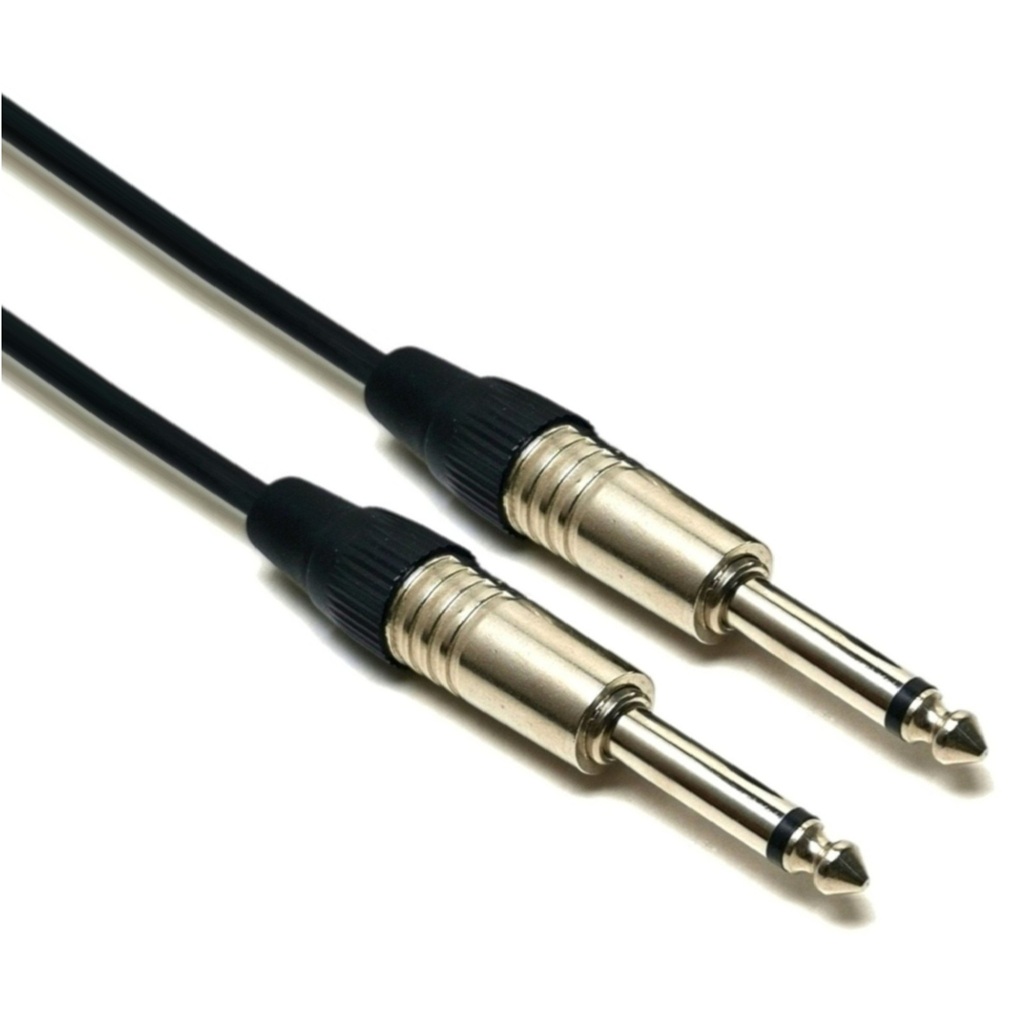

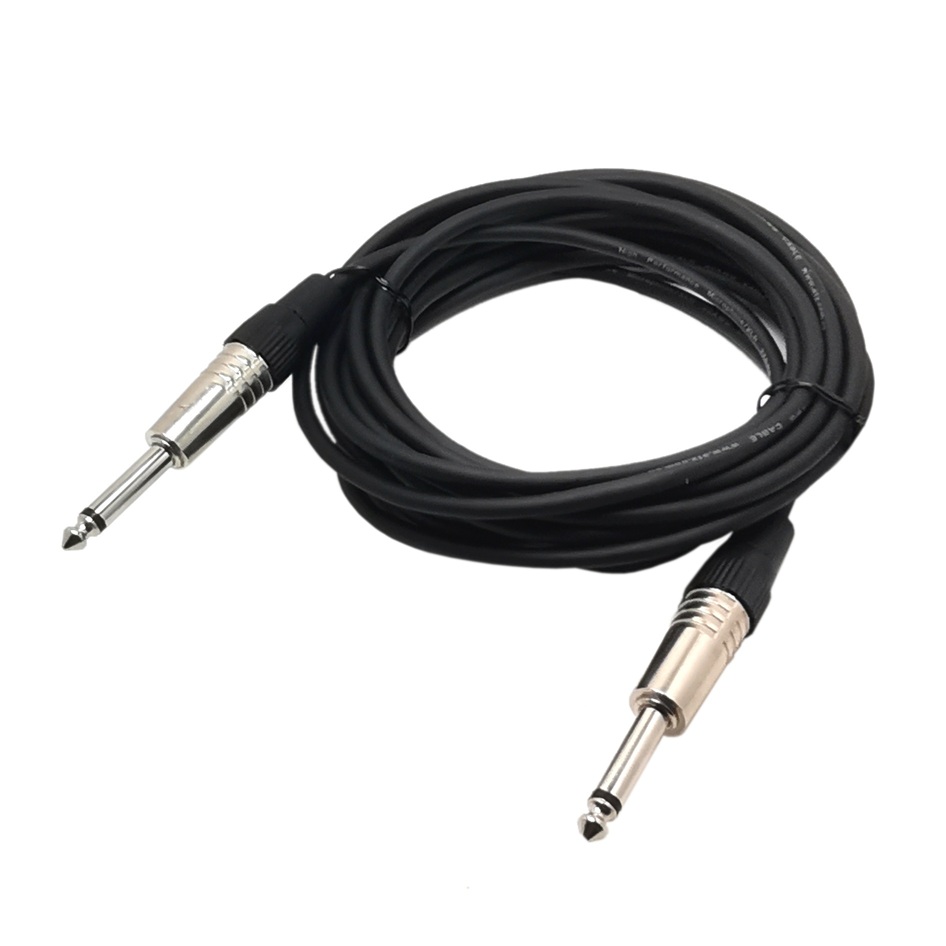

Mono 6.35mm Male to Male Audio cable (1M/2M/3M/5M/10M/15M/20M/25M/30M)
* Remarks:
Do contact us for other customised lengths

Compare
Category:

Description

Mono 6.35mm Male to Male Audio cable (1M/2M/3M/5M/10M/15M/20M/25M/30M)
* Remarks: Do contact us for other customised lengths

The 6.35mm (1/4″) Mono Male to Male cable – also known as a TS (Tip-Sleeve) cable – is a high-fidelity audio interconnect designed for professional-grade mono signal transmission.

Used to connect instrument cable to mono unbalanced-cable gear audio/musical device/equipment with 6.35mm audio interface.

Ideal for professional audio over long distance and in noisy environment.

Versatile design for use in professional audio, theatre, studio, stage, and broadcast environments.

This cable ensures robust connectivity between devices such as electric guitar, bass, mixers, audio interfaces, stage boxes/monitors, amplifiers, karaoke, home theatres and musical instruments.


Features:

  • Support mono unbalance setup for optimum audio performance
  • Support long cable run and noise rejection
  • Sends mono signal on Tip and Sleeve but with opposite polarity, allowing devices to cancel out noise
  • Shield surrounding centre conductors for maximum EMI / RFI noise rejection making the sound quality undisturbed by external signals
  • Gold plated contact with inner copper spiral shielding to reduce noise interference providing clear transmission and reduce loss of sound quality
  • Professional Gold-Plated Pins, anti-corrosion and oxidation resistance. With multiple plug-and-pull tests, this cable is perfect for your daily prolong usage
  • Premium materials and construction results in clear, high-definition sound output
  • Heavy-duty cable withstands stepping, heavy pressure, rodent chewing, and other external factors while continuing to function normally
  • Robust construction provides excellent flexibility and protection over long distance against harsh conditions and wear
Connector Type 1 6.35mm (1/4″) TS
Connector Type 2 6.35mm (1/4″) TS
Signal Type Mono Unbalance
Connector Plating Gold-plated Connector
Connector Gender Male to Male
Conductor Material Tinned Copper (TC)
Conductor Construction 17 / 0.16 ± 0.008 mm
Conductor Material Tinsel Wire
Conductor Construction 2 / 0.24 ± 0.008 mm
Conductor Stranded Diameter 0.98mm
Num of Conductor 2 C
Wire Gauge 22 AWG
Insulation Twisted Pair 60 + / – 2mm
Insulation Material HDPE
Insulation Thickness 0.22mm
Insulation Diameter 1.4 ± 0.008 mm
Filler Material Cotton Thread
Drain Material Tinned Copper (TC)
Drain Construction 17 / 0.16 ± 0.008 mm
Tape Material Aluminium Mylar Tape
Tape Over Lap 25% Min
Spirally Material Tinned Copper (TC)
Spirally Construction 60 / 0.10 ± 0.008 mm
Jacket PVC
Jacket Thickness 0.6 mm
Jacket OD 6.0 ± 0.15 mm
Colour Black
