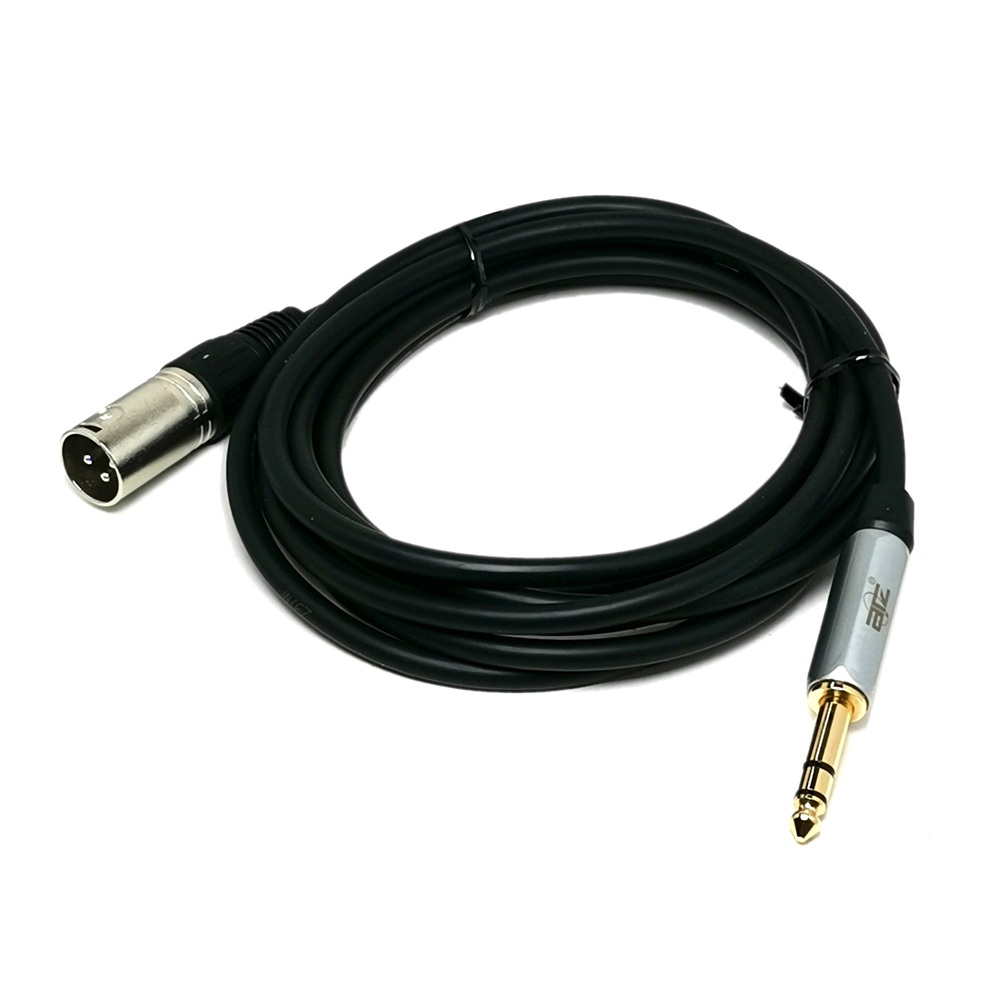

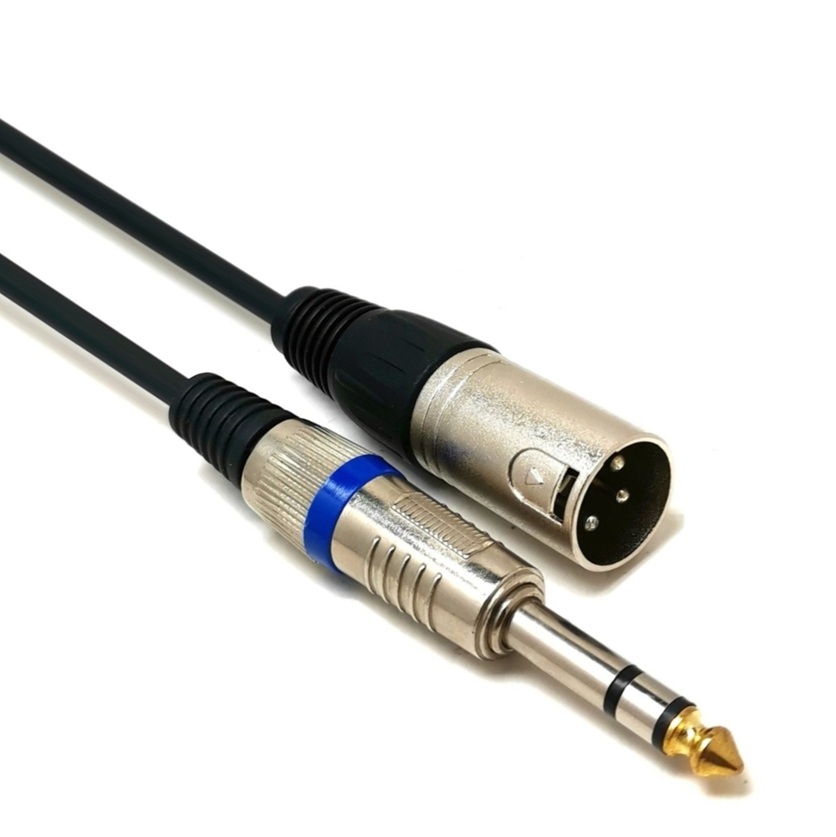

6.35mm Stereo Male to XLR Male Cable (1M/2M/3M/5M/10M)
* Remarks: Do contact us for other customised lengths
Description
6.35mm Stereo Male to XLR Male Cable (1M/2M/3M/5M/10M)
* Remarks: Do contact us for other customised lengths
______________________________________________________________________________

This premium 6.35mm (1/4″) Stereo Male to XLR 3-Pin Male or Female cable is used for clean, balanced audio link transmission between professional gear for home, studio, PA and stage environment.
It uses a 6.35mm TRS (Tip-Ring-Sleeve) plug to a either XLR 3-Pin Male or Female Industry-standard connector for supporting a professional-grade signal transmission between audio equipment.
Commonly uses to connecting a audio interfaces, mixer to powered monitors, speaker or stage boxes. Ideal for studio patching into an audio interface, or routing signals across a stage, this cable ensures pristine sound with robust build quality for demanding environments.
Features:
- Professional industry standard connector
- Stereo TRS (Tip-Ring-Sleeve) to XLR 3-pin configuration for optimum audio performance
- Shield surrounding centre conductors for maximum EMI / RFI noise rejection making the sound quality undisturbed by external signals
- Gold plated 6.35mm connector with inner copper spiral shielding to reduce noise interference providing clear transmission and reduce loss of sound quality
- Professional Gold-Plated Pins, anti-corrosion and oxidation resistance. With multiple plug-and-pull tests, this cable is perfect for your daily prolong usage
- Premium materials and durable construction results in clear, high-definition sound output
- Heavy-duty cable withstands stepping, heavy pressure, rodent chewing, and other external factors while continuing to function normally
- Robust construction provides excellent flexibility and protection over long distance against harsh conditions and wear

| Connector Type 1 | 6.35mm (1/4″) TRS | |
| Connector Plating | Gold Plated Connector | |
| Connector Type 2 | XLR 3-Pin Male | XLR 3-Pin Female |
| Connector Gender | Male to Male | Male to Female |
| Connector Plating | Silver Plated Connector | |
| Signal Type | Stereo Balance | |
| Conductor Material | Tinned Copper (TC) | |
| Conductor Construction | 17 / 0.16 ± 0.008 mm | |
| Conductor Material | Tinsel Wire | |
| Conductor Construction | 2 / 0.24 ± 0.008 mm | |
| Conductor Stranded Diameter | 0.98mm | |
| Num of Conductor | 2 C | |
| Wire Gauge | 22 AWG | |
| Insulation | Twisted Pair 60 + / – 2mm | |
| Insulation Material | HDPE | |
| Insulation Thickness | 0.22mm | |
| Insulation Diameter | 1.4 ± 0.008 mm | |
| Filler Material | Cotton Thread | |
| Drain Material | Tinned Copper (TC) | |
| Drain Construction | 17 / 0.16 ± 0.008 mm | |
| Tape Material | Aluminium Mylar Tape | |
| Tape Over Lap | 25% Min | |
| Spirally Material | Tinned Copper (TC) | |
| Spirally Construction | 60 / 0.10 ± 0.008 mm | |
| Jacket | PVC | |
| Jacket Thickness | 0.6 mm | |
| Jacket OD | 6.0 ± 0.15 mm | |
| Colour | Black | |
