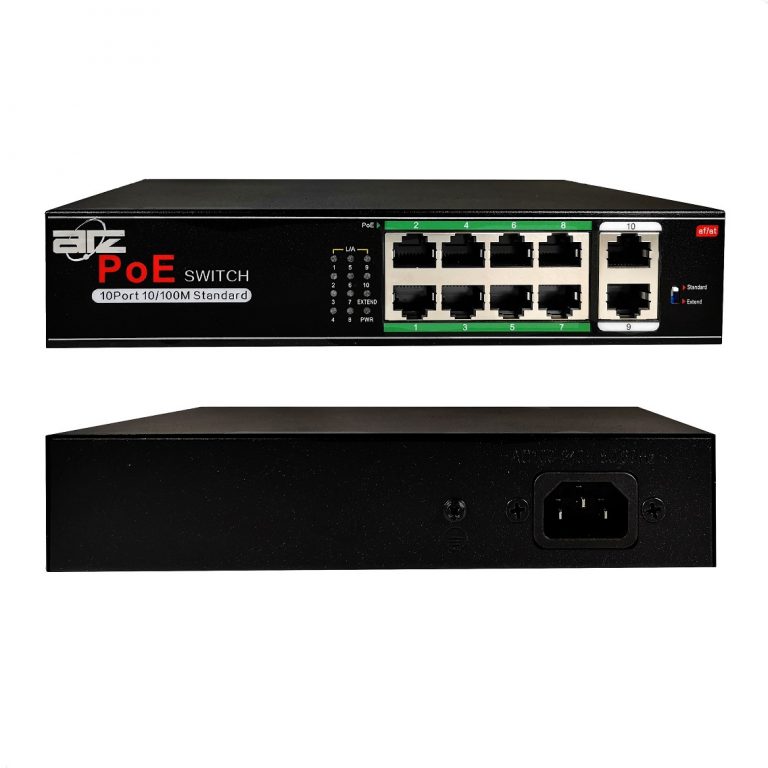

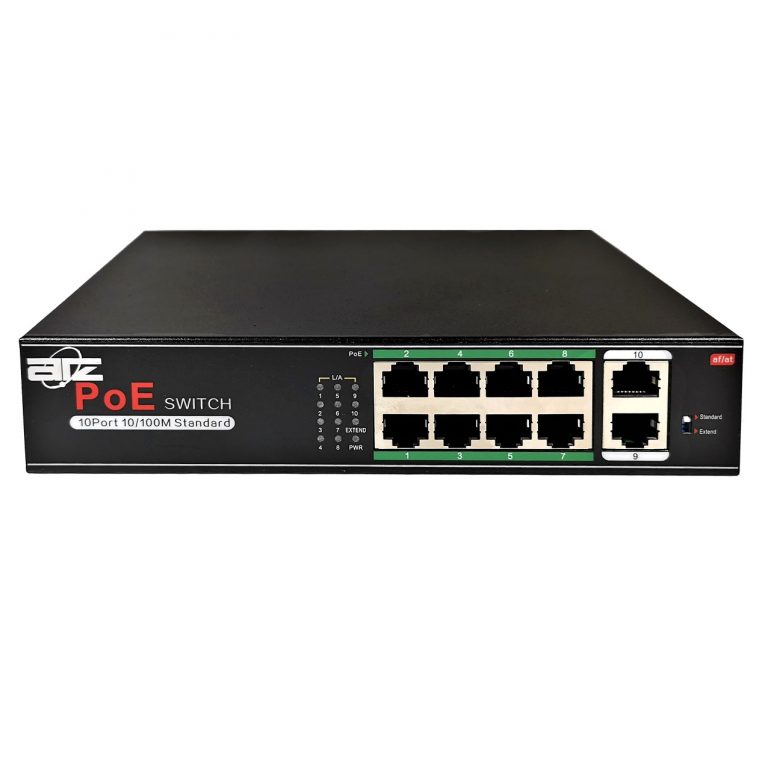

ATZ POE108PHL supports data and power transmission through CAT.5 cables at the same time. And 8+2 port support fast connecting at 10/100Mbps. It also supports long transmission distance at 250 meters both for power and data, therefore, it saves cost for the project that requiring long distance transmission through extender, fiber and coaxial cable etc. It reduces line losses effectively though 4-core cable supplying power same time.

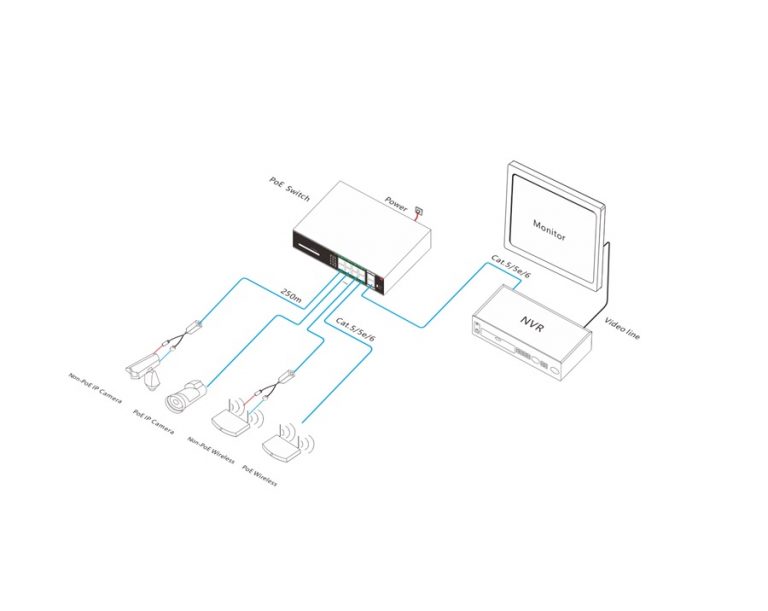

Cost effective ATZ POE-SW108PHL provide a simple network for wireless AP, business and home that are based on the installation of IP Camera. These devices away from electrical outlets are very suitable for hanging on the wall or ceiling. PoE eliminates the hassle for these devices, specially the electrical outlets. Connect the AC power connection to make those difficult device more flexible, and the installation cost minimization.
Features:
- Supply power to wireless AP and IP Camera through CAT 5 cable (Must use with DC24V to 12V non-standard PoE splitter cable)
- 1-10 Port: 10/100M auto sensing RJ45 port.
- Support port auto-flip (Auto MDI/ MDIX)
- Anti-thunder function for uplink port (Port 9-10 anti-thunder function reaches level 2)
- Total PoE Power: 120W (Port 1 – 8 )
- Max PoE power output is 30W.
- Support long transmission distance at 250 meters
- Switch Mode: Mode 1: Port 1-10: 10/100M auto-sensing. @100 meters; Mode 2: Port 1-8: 10M @ 250 meters; Port 9-10: 100M @ 100 meters
- Store and forward
- Fanless design, natural cooling. Mini size.
