Features
- Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T /1000base-T
- Hot-pluggable SFP footprint
- Compact RJ-45 connector assembly
- RoHS compliant and lead-free
- Single +3.3V power supply
- 10 Gigabit Ethernet over Cat 6a cable
- Ambient Operating temperature: 0°C to +65°C
Description

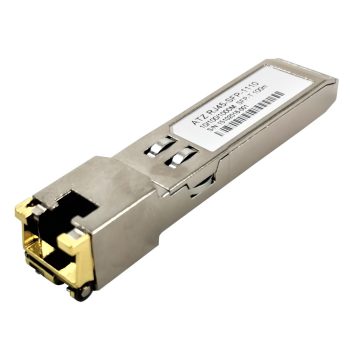

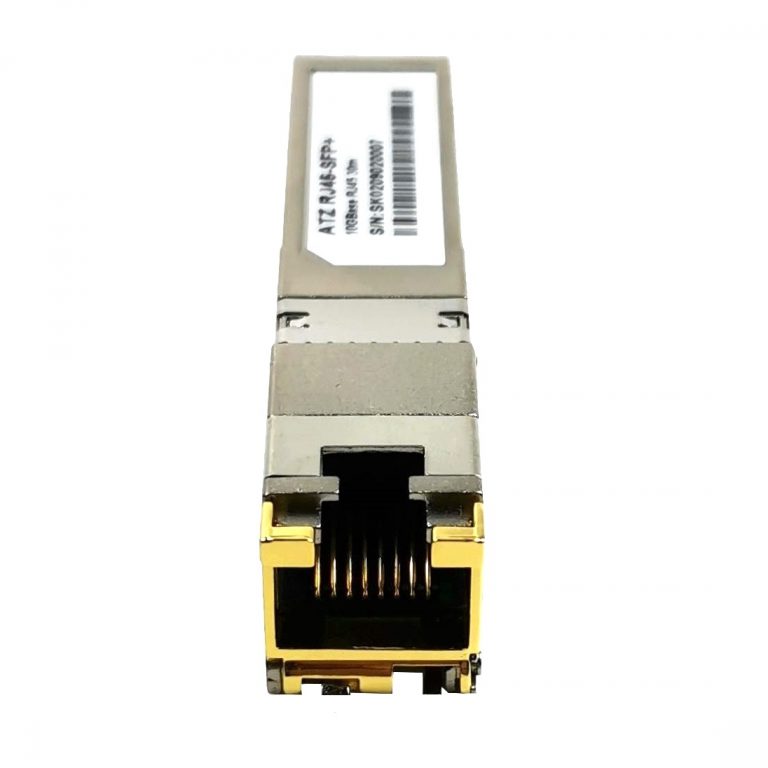

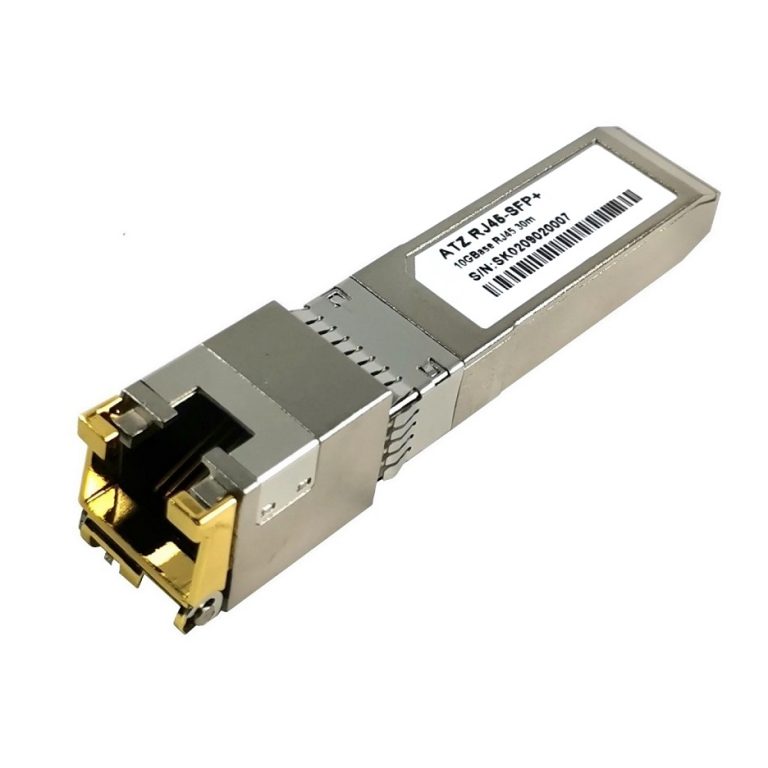

ATZ RJ45-SFP+ 10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T/5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3.
SFP+-10GBASE-T uses the SFP’s RX_LOS pin for link indication. If pull up SFP’s TX_DISABLE pin, PHY IC be reset.
