Description

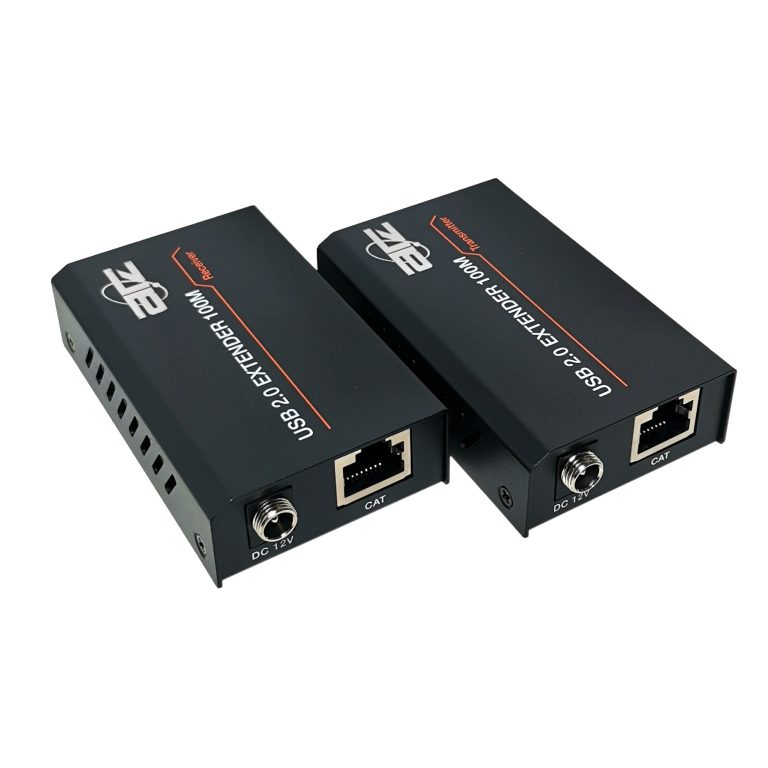

The USB 2.0 Extender can extend USB signal up to 100 meters / 328ft via Cat 5e/6 cable. In transmitter, the USB-B port is connected a PC. In receiver, you can connect a device with USB port at the two USB ports such as U disk or printer, etc. Transmitter and Receiver support PoC (Power over Cable) function. The product can be widely used long distance signal transmission between a PC and USB device. Simple plug and play, no drive and setting installation required.
Features:
- Supports USB 2.0 protocol, transmission rate up to 480Mbps
- Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable
- Supports one USB-B port input in transmitter
- Supports two USB 2.0 ports output in receiver
- Supports PoC function, it means that either transmitter or receiver is connected powered supply by 12V/1A power adapter, the other doesn’t need power supply.
- Simple plug and play, no drive and setting installation required
- Compact design for easy and flexible installation
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 21 x 12 x 8 cm |
| Technical | |
| USB protocol | USB 2.0 |
| Transmission rate | Up to 480Mbps |
| Transmission distance | 100M (328ft) |
| ESD Protection | Human-body Model：±8kV (Air-gap discharge) ,
±4kV (Contact discharge) |
| Connections | |

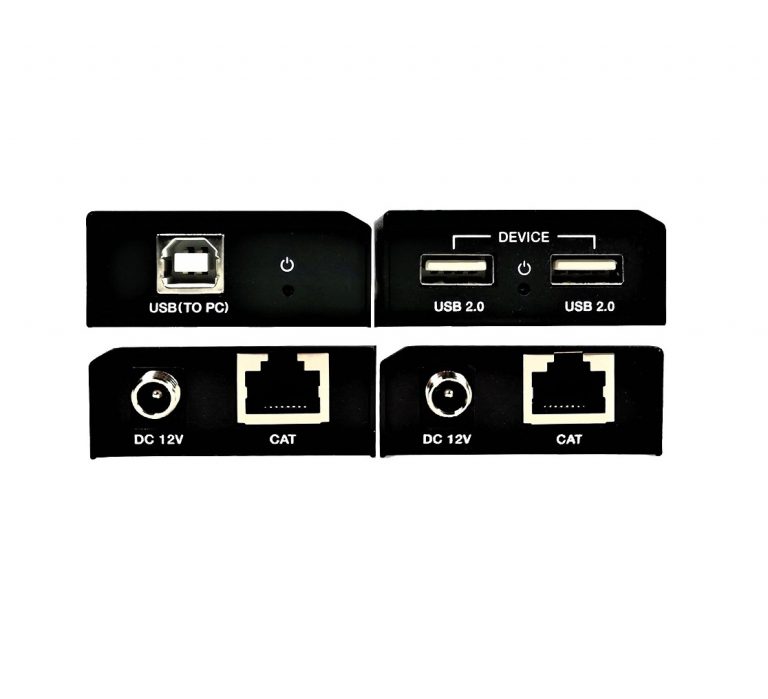

| Transmitter | Input port: 1×USB [USB-B, female]
Output port: 1×CAT [RJ45, female] |
| Receiver | Input port: 1×CAT [RJ45, female]
Output port: 2×USB [USB-A, female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H) |
| Weight | Transmitter / Receiver: 100g |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption | Transmitter: 1.3W, Receiver: 2.3W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
